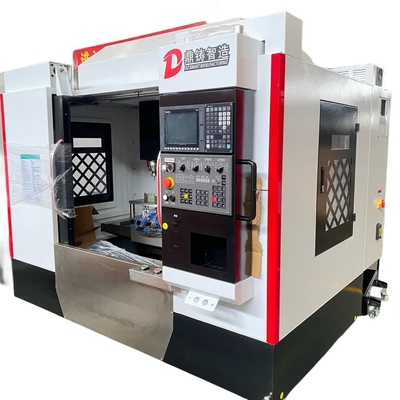

Automated CNC Engraving And Milling Machine For Burrs Removal From Castings Surface
| Brand Name: | DZ |
| Model Number: | XYT-DK540-4 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Payment Terms: | L/C, T/T, Western Union |
Automated CNC Engraving Milling Machine
,Burrs Removal CNC Milling Machine
,Castings Surface CNC Engraving Machine
An Automated Operating System Peeling Machine For Efficient Removal Of Burrs From The Surface Of Castings
Product Description:
A die casting Peeling Machine is an automated mechanical device specifically designed to remove burrs, bumps, irregular edges and surface defects from die castings. The die casting passes through the cutting tool on the workbench, thereby removing unwanted material and making the surface smoother.
Features:
- Automation: The die casting peeling machine is an automated equipment that can process a large number of die casting parts in a short time to improve production efficiency.
Consistency: It provides consistent deburring and surface treatment, reducing the uncertainty of manual operation.
Cost savings: By reducing scrap rates and manual operation, Peeling Machine can help reduce production costs.
Accuracy: The peeling machine enables highly accurate surface treatment, ensuring the geometry and size of the die cast.
Technical Parameters:
| Technical Parameters | |
| Peeling Machine (New) | Whole machine weight(about): 3500kg |
| Workbench size | 1050*420mm |
| T-groove(number*slot*width) | 3-18*125mm |
| Maximum load(acerage distribution of workbench) | 350kg |
| Three axis stroke | 500*400*400mm |
| Spindle nose to table surface | 150-500mm |
| Distance between the center of the spindle taper(model/installation size) | 450mm |
| Spindle taper(model/installation size) | electric spindleER20/25/35 chuck form |
| Spindle speed |
standard configuration:18000rpm optional configuration:24000rpm |
| Tool Number | No tool magazine:4/electric spindle |
| Maximum tool diameter available | 2/4/6/8/10/12/13mm |
| Three axis fast feed speed | 48/48/48m |
| Feed rate | 0-10000mm |
| Precision | ±0.005/300mm |
| Repetition is defined as precision | ±0.005/300mm |
| Spindle drive motor | 4*4.0kw/4.5.5kw |
| Land area(long*width*high) | 2300*2400*2400mm |
| Whole machine weight(about) | 3500kg |
Applications:
Focus on bathroom, hardware products industry die casting, casting surface peeling processing.
Support and Services:
We provide technical support and service for Peeling Machine (New). Our technical support team is always available to answer your questions and provide the utmost level of support.
The service we provide includes:
- Installation and setup assistance
- Troubleshooting and repair
- Software updates and upgrades
- User manuals and guides
- Technical assistance via phone, email, or chat
We offer full-service maintenance and repair for Peeling Machine (New). We are dedicated to making sure your machine is running smoothly and efficiently.
If you have any questions about our technical support and service for Peeling Machine (New), please don't hesitate to contact us.
FAQ:
- Q: What is the brand name of this peeling machine?
- A: The brand name of this peeling machine is DZ.
- Q: What is the model number of this peeling machine?
- A: The model number of this peeling machine is XYT-DK540-4.
- Q: Where is this peeling machine made?
- A: This peeling machine is made in China.
- Q: What are the features of this peeling machine?
- A: This peeling machine has an auto temperature control system and a stainless steel body.
