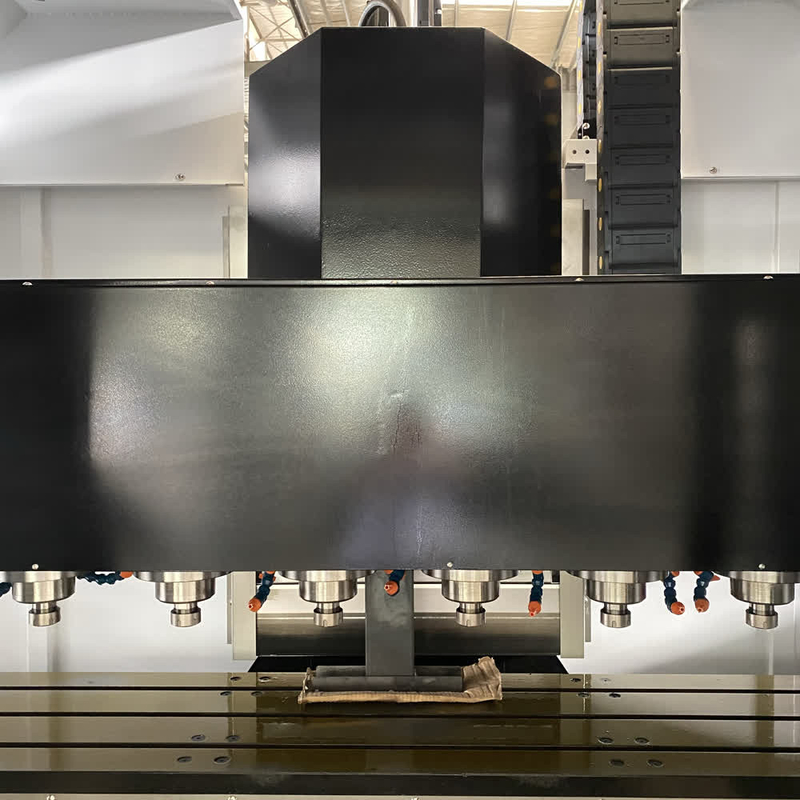

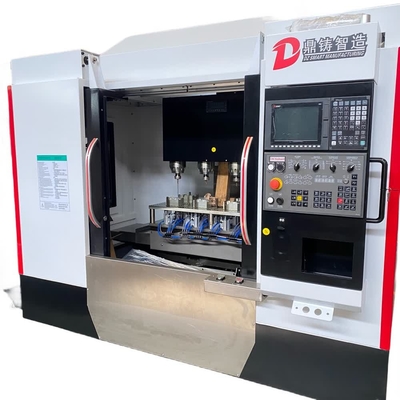

Automatic CNC Engraving Milling Machine for Die Casting Burr Removal
| Brand Name: | DZ |
| Model Number: | XYT-DK540-4 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Payment Terms: | L/C, T/T, Western Union |
Die Casting CNC Engraving Machine
,Eliminate Burrs CNC Engraving Machine
,Automatic CNC Milling Machine
Improve Product Quality: Upgrade Your Die Casting Finish To Eliminate Burrs.
Product Description:
It is suitable for peeling operations in bathrooms, kitchens, and other places. It is equipped with the latest technology, providing high-precision peeling performance and a long-term service life.
Features:
- 自动化设备,可以在短时间内处理大量压铸件,提高生产效率.
- 一致性:提供一致的去毛刺和表面处理,减少了人工操作的不确定性.
- 节省成本:减少了废品率和人工操作,可以帮助降低生产成本.
- 精度:可实现高度精确的表面处理,确保压铸件的几何形状和尺寸.
Technical Parameters:
| Product Name | Technical Parameters |
| Peeling Machine (New) | Whole machine weight(about): 3500kg |
| Workbench size | 1050*420mm |
| T-groove(number*slot*width) | 3-18*125mm |
| Maximum load(acerage distribution of workbench) | 350kg |
| Three axis stroke | 500*400*400mm |
| Spindle nose to table surface | 150-500mm |
| Distance between the center of the spindle taper(model/installation size) | 450mm |
| Spindle taper(model/installation size) | electric spindleER20/25/35 chuck form |
| Spindle speed |
standard configuration:18000rpm optional configuration:24000rpm |
| Tool Number | No tool magazine:4/electric spindle |
| Maximum tool diameter available | 2/4/6/8/10/12/13mm |
| Three axis fast feed speed | 48/48/48m |
| Feed rate | 0-10000mm |
| Precision | ±0.005/300mm |
| Repetition is defined as precision | ±0.005/300mm |
| Spindle drive motor | 4*4.0kw/4.5.5kw |
| Land area(long*width*high) | 2300*2400*2400mm |
| Whole machine weight(about) | 3500kg |
Applications:
Focus on bathroom, hardware products industry die casting, casting surface peeling processing
Support and Services:
We provide full technical support and service for our new Peeling Machine. Our team of highly experienced technical advisors is available to answer any questions you might have about the product. We also provide a comprehensive online user manual and a series of instructional videos to help you get the most out of your Peeling Machine. Additionally, we offer a one-year warranty for parts and labor, as well as extended warranties for an additional fee. If you ever encounter any technical issues with your Peeling Machine, we’re here to help!
FAQ:
A1: The brand name of the Peeling Machine (New) is DZ.
Q2: What is the model number of the Peeling Machine (New)?
A2: The model number of the Peeling Machine (New) is XYT-DK540-4.
Q3: Where is the Peeling Machine (New) manufactured?
A3: The Peeling Machine (New) is manufactured in China.
Q4: What features does the Peeling Machine (New) have?
A4: The Peeling Machine (New) features an efficient and hygienic design, as well as adjustable peeling thickness. It is also equipped with a safety device for added protection.
Q5: What is the power consumption of the Peeling Machine (New)?
A5: The power consumption of the Peeling Machine (New) is 0.75kW.
