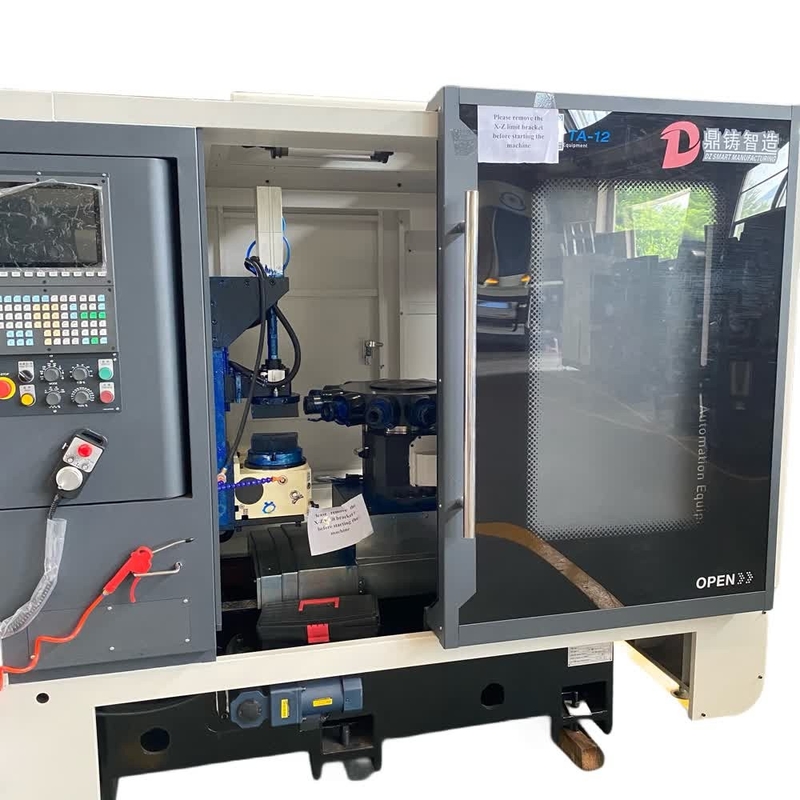

Precision Tapping and Drilling Machine For Metal Workpieces In Valve Industry
| Brand Name: | DZ |
| Model Number: | TA-12 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Packaging Details: | wood |
Detail Information
Place of Origin:
CHINA
Certification:
CE
Spindle Turret Tool Changing Time:
0.8s/180°
Rotating Fourth Axis:
YT200R
Tool Changing Motor:
750W
Spindle Revolution:
0-3000rpm
Lifting Z-acis Max. Travel (screw):
300mm
Dimension：L*W*H:
2300×1600×1900mm
Machine Net Weight KG:
3500KG
Max. Tapping(copper Parts):
50×3mm
Delivery Time:
20 work days
Supply Ability:
3 sets per month
Highlight:
Precision Tapping and Drilling Machine
,Metal Workpieces Drilling Machine
,Valve Industry Tapping Drilling Machine
Product Description
Precision Drilling And Tapping Machine For Metal Workpieces,Use In Valve Manufacturing Industry
Product Description:
Features:
- It has a certain degree of flexibility and can adapt to the requirements of a certain range of product specifications and varieties.
- Simple structure and low cost.
- High production efficiency and low energy consumption.
Technical Parameters:
| Parameter | Value |
|---|---|
| Computer-Numerical-Control Drilling Machine | Automated Tapping and Drilling Machine |
| CNC Tapping Machine | BT40 Spindle Taper |
| Machine net weight | 3500KG |
| Drilling Capacity (Copper Parts) through-hole | external diameter 60mm |

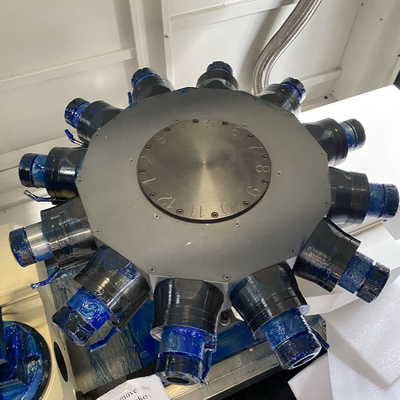

| Rotary Turret | 12 Axis |
| Tool Changing Motor | 750W |
| Base X-acis Max. travel (screw) | 450mm |
| X/Y/Z axis Max. Speed | 30m/min |
| X/Y/Z axis repeat positioning accuracy | 0.008mm |
| Rotating fourth axis | YT200R |
| Servo spindle motor power | 5.5KW |
| Lifting Z-acis Max. travel (screw) | 300mm |
| Saddle Y-axis Max. travel(screw) | 500mm |
| Spindle revolution | 0-3000rpm |
| Spindle taper | BT40 |
| Max. tapping (copper parts) | 50×3mm |
| Spindle turret tool changing time | 0.8s/180° |
| Working table size | 300*300mm |
| Dimension:L×W×H | 2300×1600×1900mm |
Applications:
Valve manufacturing industry, plumbing hardware industry, auto motorcycle parts, non-ferrous metal die-casting industry, electronics and parts processing and other industries processing thread holes.
Packing and Shipping:
Packaging and Shipping for CNC Tapping and Drilling Machine (New)
This CNC Tapping and Drilling Machine (New) will be packaged and shipped in a secure and safe manner to ensure it reaches you in perfect condition.
We use durable, high-quality packaging material to protect the machine from damage during shipping. Prior to shipping, the machine is inspected to ensure it is in perfect working condition.
We offer both domestic and international shipping. Domestic orders are usually shipped within 1-2 business days. International orders take about 5-10 business days depending on the destination.
We also offer insured shipping for both domestic and international orders. If you opt for this service, we will cover any damages or losses that occur during the shipping process.
FAQ:
- Q: What is the Brand Name of CNC Tapping and Drilling Machine?
- A: The Brand Name of CNC Tapping and Drilling Machine is DZ.
- Q: What is the Model Number of CNC Tapping and Drilling Machine?
- A: The Model Number of CNC Tapping and Drilling Machine is TA-12.
- Q: Where is the Place of Origin of CNC Tapping and Drilling Machine?
- A: The Place of Origin of CNC Tapping and Drilling Machine is China.
- Q: What are the features of CNC Tapping and Drilling Machine?
- A: CNC Tapping and Drilling Machine features high precision, fast speed, long service life, and easy to operate.
- Q: What materials can CNC Tapping and Drilling Machine process?
- A: CNC Tapping and Drilling Machine can process various kinds of materials such as metal, plastic, wood, etc.
