Versatile Thread Tapping and Drilling Machine For Industrial Applications

Product Details:
Place of Origin: CHINA
Brand Name: DZ
Certification: CE
Model Number: TA-12
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wood
Delivery Time: 20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3 sets per month

Detail Information

Drilling Capacity (copper Parts)through-hole: 60mm Base X-acis Max. Travel (screw): 450mm
Machine Net Weight KG: 3500KG Spindle Taper: BT40
Lifting Z-acis Max. Travel (screw): 300mm Working Table Size: 300*300mm
Rotating Fourth Axis: YT200R Servo Spindle Motor Power: 5.5KW
High Light:

Thread Tapping and Drilling Machine

,

Industrial Tapping and Drilling Machine

Product Description

Product Description:

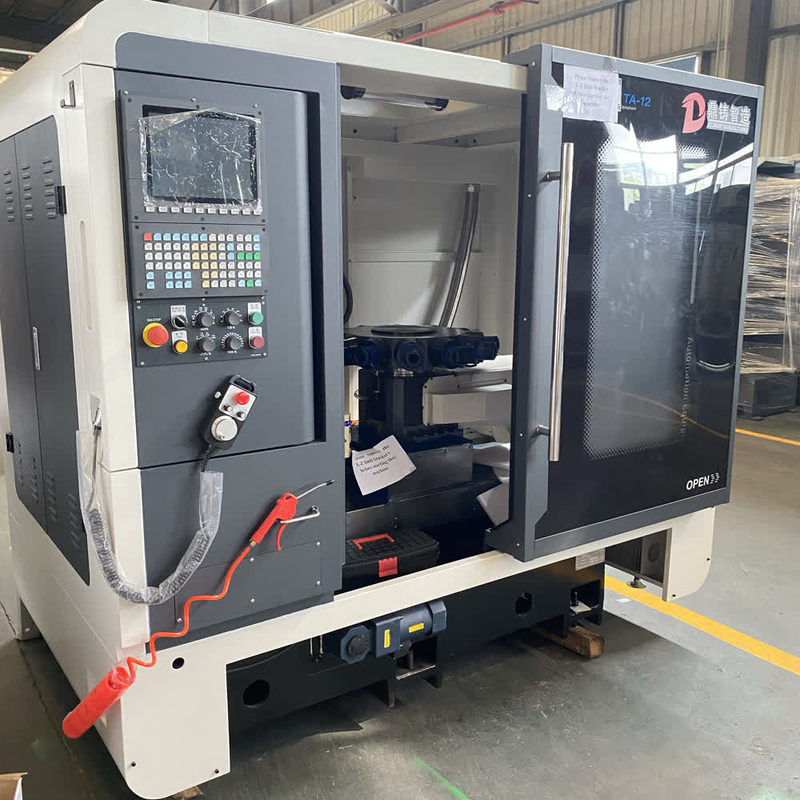

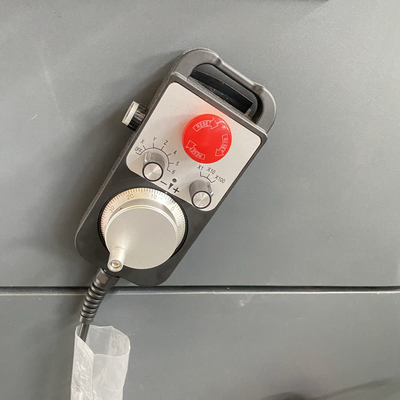

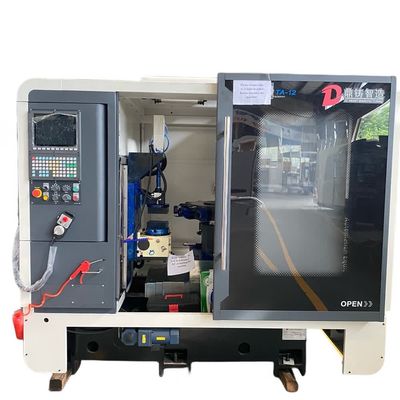

Versatile Thread Tapping and Drilling Machine For Industrial Applications 0Versatile Thread Tapping and Drilling Machine For Industrial Applications 1Versatile Thread Tapping and Drilling Machine For Industrial Applications 2Versatile Thread Tapping and Drilling Machine For Industrial Applications 3Versatile Thread Tapping and Drilling Machine For Industrial Applications 4



Features:

-It has a certain degree of flexibility and can adapt to the requirements of a certain range of product specifications and varieties.

-Simple structure and low cost.

-High production efficiency and low energy consumption.

Technical Parameters:

Parameter Value
Computer-Numerical-Control Drilling Machine Automated Tapping and Drilling Machine
CNC Tapping Machine BT40 Spindle Taper
Machine net weight 3500KG
Drilling Capacity (Copper Parts) through-hole external diameter 60mm
Rotary Turret 12 Axis
Tool Changing Motor 750W
Base X-acis Max. travel (screw) 450mm
X/Y/Z axis Max. Speed 30m/min
X/Y/Z axis repeat positioning accuracy 0.008mm
Rotating fourth axis YT200R
Servo spindle motor power 5.5KW
Lifting Z-acis Max. travel (screw) 300mm
Saddle Y-axis Max. travel(screw) 500mm
Spindle revolution 0-3000rpm
Spindle taper BT40
Max. tapping (copper parts) 50×3mm
Spindle turret tool changing time 0.8s/180°
Working table size 300*300mm
Dimension:L×W×H 2300×1600×1900mm

Applications:

Valve manufacturing industry, plumbing hardware industry, auto motorcycle parts, non-ferrous metal die-casting industry, electronics and parts processing and other industries processing thread holes.



Packing and Shipping:

Packaging and Shipping for CNC Tapping and Drilling Machine (New) shall adhere to the following:

  • The CNC Tapping and Drilling Machine (New) shall be packaged in a cardboard box or other suitable material, with cushioning material to prevent any damage during shipping.
  • The box shall have adequate labeling, including a product identification label.
  • The CNC Tapping and Drilling Machine (New) shall be shipped by a reliable carrier.
  • The shipping container shall be marked with the words "Fragile" and "Handle with Care".
  • Any additional accessories or parts shall also be packaged and shipped in the same manner.


FAQ:

Q1: What is the Brand Name of the new CNC Tapping and Drilling Machine?
A1: The Brand Name of the new CNC Tapping and Drilling Machine is DZ.
Q2: What is the Model Number of the new CNC Tapping and Drilling Machine?
A2: The Model Number of the new CNC Tapping and Drilling Machine is TA-12.
Q3: Where is the new CNC Tapping and Drilling Machine made?
A3: The new CNC Tapping and Drilling Machine is made in China.
Q4: Does the new CNC Tapping and Drilling Machine have any safety features?
A4: Yes, the new CNC Tapping and Drilling Machine has multiple safety features, such as an emergency stop button and overload protection.
Q5: How much does the new CNC Tapping and Drilling Machine cost?
A5: The cost of the new CNC Tapping and Drilling Machine depends on the features and specifications required.
