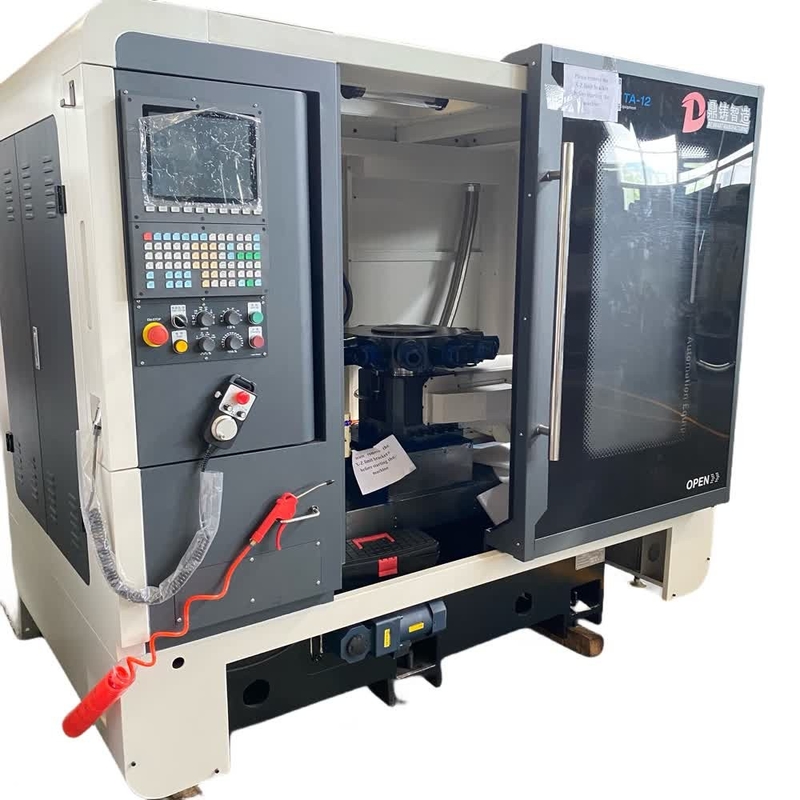

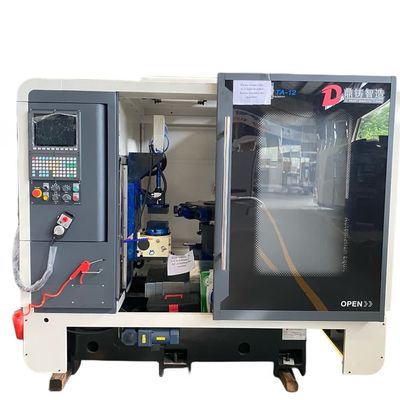

Name: High Speed Drill Press and Tapping Machine Combo for Manufacturing
Brand: Xiamen DingZhu Intelligent Equipment Co.,Ltd
SKU: TA-12
Availability: InStock

Brand Name:	DZ
Model Number:	TA-12
MOQ:	1 set
Price:	Negotiable
Packaging Details:	wood
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Base X-acis Max. Travel (screw):

450mm

X/Y/Z Axis Max. Speed:

30m/min

Spindle Turret Tool Changing Time:

0.8s/180°

X/Y/Z Axis Repeat Positioning Accuracy:

0.008mm

Drilling Capacity (copper Parts)through-hole:

60mm

Saddle Y-acis Max. Travel (screw):

500mm

Rotating Fourth Axis:

YT200R

Max. Tapping(copper Parts):

50×3mm

Supply Ability:

3 sets per month

Highlight:

Drill Press and Tapping Machine

High Speed Tapping Machine

Product Description

Product Description:

High Speed Drill Press and Tapping Machine Combo for Manufacturing 0

Features:

It has a certain degree of flexibility and can adapt to the requirements of a certain range of product specifications and varieties.
Simple structure and low cost.
High production efficiency and low energy consumption.

Technical Parameters:

Parameter	Value
Computer-Numerical-Control Drilling Machine	Automated Tapping and Drilling Machine
CNC Tapping Machine	BT40 Spindle Taper
Machine net weight	3500KG
Drilling Capacity (Copper Parts) through-hole	external diameter 60mm

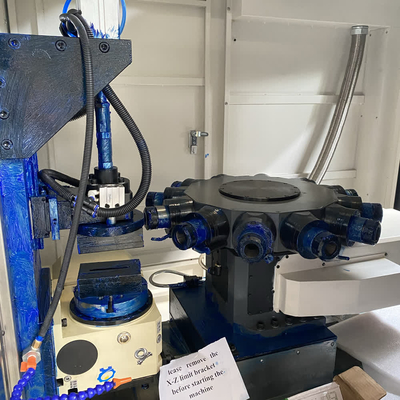

Rotary Turret	12 Axis
Tool Changing Motor	750W
Base X-acis Max. travel (screw)	450mm
X/Y/Z axis Max. Speed	30m/min
X/Y/Z axis repeat positioning accuracy	0.008mm
Rotating fourth axis	YT200R
Servo spindle motor power	5.5KW
Lifting Z-acis Max. travel (screw)	300mm
Saddle Y-axis Max. travel(screw)	500mm
Spindle revolution	0-3000rpm
Spindle taper	BT40
Max. tapping (copper parts)	50×3mm
Spindle turret tool changing time	0.8s/180°
Working table size	300*300mm
Dimension:L×W×H	2300×1600×1900mm

Applications:

Valve manufacturing industry, plumbing hardware industry, auto motorcycle parts, non-ferrous metal die-casting industry, electronics and parts processing and other industries processing thread holes.

Packing and Shipping:

Packing and shipping the CNC Tapping and Drilling Machine (New) requires the following steps:

Inspect the product for any damage or missing parts.
Ensure all components are secured within the packaging.
Securely attach the shipping label to the outside of the package.
Place the package in a shipping container.
Ship the package to the intended destination.

FAQ:

Q1: What is the brand name and model number of this CNC Tapping and Drilling Machine (New) product?: A1: The brand name is DZ and the model number is TA-12.
Q2: Where is this CNC Tapping and Drilling Machine (New) product made?: A2: This product is Made in China.
Q3: What is the size of this CNC Tapping and Drilling Machine (New) product?: A3: The size of this product varies depending on the model.
Q4: What materials can this CNC Tapping and Drilling Machine (New) product handle?: A4: This product can handle various materials including aluminum, steel, and plastic.
