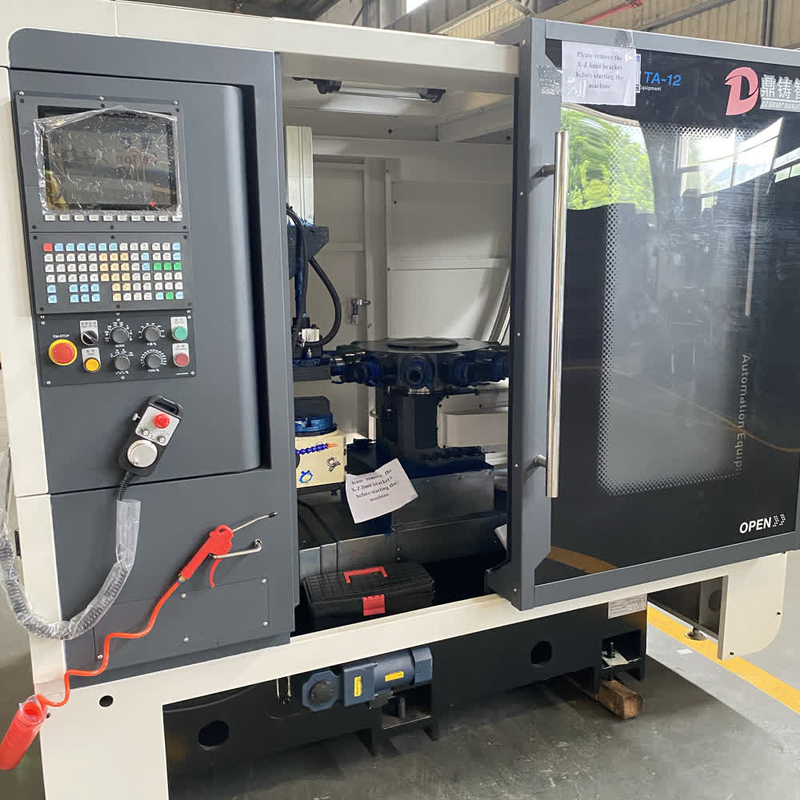

Industrial Thread Machining System Tapping and Drilling Machine
| Brand Name: | DZ |
| Model Number: | TA-12 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Payment Terms: | L/C, T/T, Western Union |
Detail Information
Place of Origin:
CHINA
Certification:
CE
Saddle Y-acis Max. Travel (screw):
500mm
X/Y/Z Axis Max. Speed:
30m/min
Servo Spindle Motor Power:
5.5KW
Drilling Capacity (copper Parts)through-hole:
60mm
Max. Tapping(copper Parts):
50×3mm
Tool Changing Motor:
750W
Lifting Z-acis Max. Travel (screw):
300mm
Base X-acis Max. Travel (screw):
450mm
Delivery Time:
20 work days
Supply Ability:
3 sets per month
Highlight:
Industrial Tapping and Drilling Machine
,5.5KW Tapping and Drilling Machine
Product Description
Industrial Thread Machining System: Drilling And Tapping Excellence.
Product Description:
Features:
- It has a certain degree of flexibility and can adapt to the requirements of a certain range of product specifications and varieties.
- Simple structure and low cost.
- High production efficiency and low energy consumption.
Technical Parameters:
| Parameter | Value |
| Computer-Numerical-Control Drilling Machine | Automated Tapping and Drilling Machine |
| CNC Tapping Machine | BT40 Spindle Taper |
| Machine net weight | 3500KG |
| Drilling Capacity (Copper Parts) through-hole | external diameter 60mm |

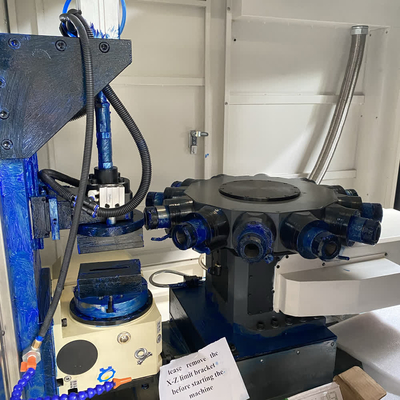

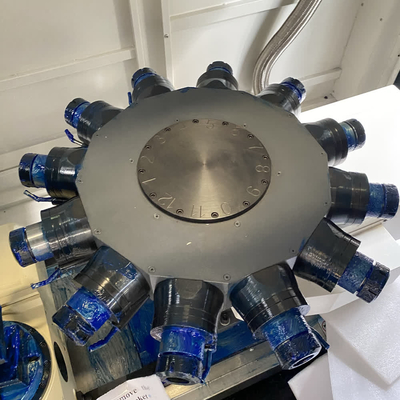

| Rotary Turret | 12 Axis |
| Tool Changing Motor | 750W |
| Base X-acis Max. travel (screw) | 450mm |
| X/Y/Z axis Max. Speed | 30m/min |
| X/Y/Z axis repeat positioning accuracy | 0.008mm |
| Rotating fourth axis | YT200R |
| Servo spindle motor power | 5.5KW |
| Lifting Z-acis Max. travel (screw) | 300mm |
| Saddle Y-axis Max. travel(screw) | 500mm |
| Spindle revolution | 0-3000rpm |
| Spindle taper | BT40 |
| Max. tapping (copper parts) | 50×3mm |
| Spindle turret tool changing time | 0.8s/180° |
| Working table size | 300*300mm |
| Dimension:L×W×H | 2300×1600×1900mm |
Applications:
Valve manufacturing industry, plumbing hardware industry, auto motorcycle parts, non-ferrous metal die-casting industry, electronics and parts processing and other industries processing thread holes.
Packing and Shipping:
Packaging and Shipping for CNC Tapping and Drilling Machine (New):
- The machine will be securely packaged with foam padding inside an appropriate cardboard box.
- The box will be sealed shut with tape.
- The box will be labeled with the appropriate shipping information.
- The box will be placed in an appropriate shipping container.
- The shipping container will be secured with appropriate straps.
- The shipping container will be labeled with the appropriate shipping information.
FAQ:
Q1: What is the Brand Name of this CNC Tapping and Drilling Machine?
A1: The Brand Name of this CNC Tapping and Drilling Machine is DZ.
Q2: What is the Model Number of this CNC Tapping and Drilling Machine?
A2: The Model Number of this CNC Tapping and Drilling Machine is TA-12.
Q3: Where is this CNC Tapping and Drilling Machine produced?
A3: This CNC Tapping and Drilling Machine is produced in CHINA.
Q4: What are the features of this CNC Tapping and Drilling Machine?
A4: This CNC Tapping and Drilling Machine features high-precision, high-speed, reliable performance and a long service life.
Q5: What is the application of this CNC Tapping and Drilling Machine?
A5: This CNC Tapping and Drilling Machine is mainly used for tapping and drilling various materials.
