Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | DZ |
| Certification: | CE |
| Model Number: | XYT-DK540-4 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Delivery Time: | 20 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3 sets per month |
|
Detail Information |
|||
| Whole Machine Weight(about): | 3500kg | Product Name: | CNC Engraving And Milling Machine |
|---|---|---|---|
| T Groove(number*slot*width): | 3-18*125mm | Type: | Automatic |
| Function: | Removing Burrs, Oxidized Skin And Other Surface Defects From The Surface Of Castings | Three Axis Stroke: | 500*400*400mm |
| Workbench Size: | 1050*420mm | Warranty: | 1 Year |
| High Light: | Industrial Automatic CNC Engraving Machine,Castings CNC Engraving Machine |
||
Product Description

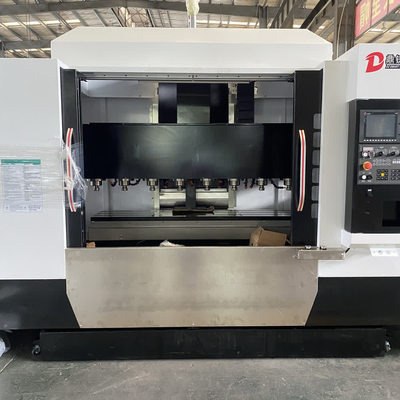

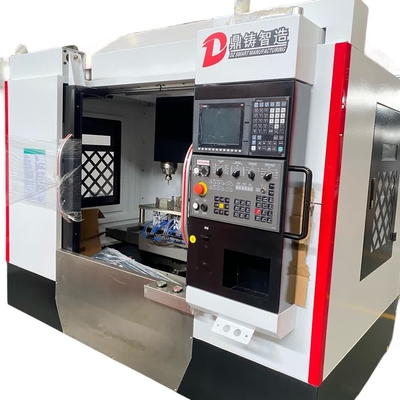

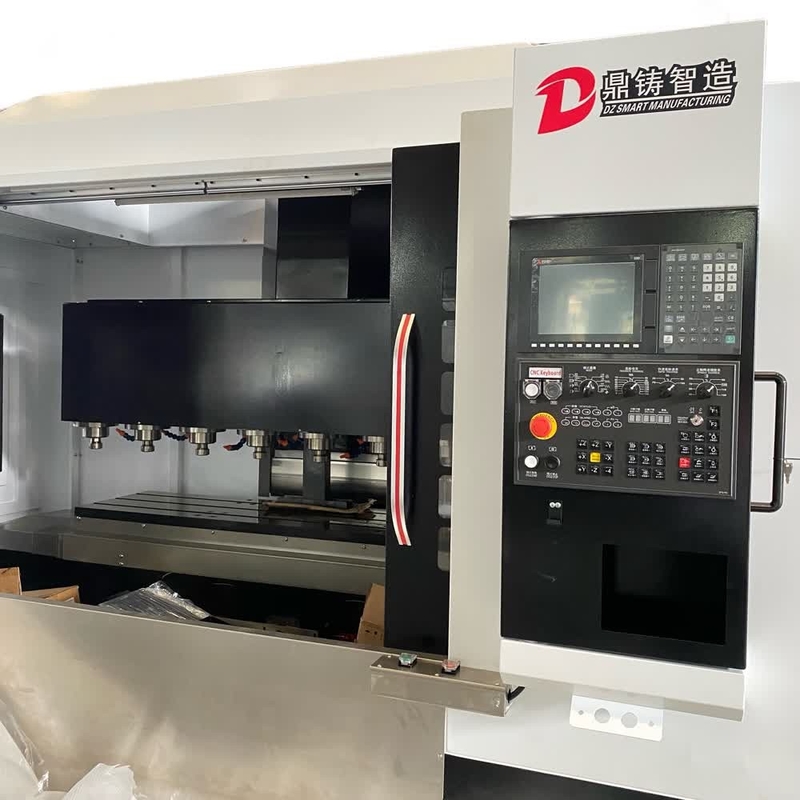

The CNC Engraving And Milling Machine is an automatic engraving and milling machine which is used in car parts manufacturing.
- The three-axis adopts high-precision ball guide rail, which can quickly shift 48m, greatly improving the speed and saving time.

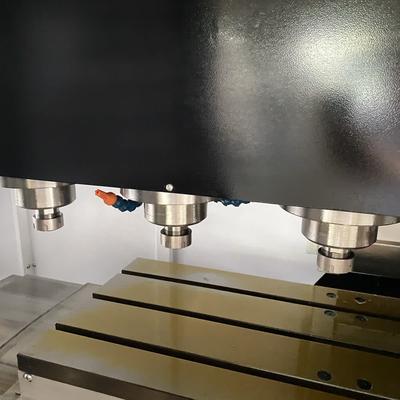

-Elongated table design, can be installed at the same time multi-workpiece position, spindle using multi-head high-power electric spindle, can simultaneously multi-workpiece processing, improve efficiency.
-The headstock adopts nitrogen counterweight balancing mechanism to ensure the high speed and stability of the headstock.
-The best bed mechanism design, the rear outlet water tank position, easy to use, the whole machine beautiful.
| Product Name | Technical Parameters |
| Peeling Machine (New) | Whole machine weight(about): 3500kg |
| Workbench size | 1050*420mm |
| T-groove(number*slot*width) | 3-18*125mm |
| Maximum load(acerage distribution of workbench) | 350kg |
| Three axis stroke | 500*400*400mm |
| Spindle nose to table surface | 150-500mm |
| Distance between the center of the spindle taper(model/installation size) | 450mm |
| Spindle taper(model/installation size) | electric spindleER20/25/35 chuck form |
| Spindle speed |
standard configuration:18000rpm optional configuration:24000rpm |
| Tool Number | No tool magazine:4/electric spindle |
| Maximum tool diameter available | 2/4/6/8/10/12/13mm |
| Three axis fast feed speed | 48/48/48m |
| Feed rate | 0-10000mm |
| Precision | ±0.005/300mm |
| Repetition is defined as precision | ±0.005/300mm |
| Spindle drive motor | 4*4.0kw/4.5.5kw |
| Land area(long*width*high) | 2300*2400*2400mm |
| Whole machine weight(about) | 3500kg |
Focus on bathroom, hardware products industry die casting, casting surface peeling processing
The Peeling Machine (New) is safely packed in a box for shipping. The box is made of cardboard that is strong enough to protect the machine during transportation.
The box contains the following components:
The box is sealed securely and labeled with all necessary information for shipping.
Q1: What is the brand name of this product?
A1: The brand name of this product is DZ.
Q2: What is the model number of this product?
A2: The model number of this product is XYT-DK540-4.
Q3: Where is this product made?
A3: This product is made in China.
Q4: What is the purpose of this product?
A4: This product is a peeling machine, designed for peeling fruits, vegetables and potatoes.
Q5: What is the material of this product?
A5: This product is made of stainless steel, which is durable and easy to clean.
