Product Details:
|
|
Place of Origin: | CHINA |
---|---|
Brand Name: | DZ |
Certification: | CE ISO |
Model Number: | NC62 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 set |
Price: | Negotiable |
Packaging Details: | wood |
Delivery Time: | 30 work days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 1 set /per month |
Detail Information |
|||
Y-axis Max. Speed: | 20m/min | Machine Power: | 17KW |
---|---|---|---|
Y-Axis Travel: | 900mm | X-axis Max. Speed: | 20m/min |
W-axis Max. Speed: | 30°/sec. | Rated Voltage: | 380V 50HZ |
U-Axis Travel: | ±60℃ | W-Axis Travel: | ±360° |
High Light: | 17KW Automatic Polishing Machine,Motorcycle Handlebar Polishing Machine |
Product Description
Parameter | Value |
Dimensions(L*W*H) | 3000*3100*2900mm |
Machine Power | 17KW |
Rated Voltage | 380V |
Max.Diameter of polishing wheel | 600mm |
Min.Diameter of polishing wheel | 400mm |
X-Axis travel (mm) | 1100 |
Y-Axis travel(mm) | 900 |
Z-Axis travel(mm) | 700 |
U-Axis travel(mm) | ±60° |
V-Axis travel(mm) | ±360° |
W-Axis travel(mm) | ±360° |
Max. Speed X axis | 20m/min |
Max. Speed Y axis | 20m/min |
Max. Speed Z axis | 20m/min |
Max. Speed U axis | 30°/sec |
Max. Speed V axis | 30°/sec |
Max. Speed W axis | 30°/sec |

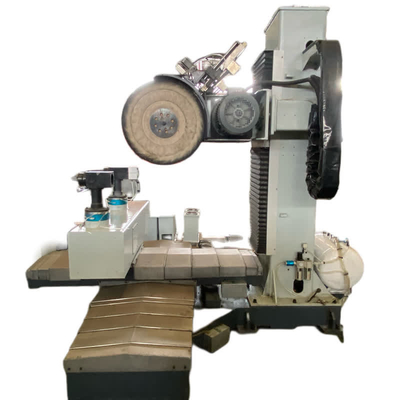

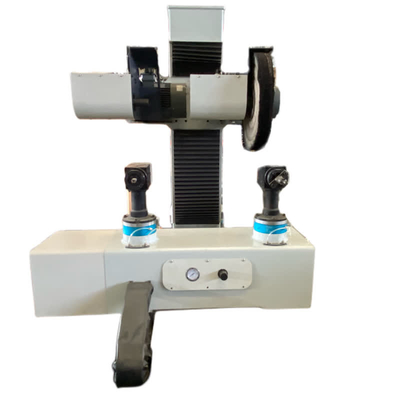

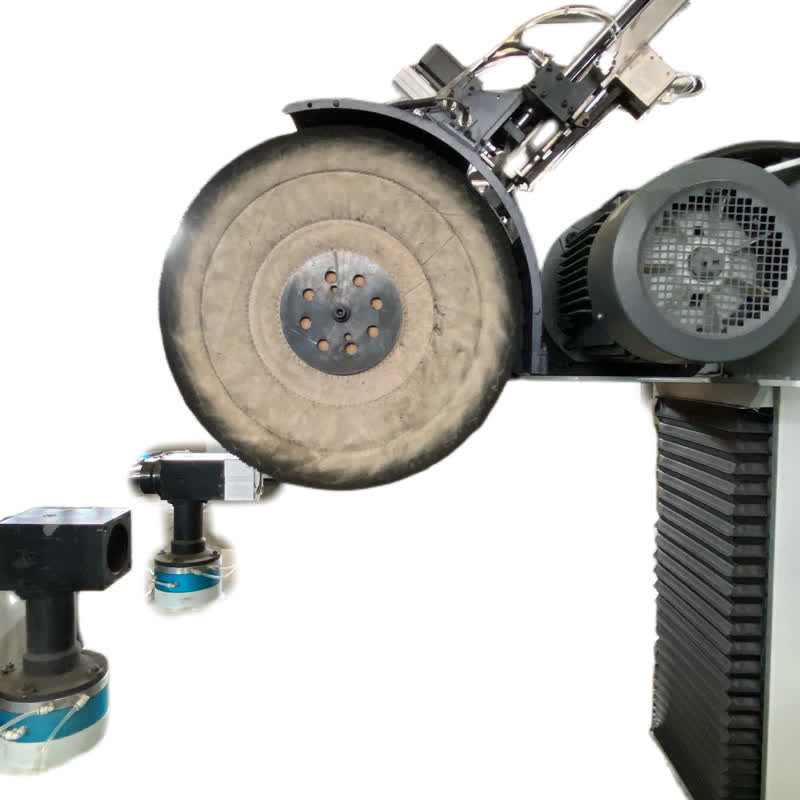

DZ Automatic Polishing Machine is an advanced and efficient polishing device, designed to ensure a perfect polishing effect. Featuring high-performance, low noise and low energy consumption, the machine is designed for continuous automatic polishing of various parts with high precision.
The Automatic Polishing Machine will be securely packaged with bubble wrap to protect the product from any damage during transit. The product will be shipped in its original box, which will be further reinforced with bubble wrap. The package will be carefully sealed and labeled for secure delivery.
To ensure that the product arrives safely, the package will be shipped with a reliable courier service. The customer will be notified of the shipment details as soon as the package is dispatched. The customer can also track the shipment via the courier’s website.
