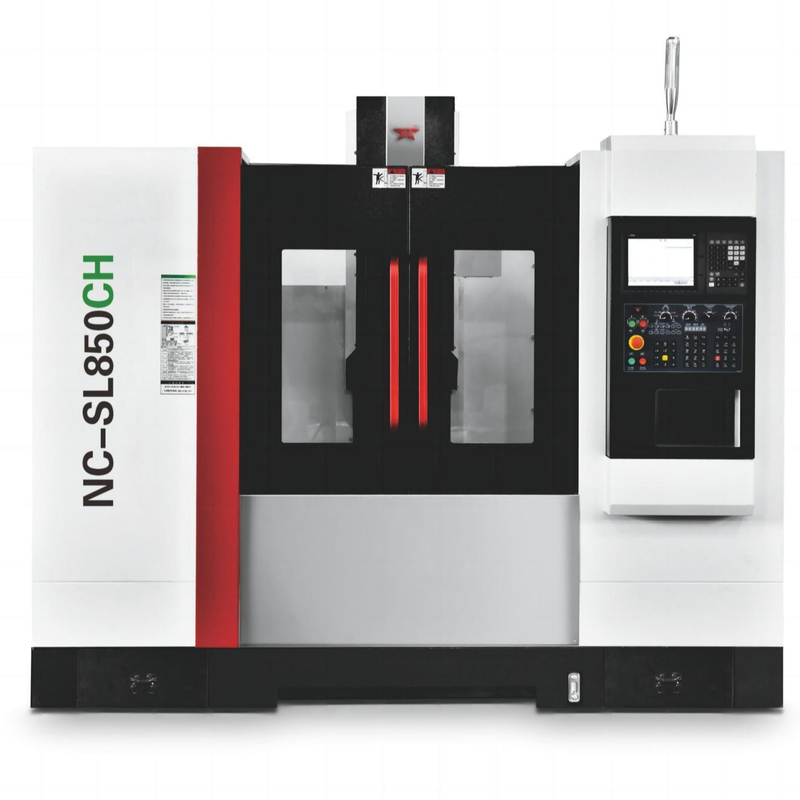

High Precision Automated CNC Tapping and Drilling Machine
| Brand Name: | DZ |
| Model Number: | NC-SL1165 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Payment Terms: | L/C, T/T, Western Union |
High Precision CNC Tapping Machine
,Automated Tapping and Drilling Machine
Product Description:
This powerful CNC Tapping Machine is specially designed for precision tapping and drilling operations. Thanks to its cutting-edge features and advanced computerized numerical-control technology, this machine offers fast and reliable performance while providing excellent accuracy and precision. Additionally, it is designed for easy operation and maintenance, making it the perfect solution for a wide range of industrial applications.
Features:
- Product Name: CNC Tapping and Drilling Machine (New)
- Machine size (L*W*H): 2600*2300*2700mm
- Air pressure: ≥6kg/c M³
- Distance from Spindle center to column guide surface: 690mm
- Three-axis motor (X-Y-Z): 3/3/3KW
- X,Y,Z,axis Quick travel rate: 36/36/36 M/min
- Automated Tapping and Drilling Machine
Technical Parameters:
| Product Attributes | Details |
| CNC Drilling Machine | Computerized Numerical-Control Tapping and Drilling Machine, Computer-Numerical-Control Tapping Machine |
| X-axis stroke | 1100mm |
| Y-axis stroke | 650mm |
| Z-axis stroke | 650mm |
| Distance from Spindle center to column guide surface | 120-770mm |
| Distance from Spindle center to column guide surface | 690mm |
| Working table size | 1200×650mm |
| Max.Load | 1000kg |
| Size of T-shape groove | 5-18/110 |
| Taper specification | BT40/BBT40 |
| Taper specification | 10000(standard)/1200/15000/1800 |
| Spindle motor | 11KW |
| Three-axis motor(X/Y/Z) | 3/3/3 |
| XYZ axis Quick travel rate | 36/36/36 m/min |
| XYZ axis rail specification | 45/45/45 |
| Chip feed rate | 0-10000 mm/min |
| Positioning accuracy | JIS±0.005/300 mm |
| Repeat positioning accuracy | JIS±0.003/300 mmm |
| Air pressure | ≥6 kg/c m³ |
| Tool magazine capacity | N24pcs |
| Machine size(L×W×H) | 2600×2300×2700mm |
Applications:
Hardware,molds,auto parts,communications,IT industry,medical equipment,aerospace.
Support and Services:
Our technical support team is available 24/7 to answer your questions and help you troubleshoot any issues you may be having with the machine. We also provide regular maintenance and servicing to ensure that the machine is running smoothly and efficiently. In the event that any parts need to be replaced, we have a wide selection of replacement parts available.
Packing and Shipping:
The CNC Tapping and Drilling Machine (New) will be packaged and shipped in accordance with the following guidelines:
- The machine and its components will be packaged with a variety of protective materials, such as bubble wrap and foam, to protect it during transit.
- The machine will be shipped in a wooden crate to ensure its safe arrival.
- The crate will be labeled with the customer's address and contact information.
- The machine will be shipped via a reliable freight carrier.
- The customer will be notified when the machine has been shipped and an estimated delivery date will be provided.
