Automatic Metal Surface Polishing Machine Robot Cell For Sanitary Ware

Brand Name:	DZ
Model Number:	FANUC
MOQ:	1set
Packaging Details:	wood
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ISO

Condition:

After-sales Service Provided:

Online Support,Video Technical Support,Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training

Warranty:

1 Year

Application:

Grinding And Polishing

Voltage:

Production Capacity:

Applicable Industries:

Manufacturing Plant

Supply Ability:

20sets/per month

Highlight:

Robot Cell Metal Surface Polishing Machine

Grinding Metal Surface Polishing Machine

Sanitary Ware Metal Polish Machine

Product Description

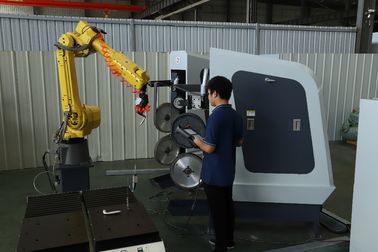

Automatic Metal Surface Polishing Machine Robot Cell For Sanitary Ware

China Manufacturer Grinding automatic metal surface polishing robot cell for sanitary ware

ⅠCHARACTERISTIC

1. Application in faucets, hardware, door locks, tools, tableware, car parts, toilet covers and other products for grinding, polishing and brushed finishing. Sanding belt polishing machines and the discharge tray are provided as needed for different process requirements.

2. Manipulator brand can be selected.

3. Servo motor controls the compensation torque, allowing for arbitrary torque adjustments during operation.

4. Swing arm construction for better dust protection and flexible movement, catering to various product grinding requirements.

5. Contact wheels drive, greatly improves the quality and stability of products.

6. Buff wheels, sisal wheels, brushing wheels and other types of wheels can be installed as needed for the specific process requirements.

7. One person operates multiple machines, reducing labour costs.

Ⅱ TECHNICAAL PARAMETERS

Code	Item	12G	25G	50G	210G
1	Robot Cell	FANUC	FANUC	FANUC	FANUC
2	Model	M-10iD/12	M-20iD/25	M-70iC/50E	R-2000iC_210F
3	Voltage	380V	380V	380V	380V
4	Power	13KW	13KW	20.5KW	20.5KW
5	Grinding Machine Qty.	2	2	3	3
6	Sand Belt Qty.	4	4	6	6
7	Sand belt Dimensions	4000mm	4000mm	4000mm	4000mm
8	Feed Table	1	1	1	1

Automatic Metal Surface Polishing Machine Robot Cell For Sanitary Ware 0

Automatic Metal Surface Polishing Machine Robot Cell For Sanitary Ware 7

Automatic Metal Surface Polishing Machine Robot Cell For Sanitary Ware 8

FAQ

Q: Could please arrange the installation and commissioning ?
A: Yes, we could and the buyer pay the charge

Q: Could you arrange the production education?
A: Yes, we could and the buyer pay the charge

Q: How long is the guarantee?
A: one year and charge for repair the whole life.

Q: How about the lead time and delivery time of my order?
A: Large cargo 15-25 working days, depending on the quantity, and is delivered according to the agreed time.
