Metal Surface Brass Water Tap Polishing Machine Bathroom Faucet Buffing Equipment For Stainless Steel Door Handle
| Brand Name: | DZ |
| Model Number: | NC64 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Payment Terms: | L/C,T/T,Western Union |
Detail Information
Place of Origin:
China
Certification:
CE
Weight:
4000KG
Voltage:
380V/50Hz
Condition:
New
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Maintenance And Repair Service,Field Installation
Use:
Machining, Deburring, Grinding, Polishing
Type:
Angle Polisher
Warranty:
1 Year
Function:
Machining, Deburring, Grinding, Polishing
Delivery Time:
30 days
Supply Ability:
30sets / month
Highlight:
Surface Grinding CNC Polishing Machine
,Stainless Steel Handle CNC Polishing Machine
,CNC Metal Surface Grinding Machine
Product Description
Automatic Brass Water Tap Polishing Machine
Professional metal surface grinding and polishing equipment designed for bathroom faucets, brass water taps, and stainless steel door handles. This automatic polishing system delivers precision finishing with high production efficiency.
Key Features of Automatic Polishing Machine
- 4 manipulators with 6-axis rotary systems for maximum flexibility
- Multiple stations enable simultaneous operations for high production efficiency
- Italian PROMAX motion control technology for stable performance and high accuracy
- Teaching programming with portable handheld device for easy operation
- Automatic polishing pressure and wear compensation control
- Linear speed compensation for consistent polishing quality
- Programmable wax application with choice of solid or liquid compound
- Fully digital control with capacity for 50 program storage
- Bilingual CN/EN touch panel display with fault code diagnostics
Production Advantages
- Precision polishing with uniform quality
- No deformation of processed parts
- High production capacity with simultaneous polishing of two parts per cycle
- Flexible production with quick series changeover
- Rapid fixture and polishing mop replacement
- Universal fixtures compatible with most workpieces
- Intuitive teaching programming system
- One operator can manage multiple machines
Technical Specifications
| Code | Item | Specifications |
|---|---|---|
| 1 | Dimensions (L*W*H) | 4400*3400*2900 |
| 2 | Machine Power | 35KW |
| 3 | Rated Voltage | 380V |
| 4 | Max. Diameter of polishing wheel | 600mm |
| 5 | Min. Diameter of polishing wheel | 400mm |
| 6 | X-Axis travel (mm) | 1100 |
| 7 | Y-Axis travel (mm) | 900 |
| 8 | Z-Axis travel (mm) | 700 |
| 9 | U-Axis travel (mm) | ±90° |
| 10 | V-Axis travel (mm) | ±360° |
| 11 | W-Axis travel (mm) | ±360° |
| 12 | Max.speed X axis | 20m/min |
| 13 | Max.speed Y axis | 20m/min |
| 14 | Max.speed Z axis | 20m/min |
| 15 | Max.speed U axis | 30°/sec. |
| 16 | Max.speed V axis | 30°/sec. |
| 17 | Max.speed W axis | 30°/sec. |

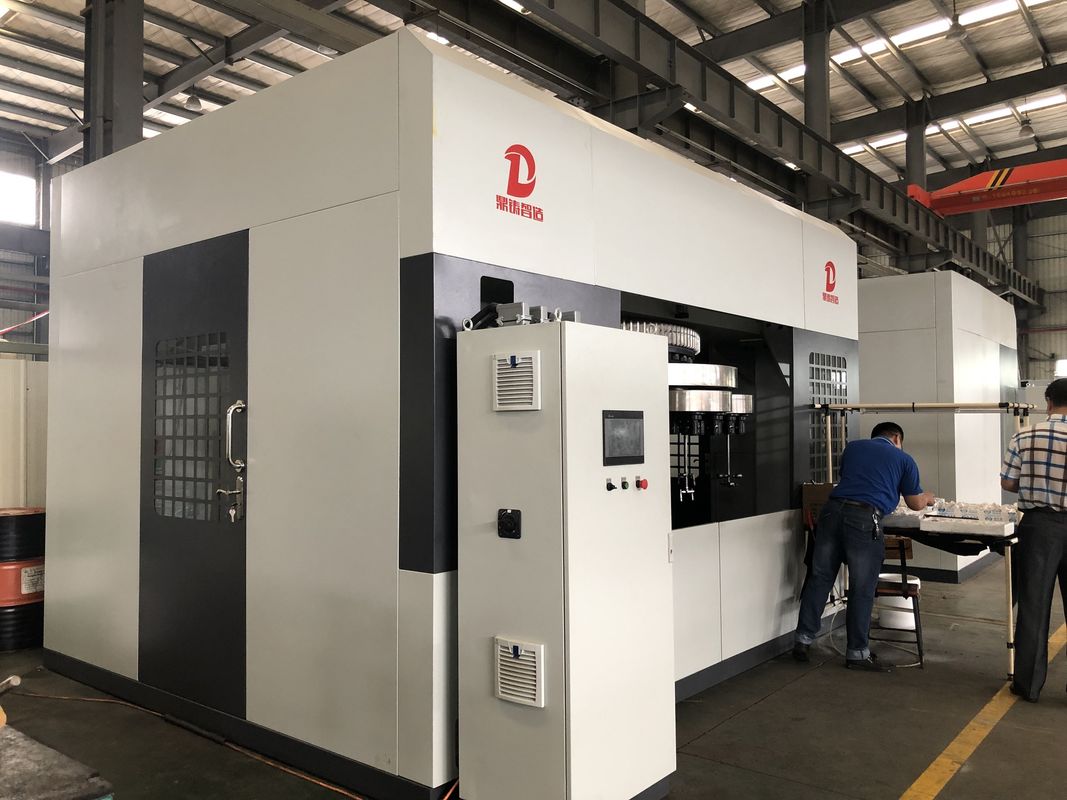

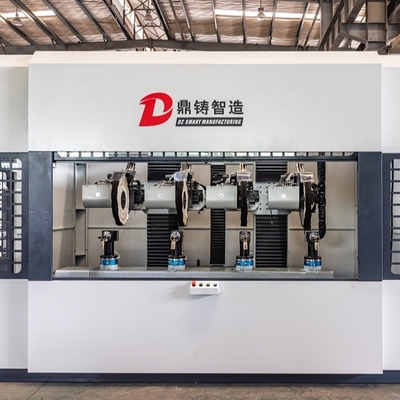

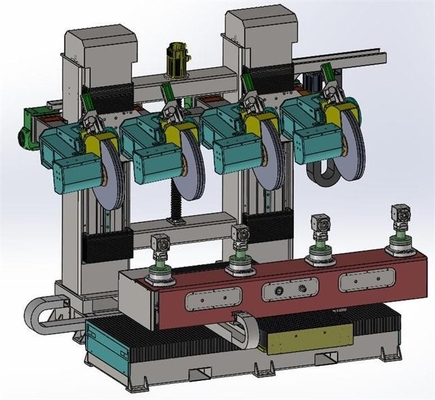

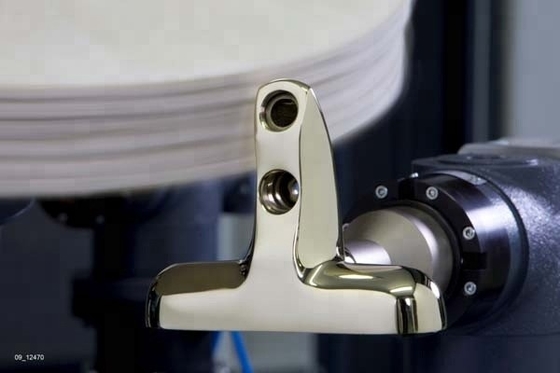

Product Images
Frequently Asked Questions
Can you arrange installation and commissioning?
Yes, we can arrange installation and commissioning at the buyer's expense.
Can you provide production training?
Yes, we can arrange production education and training at the buyer's expense.
What is the warranty period?
One year warranty with lifetime repair service available for a fee.
What is the lead time and delivery schedule?
Large cargo orders typically take 15-25 working days, depending on quantity, and are delivered according to agreed timelines.
