High Quality Sanitary Ware Sand Core Shooting Machine Automatic With CE

Brand Name:	DZ
Model Number:	HZ-360
MOQ:	1 set
Packaging Details:	wood
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China(mainland)

Certification:

CE ISO

Condition:

After-sales Service Provided:

Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Maintenance And Repair Service,Field Installation

Product Name:

Sand Core Shooting Machine

Weight:

2000kg

Voltage:

220v/380v/415v

Warranty:

1 Year

Supply Ability:

30sets/per month

Highlight:

Sanitary Ware Core Shooting Machine

220v Automatic Core Shooting Machine

Sanitary Ware Sand Core Machine

Product Description

High Quality Sanitary Ware Sand Core Shooting Machine With CE Manufacture Automatic

ⅠCHARACTERISTIC

1. human-machine interface and imported high-quality electronic control and pneumatic components/hydraulic device to ensure accurate and reliable control and easy operation.

2. there are three modes: manual, single action, and automatic.

3. the shooting port is 70 degrees to the sand, away from the high-temperature area, so that the perforation is easy to clean manually.

4. The machine is equipped with an integral moving mechanism of the base, which can make the base move along the X and Y axes so that the perforation of the opposite mold into the sand hole is more convenient and accurate.

5. The movable die is equipped with the core pulling rack to meet the special requirements of the mold.

6. The angle of the quicksand in the sand storage bucket reaches 70 degrees and is equipped with a vibrating motor. It is suitable for the use of collapsible core sand with poor fluidity in the copper casting and aluminum industry.

7. With mold adjustment space, it is convenient to assemble different molds and reduce the requirements for the die size.

Ⅱ TECHNICAL PARAMETERS

Code	Item	Specification
1	Max. Weight of Sand Core	8kg
2	Max. Size of Core Box ( L x W x H)	(450330220)mm
3	Heating Plate ( L x W)	(400*300)mm
4	Heating Power	9.6kw
5	Downward Stroke of Ejection Head	≤30mm
6	Stroke of Mold Opening	≤300mm
7	Max. Stroke of Core Remove	150mm
8	Conveyor ( L x W x H)	(2200450100)mm
9	Total Power	13.2kw
10	Rising Angle of Conveyor	2°~4°
11	Speed of Transportation	72mm/s
12	Machine Size ( L x W x H)	(350014803400)mm
13	Speed of Lift (Single Time)	35s
14	Weight of Lift ( Single Time)	10kg
15	Total Weight	2000kg
16	Hydraulic pressure	50Kg/cm²

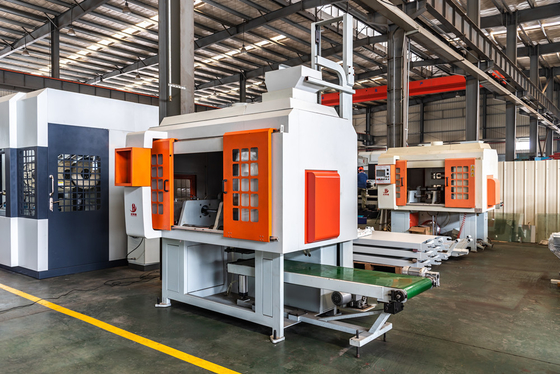

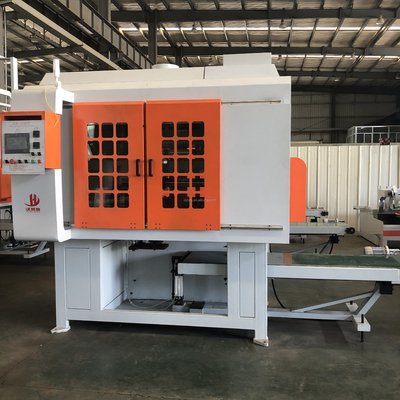

High Quality Sanitary Ware Sand Core Shooting Machine Automatic With CE 0

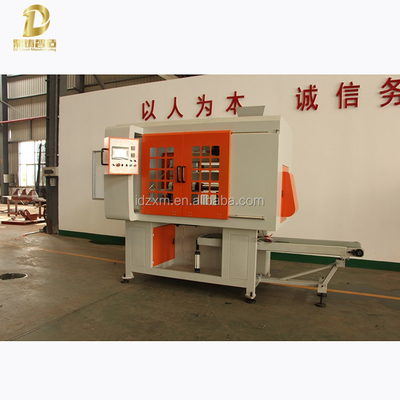

High Quality Sanitary Ware Sand Core Shooting Machine Automatic With CE 2

FAQ

Q: could you please arrange the installation and commissioning ?
A: Yes , we could and the buyer pay the charge

Q: could you arrange the production education?
A: Yes , we could and the buyer pay the charge

Q:How long the guarantee?
A: one year and charge for repair the whole life.

Q: How about the lead time and delivery time of my order?
A: Large cargo 15-25 working days, depending on the quantity, and delivered according to the agreed time.
