Metal Spare Part Surface Polishing Machine System Copper Faucet Brass Buffing Equipment Robot
| Brand Name: | DZ |
| Model Number: | NC-64 |
| MOQ: | 1 |
| Price: | Negotiable |
| Packaging Details: | wood |
| Payment Terms: | L/C,T/T,Western Union |
Detail Information
Place of Origin:
China
Certification:
CE
Dimensions (L*W*H):
4400*3400*2900
Machine Power:
35KW
Rated Voltage:
380V
Max. Diameter Of Polishing Wheel:
600mm
Min. Diameter Of Polishing Wheel:
400mm
Delivery Time:
30 days
Supply Ability:
30sets / month
Highlight:
Faucet Industrial Polishing Machine
,Copper Faucet Industrial Polishing Machine
,Copper Faucet CNC Polishing Machine
Product Description
Metal Spare Part Surface Polishing Machine System
Advanced robotic polishing system designed for copper faucet, brass components, and metal spare parts. Features automated buffing equipment with precision control and high production efficiency.
Automatic Polishing Machine Characteristics
- 4 manipulators with 6-axis rotary systems for high flexibility and production efficiency
- PROMAX motion control technology from Italy for stable performance and high accuracy
- Teaching programming with portable handheld device for manual simulation and automatic operation
- Automatic polishing pressure and wear compensation control
- Linear speed compensation for consistent polishing quality
- Programmable wax application with choice of solid or liquid compound
- Fully digital control with capacity for 50 program storage
- Multi-language touch panel display with fault code diagnostics
Four-Station Automatic Polishing Machine Advantages
- Precision polishing with uniform quality and no part deformation
- High production capacity with four simultaneous working stations
- Fully automated operation with integrated waxing system
- Quick fixture and polishing mop replacement
- Reduced consumption of fixtures, mops, and polishing compounds
- Temperature-controlled polishing process
- Interactive teach system for easy programming
- Multi-angle polishing capability in any position
- High profitability with single operator managing multiple machines
Technical Specifications
| Code | Item | Specifications |
|---|---|---|
| 1 | Dimensions (L*W*H) | 4400*3400*2900 |
| 2 | Machine Power | 35KW |
| 3 | Rated Voltage | 380V |
| 4 | Max. Diameter of polishing wheel | 600mm |
| 5 | Min. Diameter of polishing wheel | 400mm |
| 6 | X-Axis travel (mm) | 1100 |
| 7 | Y-Axis travel (mm) | 900 |
| 8 | Z-Axis travel (mm) | 700 |
| 9 | U-Axis travel (mm) | ±90° |
| 10 | V-Axis travel (mm) | ±360° |
| 11 | W-Axis travel (mm) | ±360° |
| 12 | Max.speed X axis | 20m/min |
| 13 | Max.speed Y axis | 20m/min |
| 14 | Max.speed Z axis | 20m/min |
| 15 | Max.speed U axis | 30°/sec. |
| 16 | Max.speed V axis | 30°/sec. |
| 17 | Max.speed W axis | 30°/sec. |

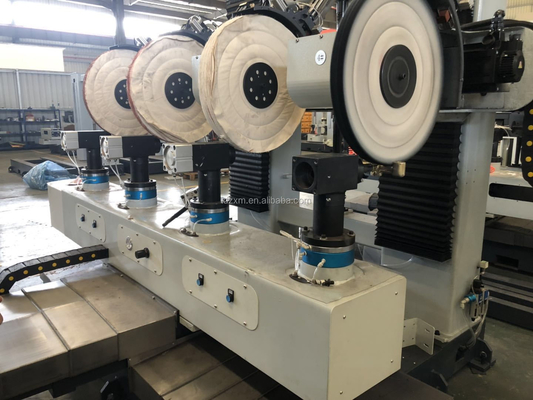

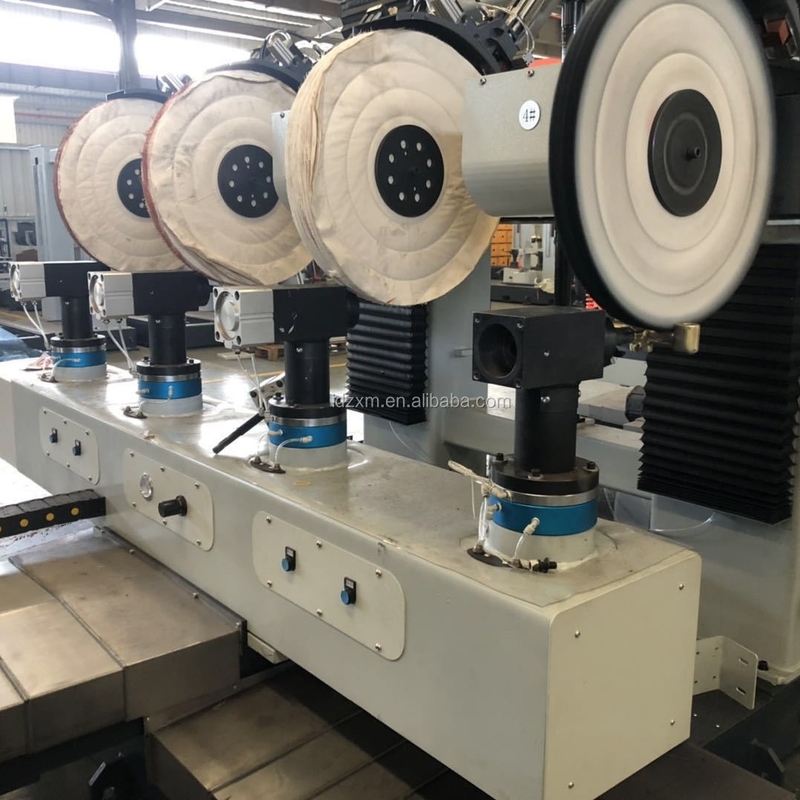

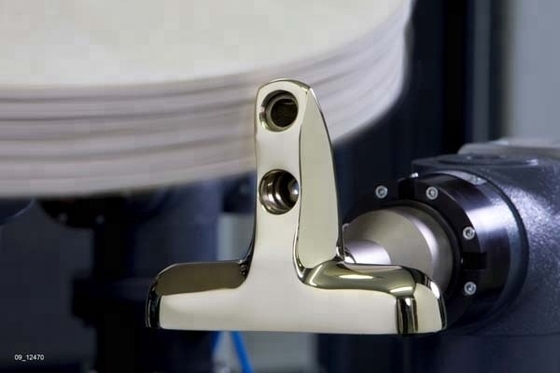

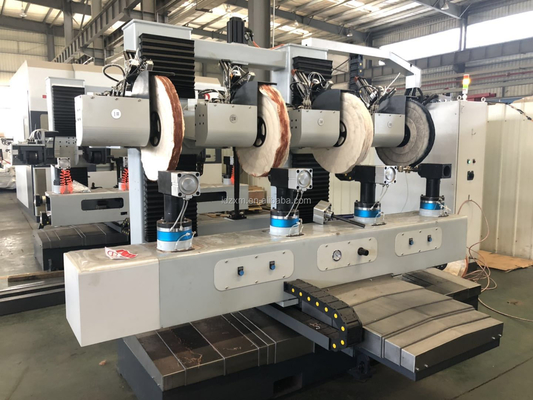

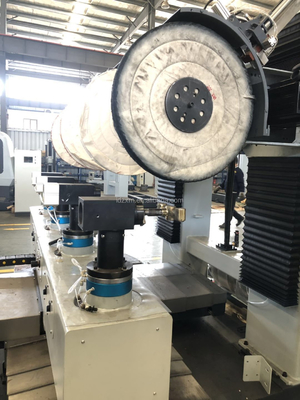

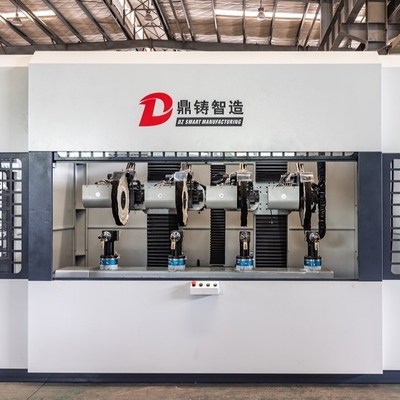

Product Gallery
Frequently Asked Questions
Could you please arrange the installation and commissioning?
Yes, we can arrange installation and commissioning at the buyer's expense.
Could you arrange the production education?
Yes, we can arrange production education and training at the buyer's expense.
How long is the guarantee?
One-year warranty with lifetime repair service available (charges apply after warranty period).
How about the lead time and delivery time of my order?
Large cargo delivery within 15-25 working days, depending on quantity, delivered according to agreed schedule.
