Automatic Sand Core Shooting Machine With Conveyor For Faucet

Product Details:
Place of Origin: China(mainland)
Brand Name: DZ
Certification: CE ISO
Model Number: HZ-360
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wood
Delivery Time: 30 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets per Month

Detail Information

Product Name: Sand Core Shooting Machine Weight: 2000kg
Max. Weight Of Sand Core: 8kg Max. Size Of Core Box ( L X W X H): (450*330*220)mm
Heating Plate ( L X W): (400*300)mm
High Light:

Core Shooting Machine With Conveyor

,

Faucet Automatic Sand Core Machine

,

72mm/s Core Shooting Machine

Product Description

Factory Direct Supply Automatic Sand Core Shooting Machine With Conveyor For Faucet



ⅠCHARACTERISTIC



1. human-machine interface and imported high-quality electronic control and pneumatic components/hydraulic device to ensure accurate and reliable control and easy operation.



2. there are three modes: manual, single action, and automatic.



3. the shooting port is 70 degrees to the sand, away from the high-temperature area, so that the perforation is easy to clean manually.



4. The machine is equipped with an integral moving mechanism of the base, which can make the base move along the X and Y axes so that the perforation of the opposite mold into the sand hole is more convenient and accurate.



5. The movable die is equipped with the core pulling rack to meet the special requirements of the mold.



6. The angle of the quicksand in the sand storage bucket reaches 70 degrees and is equipped with a vibrating motor. It is suitable for the use of collapsible core sand with poor fluidity in the copper casting and aluminum industry.



7. With mold adjustment space, it is convenient to assemble different molds and reduce the requirements for the die size.





TECHNICAL PARAMETERS



Code Item Specification
1 Max. Weight of Sand Core 8kg
2 Max. Size of Core Box ( L x W x H) (450*330*220)mm
3 Heating Plate ( L x W) (400*300)mm
4 Heating Power 9.6kw
5 Downward Stroke of Ejection Head ≤30mm
6 Stroke of Mold Opening ≤300mm
7 Max. Stroke of Core Remove 150mm
8 Conveyor ( L x W x H) (2200*450*100)mm
9 Total Power 13.2kw
10 Rising Angle of Conveyor 2°~4°
11 Speed of Transportation 72mm/s
12 Machine Size ( L x W x H) (3500*1480*3400)mm
13 Speed of Lift (Single Time) 35s
14 Weight of Lift ( Single Time) 10kg
15 Total Weight 2000kg
16 Hydraulic pressure 50Kg/cm²

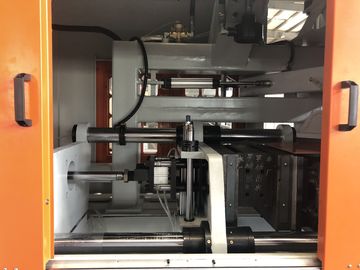

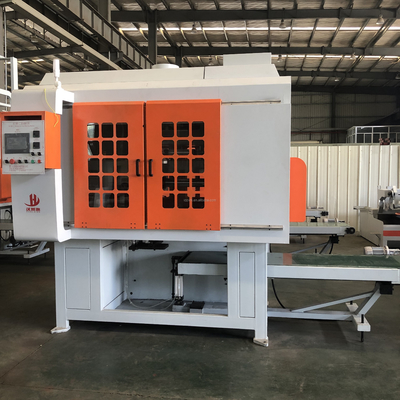

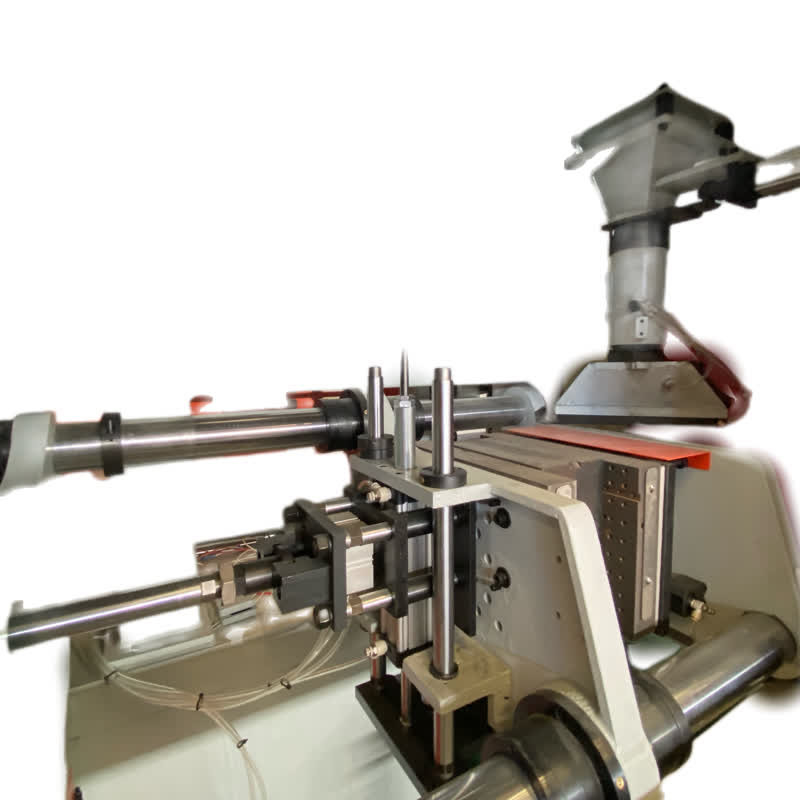

Automatic Sand Core Shooting Machine With Conveyor For Faucet 0Automatic Sand Core Shooting Machine With Conveyor For Faucet 1Automatic Sand Core Shooting Machine With Conveyor For Faucet 2Automatic Sand Core Shooting Machine With Conveyor For Faucet 3Automatic Sand Core Shooting Machine With Conveyor For Faucet 4Automatic Sand Core Shooting Machine With Conveyor For Faucet 5Automatic Sand Core Shooting Machine With Conveyor For Faucet 6Automatic Sand Core Shooting Machine With Conveyor For Faucet 7Automatic Sand Core Shooting Machine With Conveyor For Faucet 8Automatic Sand Core Shooting Machine With Conveyor For Faucet 9Automatic Sand Core Shooting Machine With Conveyor For Faucet 10Automatic Sand Core Shooting Machine With Conveyor For Faucet 11Automatic Sand Core Shooting Machine With Conveyor For Faucet 12

Q: could you please arrange the installation and commissioning ?
A: Yes , we could and the buyer pay the charge



Q: could you arrange the production education?
A: Yes , we could and the buyer pay the charge



Q:How long the guarantee?
A: one year and charge for repair the whole life.



Q: How about the lead time and delivery time of my order?
A: Large cargo 15-25 working days, depending on the quantity, and delivered according to the agreed time.
