Industry Casting Core Making Automatic Sand Core Making Machine With Conveyor

Product Details:
Place of Origin: China
Brand Name: DZ
Certification: CE
Model Number: HZ-360
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wood
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30sets / month

Detail Information

Total Power: 13.2kw Total Weight: 2000kg
Machine Size ( L X W X H): (3500*1480*3400)mm Max. Weight Of Sand Core: 8kg
Max. Size Of Core Box ( L X W X H): (450*330*220)mm
High Light:

Automatic Sand Core Making Machine

,

Conveyor Sand Core Making Machine

,

CE Casting Core Making Machine

Product Description

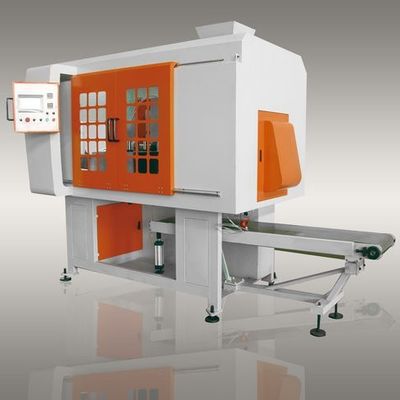

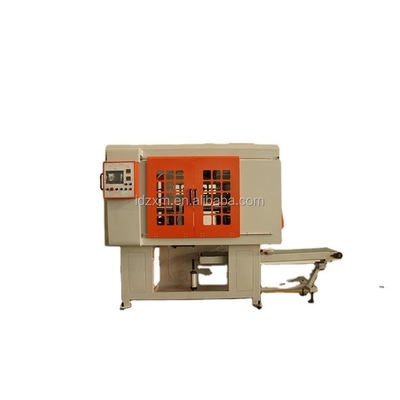

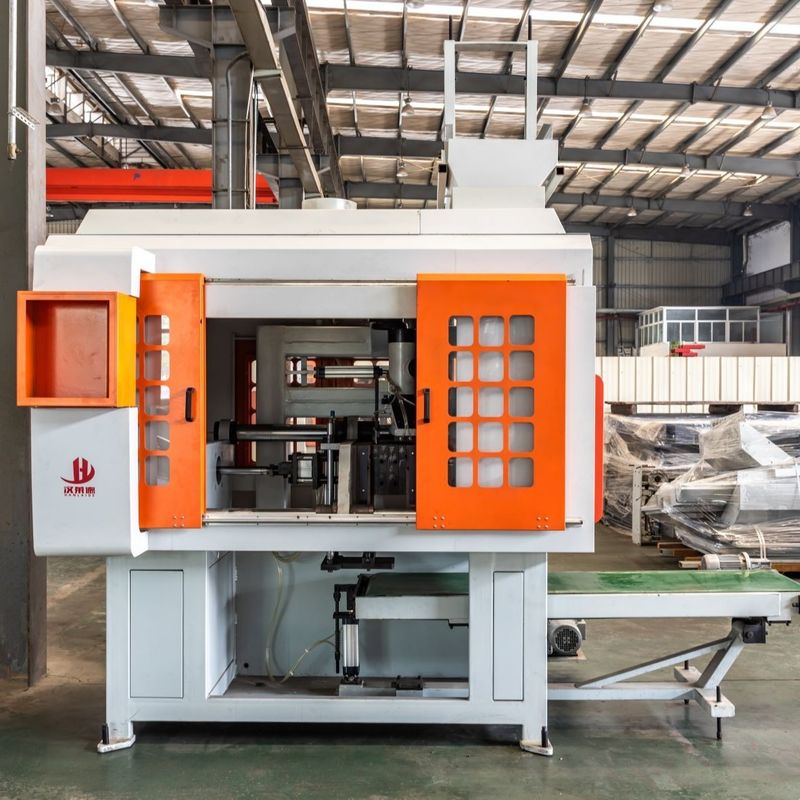

Industry Casting Core Making Automatic Sand Core Making Machine With Conveyor



Ⅰ FEATURE



1. human-machine interface and imported high-quality electronic control and pneumatic components/hydraulic device to ensure accurate and reliable control and easy operation.



2. there are three modes: manual, single action, and automatic.



3. the shooting port is 70 degrees to the sand, away from the high-temperature area, so that the perforation is easy to clean manually.



4. The machine is equipped with an integral moving mechanism of the base, which can make the base move along the X and Y axes so that the perforation of the opposite mold into the sand hole is more convenient and accurate.

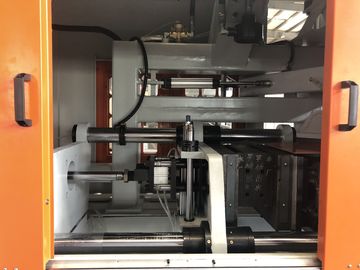

5. The movable die is equipped with the core pulling rack to meet the special requirements of the mold.



6. The angle of the quicksand in the sand storage bucket reaches 70 degrees and is equipped with a vibrating motor. It is suitable for the use of collapsible core sand with poor fluidity in the copper casting and aluminum industry.



7. With mold adjustment space, it is convenient to assemble different molds and reduce the requirements for the die size.



Ⅱ TECHNICAL PARAMETERS



Code Item Specification
1 Max. Weight of Sand Core 8kg
2 Max. Size of Core Box ( L x W x H) (450*330*220)mm
3 Heating Plate ( L x W) (400*300)mm
4 Heating Power 9.6kw
5 Downward Stroke of Ejection Head ≤30mm
6 Stroke of Mold Opening ≤300mm
7 Max. Stroke of Core Remove 150mm

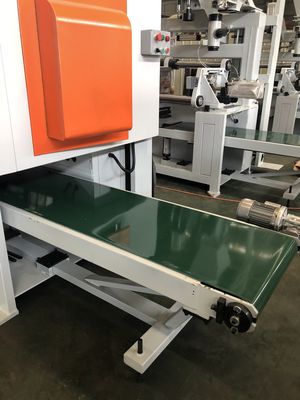

8 Conveyor ( L x W x H) (2200*450*100)mm
9 Total Power 13.2kw
10 Rising Angle of Conveyor 2°~4°
11 Speed of Transportation 72mm/s
12 Machine Size ( L x W x H) (3500*1480*3400)mm

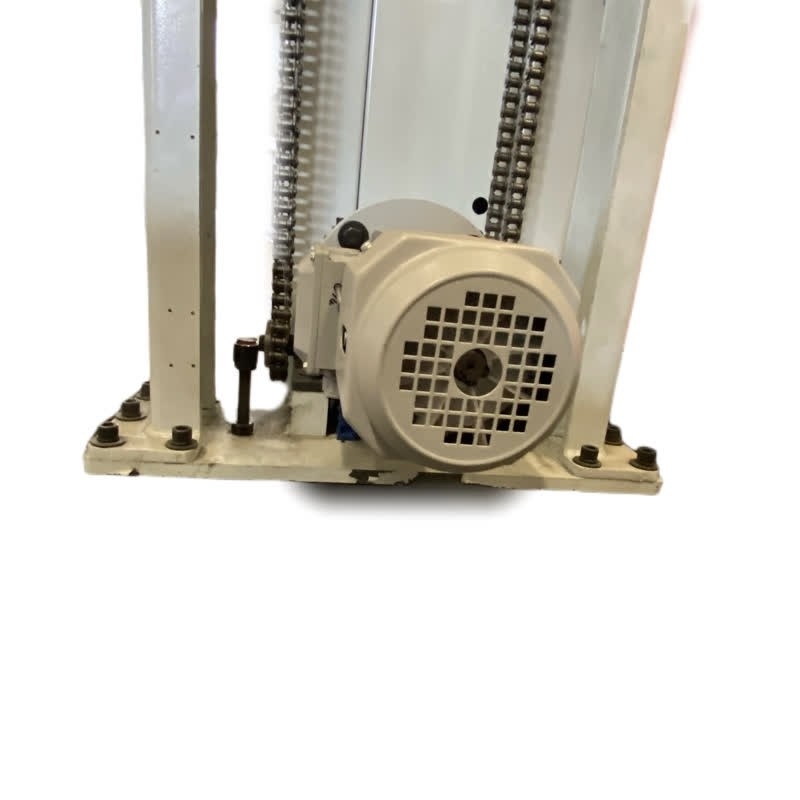

13 Speed of Lift (Single Time) 35s
14 Weight of Lift ( Single Time) 10kg
15 Total Weight 2000kg
16 Hydraulic pressure 50Kg/cm²















































Industry Casting Core Making Automatic Sand Core Making Machine With Conveyor 0Industry Casting Core Making Automatic Sand Core Making Machine With Conveyor 1Industry Casting Core Making Automatic Sand Core Making Machine With Conveyor 2Industry Casting Core Making Automatic Sand Core Making Machine With Conveyor 3Industry Casting Core Making Automatic Sand Core Making Machine With Conveyor 4

Industry Casting Core Making Automatic Sand Core Making Machine With Conveyor 5

Industry Casting Core Making Automatic Sand Core Making Machine With Conveyor 6Industry Casting Core Making Automatic Sand Core Making Machine With Conveyor 7Industry Casting Core Making Automatic Sand Core Making Machine With Conveyor 8Industry Casting Core Making Automatic Sand Core Making Machine With Conveyor 9



FAQ

Q: could you please arrange the installation and commissioning ?
A: Yes , we could and the buyer pay the charge



Q: could you arrange the production education?
A: Yes , we could and the buyer pay the charge



Q:How long the guarantee?
A: one year and charge for repair the whole life.



Q: How about the lead time and delivery time of my order?
A: Large cargo 15-25 working days, depending on the quantity, and delivered according to the agreed time.
