Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | DZ |
| Certification: | CE ISO |
| Model Number: | NC-64 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wood |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30sets / month |
|
Detail Information |
|||
| Weight: | 4000KG | Voltage: | 380V/50Hz |
|---|---|---|---|
| Condition: | 100%New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Maintenance And Repair Service,Field Installation |
| Use: | Machining, Deburring, Grinding, Polishing | Type: | Angle Polisher |
| Warranty: | 1 Year | Name: | Grinding Robotic |
| Function: | Machining, Deburring, Grinding, Polishing | ||
| High Light: | 50Hz Faucet CNC Polishing Machine,Multi Stations CNC Polishing Machine,Door Handles CNC Grinding Machine |
||
Product Description

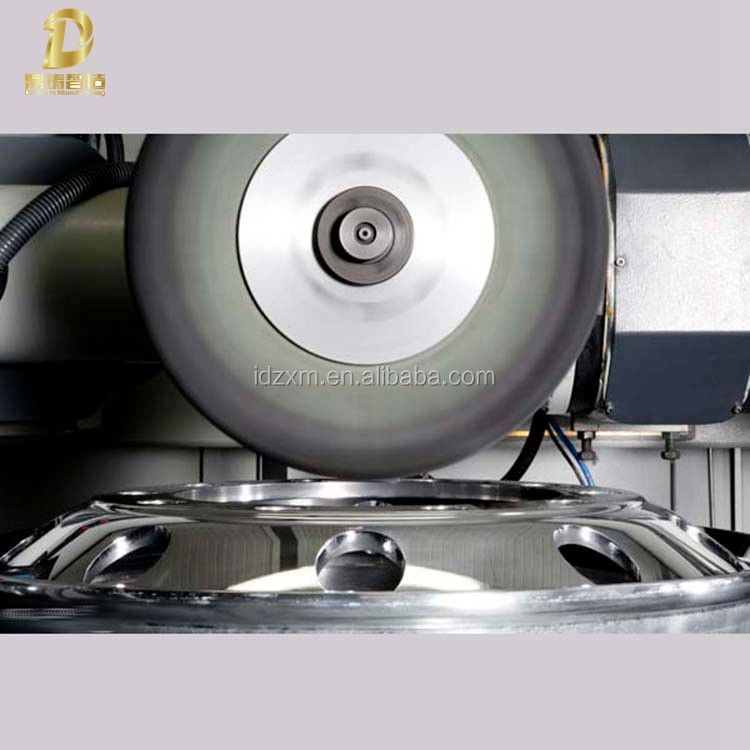

CNC Polishing Machine With Multiple Stations' Simultaneous Operations For Door Handles Or Faucet
Ⅰ CHARACTERISTIC
- Uniform polishing quality without deformation of the processed parts.
- High production. Four working stations work simultaneously, and with one-time programming, the machine can finish the polishing and buffing jobs of four workpieces at one time.
- Full auto, waxing system;
- Quick replacement of the fixtures.
- Quick replacement of the polishing mops.
- Cost-reduction in the number of fixtures.
- Important reduction in mops and polishing compounds consumption.
- Polishing system avoiding excessive temperature of the parts during the working process.
- Quick and easy programming. Interactive Teach System.
- Finish the polishing/buffing jobs in any angle and position;
- High profitability and amortization. One single operator can handle several machines by synchronizing the working cycles.
Ⅱ TECHNICAL PARAMETERS
| Code | Item |
Specifications |
| 1 | Dimensions (L*W*H) | 4400*3400*2900 |
| 2 | Machine Power | 35KW |
| 3 | Rated Voltage | 380V |
| 4 | Max. Diameter of polishing wheel |
600mm |
| 5 | Min. Diameter of polishing wheel |
400mm |
Ⅲ Features of various polishing machines on the market
|
No
|
project | DingZhu polishing machine | Robotic polishing machine | Special polishing machine | Remarks |
| 1 | quality | high | medium | low | |
| 2 | flexibility | Universal Angle, ensure that not deformation does not leakage |
Universal Angle, ensure that not deformation does not leakage
|
Easy to deformation and leakage
|
|
|
3
|
Wheel flexibility
|
The wheel is large to ensure the line speed and the wheel is flexible
|
The wheel is large to ensure the line speed and the wheel is flexible |
The wheels are small and not very flexible enough
|
|
| 4 | rigidity |
Good steel, the wheels can be pressed tightly and polished
|
Arms are too long, with poor steel performance | Good steel, the wheels can be pressed tightly and polished | |
| 5 | productivity | high | low | higher | |
|
6
|
Add wax
|
Solid wax, uniform, economical, and environmentally friendly | Liquid wax has a high cost, poor effect, and pollutes the equipment and the environment | Liquid wax has a high cost, poor effect, and pollutes the equipment and the environment | |
| 7 | Wheel loss | low | low | high | |
|
8
|
self-compensating | Coordinate and line speed compensation effect is good | Without this function, it affects the quality | Without this function, it affects the quality | |
|
9
|
frock
|
Small quantity, simple structure, low cost | Small quantity, simple structure, low cost | The number is very large, complex structure, high cost | |
| 10 | Programming time | Within 2 hours | 8 Hours | 8 Hours | |
|
11
|
Programming difficulty | Simple | Complicated | Complicated | |
|
12
|
Change the product
|
15 Minutes | 2 Hours | 8 Hours | Previous production procedures exist |
| 13 | safety | high | medium | low |
FAQ
Q1. Where is your factory located ? How can I visit it ?
A : Our factory is located in Quanzhou city,Fujian province,China. You can fly to Jinjiang or Xiamen air port, we will pick you up.
Q2. Are you produce polishing machine's specific parameters according to the samples?
A: Yes, we produce the machine you want by your samples or technical drawings. Usually one machine have different molds and fixtures like metal polishing machine,die casting machine.
Q3. What is your sample service?
A: We can supply the sample testing which client want to produce if we have ready machine in stock, but the customers have to pay the sample shipping cost.
Q4. What is your MOQ of your machine?
A: Normally our MOQ is 1 set.
Q5. Do you test all your machine before delivery?
A: Yes, we have 100% test before delivery.
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
