Four Stations CNC Automatic Grinding Machine For Brass Water Tap

Product Details:
Place of Origin: China
Brand Name: DZ
Certification: CE
Model Number: HLD-50E
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wood
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30sets / month

Detail Information

Weight: 4000KG Voltage: 380V/50Hz
Condition: 100%New After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Maintenance And Repair Service,Field Installation
Use: Machining, Deburring, Grinding, Polishing Type: Angle Polisher
Warranty: 1 Year Name: Grinding Robotic
Function: Machining, Deburring, Grinding, Polishing
High Light:

Brass Water Tap Grinding Machine

,

380V CNC Automatic Grinding Machine

,

Water Tap CNC Polishing Machine

Product Description

Four Stations CNC Automatic Grinding Machine For Brass Water Tap



Fully automatic machine with two manipulators mounted on a rotary turning device and one furnace for the cost-effective production of high-quality casting products.



1) Capacity per shift (8 hours): approx. 760 castings

2) Fully automation of the low-pressure die-casting process, short mold change time and flexible application, which is very suitable for mass casting production;

3) Specifications

A. 2 manipulators on a rotary device, operated independently. Operating Parameters can be edited independently. Two manipulators either work at the same time; or one set changes the die, or the other set is under maintenance.

B. Manually setting of the cores

C. Max die dimensions: 600 x400x240 mm

D. Quick die change flanges

E. Simple furnace control electrics

F. Die cooling and coating in a blackwash bath

G. Different die castings are equipped with separated feeders, graphite baths and manipulators.

H. Large furnace melting rate, capacity is up to 700kg/h, for the operation with 2 manipulators working together.

I. Drive by servo motor, with high precise, stable and efficiency performance.



I. CHARACTERISTIC



Precision polishing


- Uniform polishing quality, no deformation of the workpiece;


- High output, four stations work synchronously, one programming, one time to complete four workpiece clearing operation;


- Automatic waxing system;


- Quick replacement of fixture.


- Quick replacement of polishing materials.


- Reduce the number of fixtures.


- Reduce polishing material consumption.


- Polishing system, avoid workpiece in the process of machining temperature is too high.


- Fast and easy programming.


- Finish any Angle polishing work;


- One operator can operate multiple machines.



II.TECHNICAL PARAMETERS



Code Item

Specifications

1 Dimensions (L*W*H)  4400*3400*2900
2 Machine Power  35KW
3 Rated Voltage  380V
4 Max. Diameter of polishing wheel

600mm

5 Min. Diameter of polishing wheel

400mm

6 X-Axis travel (mm)  1100
7 Y-Axis travel (mm)  900
8 Z-Axis travel (mm)  700
9 U-Axis travel (mm)  ±90°
10 V-Axis travel (mm)  ±360°
11 W-Axis travel (mm)  ±360°
12 Max.speed X axis  20m/min
13 Max.speed Y axis  20m/min
14 Max.speed Z axis  20m/min
15 Max.speed U axis  30°/sec.
16 Max.speed V axis  30°/sec.
17 Max.speed W axis  30°/sec.

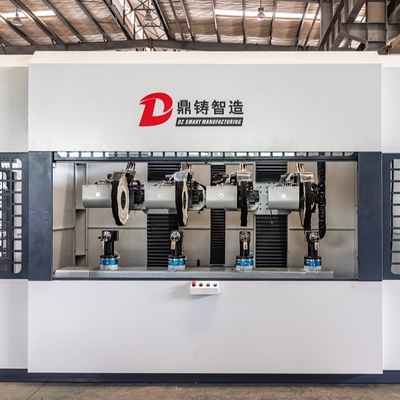

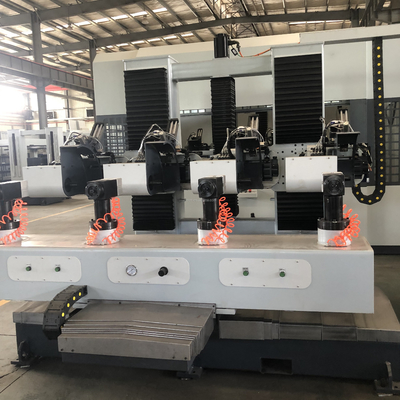

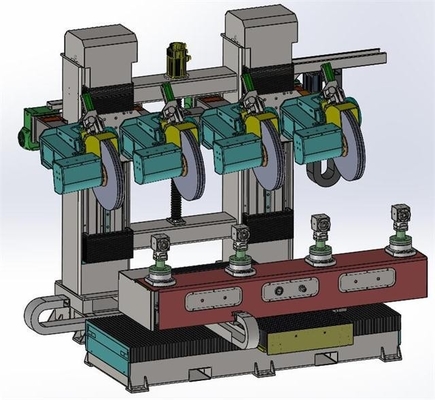

Four Stations CNC Automatic Grinding Machine For Brass Water Tap 0Four Stations CNC Automatic Grinding Machine For Brass Water Tap 1Four Stations CNC Automatic Grinding Machine For Brass Water Tap 2

FAQ

Q1. Where is your factory located ? How can I visit it ?
A : Our factory is located in Quanzhou city,Fujian province,China. You can fly to Jinjiang or Xiamen air port, we will pick you up.


Q2. Are you produce polishing machine's specific parameters according to the samples?
A: Yes, we produce the machine you want by your samples or technical drawings. Usually one machine have different molds and fixtures like metal polishing machine,die casting machine.


Q3. What is your sample service?
A: We can supply the sample testing which client want to produce if we have ready machine in stock, but the customers have to pay the sample shipping cost.


Q4. What is your MOQ of your machine?
A: Normally our MOQ is 1 set.


Q5. Do you test all your machine before delivery?
A: Yes, we have 100% test before delivery.


Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
