Human-machine interface and imported high quality electronic control and pneumatic components/hydraulic device to ensure accurate and reliable control and easy operation.
There are three modes: manual, single action and automatic.
The shooting port is 70 degrees to the sand, away from the high temperature area, so that the perforation is easy to clean manually.
The machine is equipped with integral moving mechanism of the base, which can make the base move along the X and Y axes, so that the perforation of the opposite mold into the sand hole more convenient and accurate.
The movable die is equipped with the core pulling rack to meet the special requirements of the mold.
The angle of the quicksand in the sand storage bucket reaches 70 degrees and is equipped with a vibrating motor. It is suitable for the use of collapsible core sand with poor fluidity in the copper casting and aluminum industry.
With mold adjustment space, it is convenient to assemble different molds and reduce the requirements for the die size.

II:Main Technical Specifications
1	BASIC EQUIPMENT	Specifications
	Max. Sand Core Weight	9kg
	Max. Cor Box size(LWH)	(450330220)mm
	Heating Plate(L*W)	(400*300)mm
	Heating Power	9.6kw
	Clamping stroke of the shooting head	≤30mm
	Die-opening Stroke	≤300mm
	Max.Core Pulling Stroke	150mm
	Conveyor Belt(LWH)	(2200450100)mm
	Machine Power	2°~4°
	Conveyor Speed	72mm/s
	Machine Dimension(LWH)	(350014803400)mm
	Lifting Speed(single cycle)	35s
	Lifting Capacity(Single cycle)	5~10kg
	Machine weight	2000kg

Interface Brass Water Tap Sand Casting Machine With Conveyor 0

Product categories

Easy Operation Robotic Buffing Machine For Faucets With 1.5KW Stepper Motor 2

Company Profile

Certifications

FAQ

Q: could you please arrange the installation and commissioning ?
A: Yes , we could and the buyer pay the charge

Q: could you arrange the production education?
A: Yes , we could and the buyer pay the charge

Q:How long the guarantee?
A: one year and charge for repair the whole life.

Q: How about the lead time and delivery time of my order?
A: Large cargo 15-25 working days, depending on the quantity, and delivered according to the agreed time.

Tags:

shell core shooter machine

cold box core shooter machine

sand core making machine

Products Details

Home > Products >

Sand Core Shooting Machine

Interface Brass Water Tap Sand Casting Machine With Conveyor

All Category

CNC Polishing Machine

Automatic Polishing Machine

Robotic Polishing Machine

Robot Grinding Machine

Low Pressure Die Casting Machine

Gravity Die Casting Machine

Sand Core Shooting Machine

Automatic Buffing Machine

Automatic Grinding Machine

Brass Taps Manufacturing Process

Faucet Manufacturing Machine

CNC Engraving And Milling Machine

Tapping And Drilling Machine

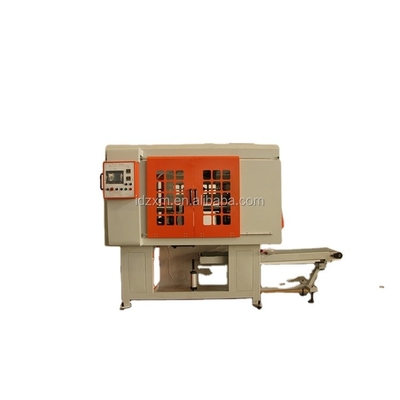

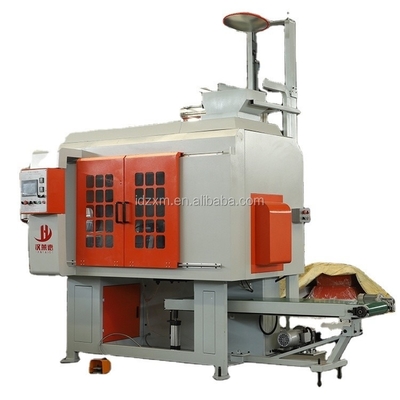

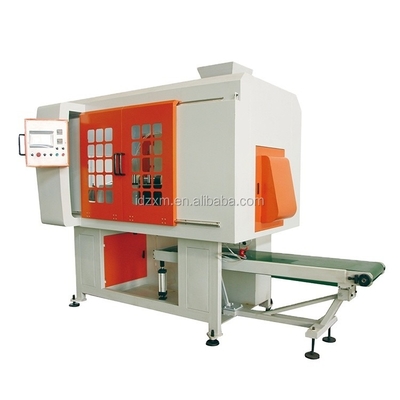

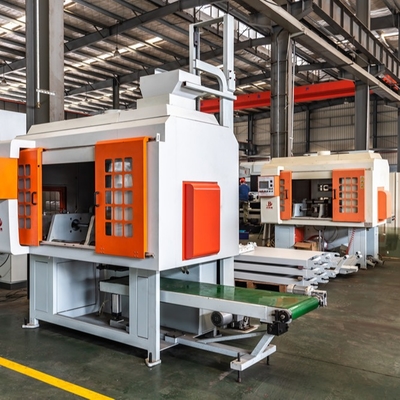

Interface Brass Water Tap Sand Casting Machine With Conveyor
