Sand Core Making Sand Casting Machine Heating Power 9.6kw

Product Details:
Place of Origin: China
Brand Name: DZ
Certification: CE ISO
Model Number: HZ-360
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: wood
Delivery Time: 20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30sets/per month

Detail Information

Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas,Overseas Service Center Available
Product Name: Sand Core Shooting Machine Weight: 2000kg
Voltage: 220v/380v/415v Warranty: 1 Year
High Light:

Sand Casting Machine 9.6kw

,

415v Sand Casting Machine

,

72mm/s Sand Core Casting Machine

Product Description

Sand Core Making - Sand Casting Machine | Heating Power 9.6kw



Feature

  • Human-machine interface and imported high quality electronic control and pneumatic components/hydraulic device to ensure accurate and reliable control and easy operation.
  • There are three modes: manual, single action and automatic.
  • The shooting port is 70 degrees to the sand, away from the high temperature area, so that the perforation is easy to clean manually.
  • The machine is equipped with integral moving mechanism of the base, which can make the base move along the X and Y axes, so that the perforation of the opposite mold into the sand hole more convenient and accurate.
  • The movable die is equipped with the core pulling rack to meet the special requirements of the mold.

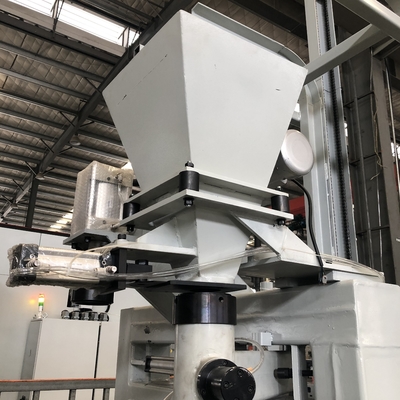

  • The angle of the quicksand in the sand storage bucket reaches 70 degrees and is equipped with a vibrating motor. It is suitable for the use of collapsible core sand with poor fluidity in the copper casting and aluminum industry.
  • With mold adjustment space, it is convenient to assemble different molds and reduce the requirements for the die size.

Fully automatic moulding machine is used to manufacture sand casting equipment. Its main functions are: filling sand, filling loose molding sand into the sand box; compacting the molding sand, compacting the loose molding sand in the sand box through different methods such as shock compaction, compaction, shock pressure, and injection pressure, so that the molding sand It has the necessary strength in the process of re-transportation and pouring; when the mold is released, different mechanisms are used to take out the shape from the compacted sand mold.



- Good working condition and labour saving.
- Dimensional stability
- Mould plate with high rate of utilization.
- High efficiency of moulding.





Code Item Specification
1 Max. Weight of Sand Core 8kg
2 Max. Size of Core Box ( L x W x H) (450*330*220)mm
3 Heating Plate ( L x W) (400*300)mm
4 Heating Power 9.6kw
5 Downward Stroke of Ejection Head ≤30mm
6 Stroke of Mold Opening ≤300mm
7 Max. Stroke of Core Remove 150mm
8 Conveyor ( L x W x H) (2200*450*100)mm
9 Total Power 13.2kw
10 Rising Angle of Conveyor 2°~4°
11 Speed of Transportation 72mm/s
12 Machine Size ( L x W x H) (3500*1480*3400)mm
13 Speed of Lift (Single Time) 35s
14 Weight of Lift ( Single Time) 5~10kg

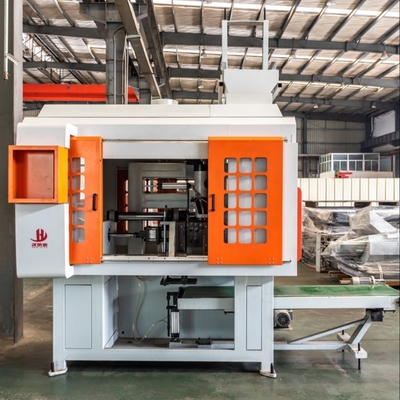

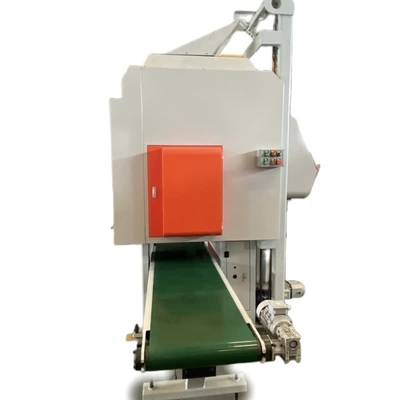

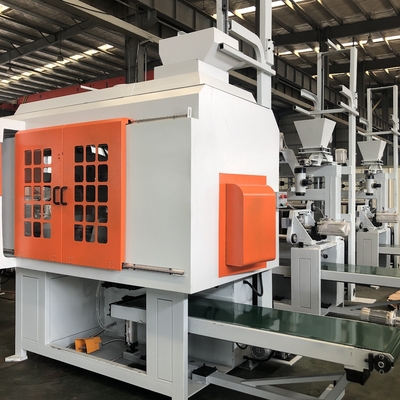

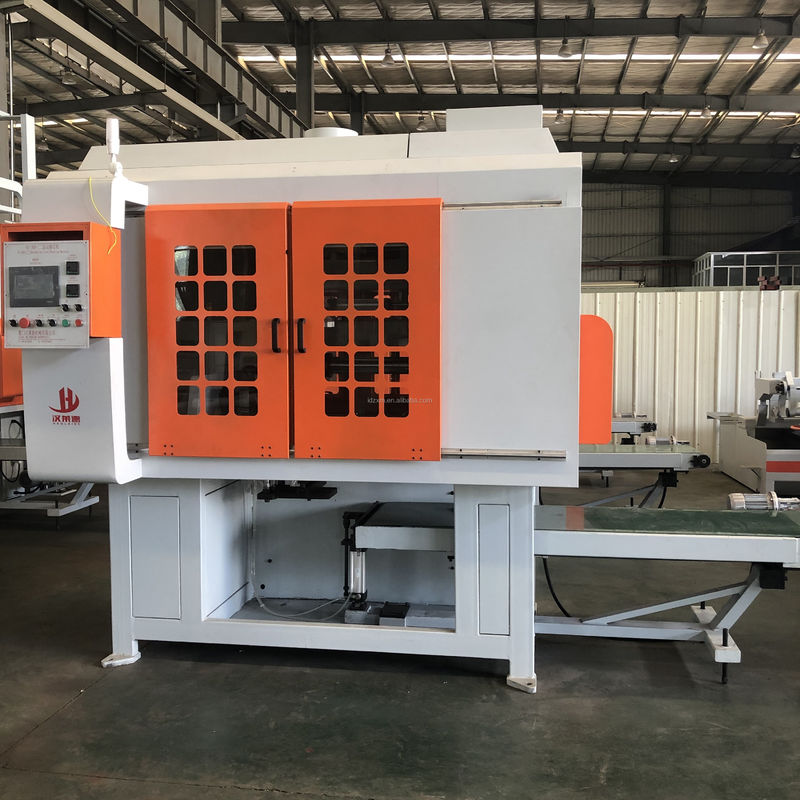

Sand Core Making Sand Casting Machine Heating Power 9.6kw 0Sand Core Making Sand Casting Machine Heating Power 9.6kw 1Sand Core Making Sand Casting Machine Heating Power 9.6kw 2Sand Core Making Sand Casting Machine Heating Power 9.6kw 3Sand Core Making Sand Casting Machine Heating Power 9.6kw 4Sand Core Making Sand Casting Machine Heating Power 9.6kw 5
