CE Approved DZ Sand Core Shooting Machine For Brass Faucet Manufacturing

Product Details:
Place of Origin: China
Brand Name: DZ
Certification: CE ISO
Model Number: HZ-360
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wood
Delivery Time: 20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30sets/per month

Detail Information

Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas,Overseas Service Center Available
Product Name: Sand Core Shooting Machine Weight: 2000kg
Voltage: 220v/380v/415v Warranty: 1 Year
High Light:

DZ Sand Core Shooting Machine

,

CE Approved Core Shooting Machine

,

Brass Faucet Core Shooter Machine

Product Description

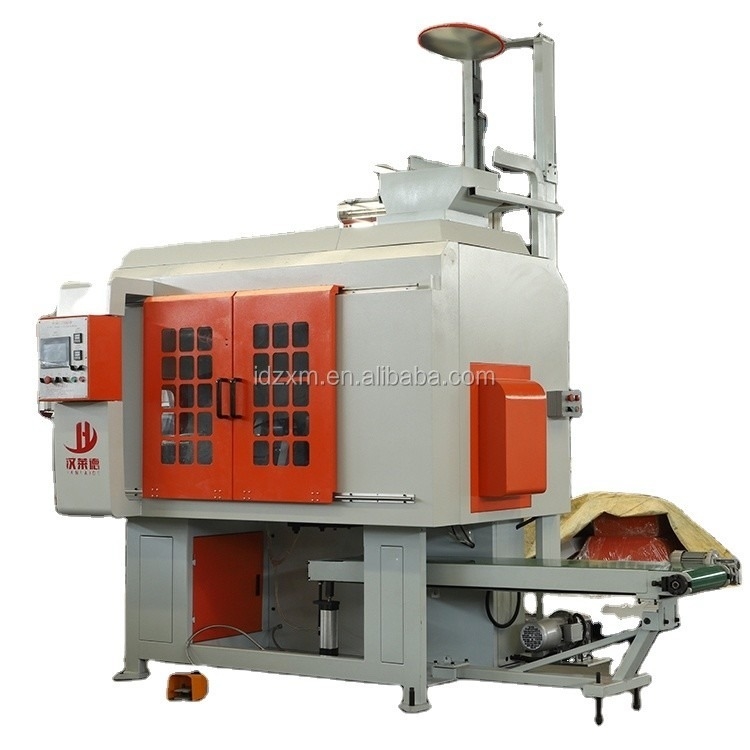

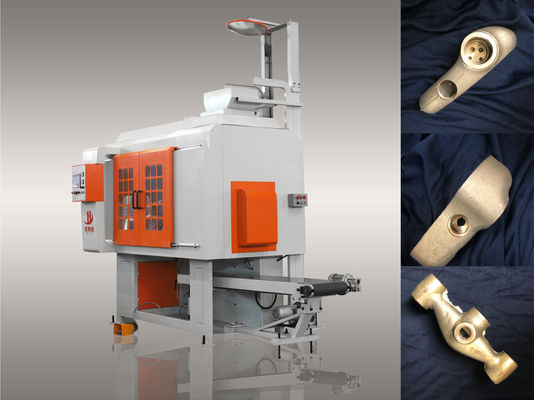

CE Approved DZ Sand Core Shooting Machine For Brass Faucet Manufacturing



Compression Brass Plumbing Fittings Core Shooter Machine Automatic Casting Sand Core Making Machine

Automatic Sand Core Shooting Machine With Precise Control And Easy Operation



Feature

  • Lager Die dimensions 400*450mm, high efficiency and save power cost.
  • The human-machine interface adopts imported high-quality electronic control and pneumatic components/hydraulic devices, the control is accurate and reliable, and the operation is convenient.
  • There are three modes: manual, single and automatic.
  • The perforation is located at a 70 degree Angle to the sand, away from the high temperature zone, making the perforation easy to clean manually.
  • The machine is equipped with the base overall movement mechanism, so that the base moves along the X and Y axis, so that the mold perforation into the sand hole more convenient and accurate.
  • The movable die is equipped with a core pulling frame to meet the special requirements of the die.
  • The Angle of quicksand in the barrel reaches 70 degrees and is equipped with vibration motor. It is suitable for the use of collapsible core sand with poor fluidity in copper and aluminum industries.
  • With mold adjustment space, it is easy to assemble different molds and reduce the requirement of mold size.




II:Main Technical Specifications
1 BASIC EQUIPMENT Specifications
  Max. Sand Core Weight 9kg
  Max. Cor Box size(L*W*H) (450*330*220)mm
  Heating Plate(L*W) (400*300)mm
  Heating Power 9.6kw
  Clamping stroke of the shooting head ≤30mm
  Die-opening Stroke ≤300mm
  Max.Core Pulling Stroke 150mm
  Conveyor Belt(L*W*H) (2200*450*100)mm
  Machine Power 2°~4°
  Conveyor Speed 72mm/s
  Machine Dimension(L*W*H) (3500*1480*3400)mm
  Lifting Speed(single cycle) 35s
  Lifting Capacity(Single cycle) 5~10kg
  Machine weight 2000kg
