Workpieces Metal Surface CNC Automatic Polishing Machine With 4 Stations

Product Details:
Place of Origin: China(Mainland)
Brand Name: DZ
Certification: CE ISO
Model Number: NC-64
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: wood
Delivery Time: 2 weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 units/per month

Detail Information

Condition: New Warranty: 1 Year
After-sales Service: Engineers Available To Service Machinery Overseas Usage: Metal Surface Polishing
Name: CNC Polishing Machine Polishing Wheel Size: 400mm-600mm
High Light:

CNC Automatic Polishing Machine

,

4 Stations Automatic Polishing Machine

,

Workpieces CNC Polishing Machine

Product Description

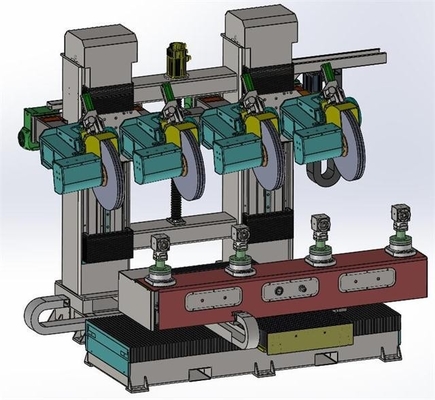

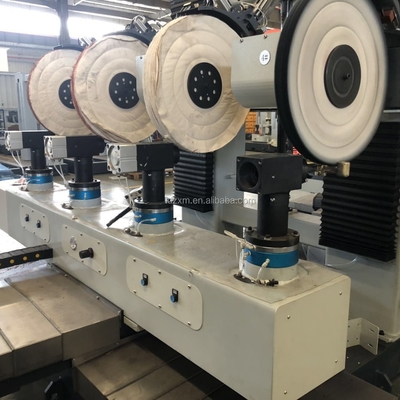

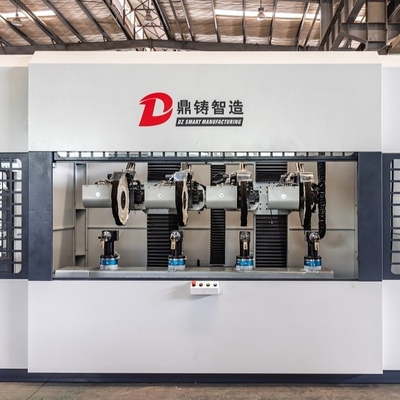

Workpieces Metal Surface Polishing Machine / CNC Automatic Polishing Machine With 4 Stations





-Save manpower and space. Only one person can use the equipment, which can realize the production value of 10-15 people by hand polishing, and the floor space is small, saving the factory.

-The quality of the polished workpiece is stable and uniform. It adopts fully automatic mechanical operation, which is not affected by the technical and emotional influence of employees. Through the program setting, the product can be uniformly polished in all directions. According to the different precision requirements of various parts of the product, the machine can set the angle polishing program and the complex parts of the workpiece. Strengthen the precision of polishing.

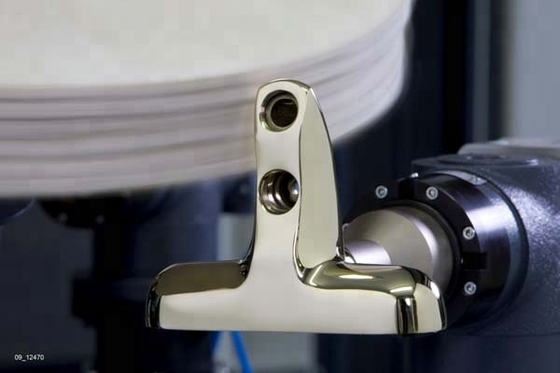

-After the workpiece has been polished by the machine, the mirror effect can be achieved, and the plating pass rate is high. For example, the same precision polished to 800 sand workpiece, the quality of the plating after polishing the machine is better. Because the workpiece is worn by the cloth wheel and the polishing wax, the wax we use is easy to handle before plating and does not affect the plating effect.



No.

Item

Parameters

1

Dimensions (L*W*H)

5000*3400*3000(L*W*H)

2

Machine Power

35KW

3

Rated Voltage

380V

4

Max. Diameter of polishing wheel

600mm

5

Min. Diameter of polishing wheel

400mm

6

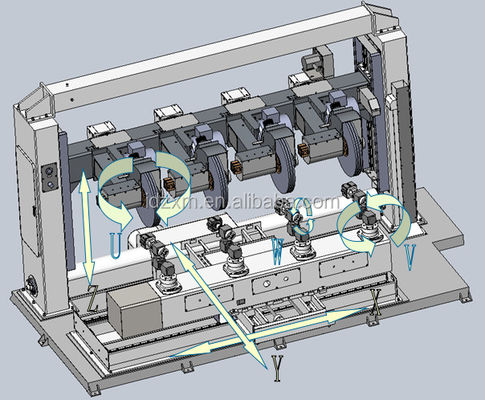

X-Axis travel (mm)

1200

7

Y-Axis travel (mm)

1100

8

Z-Axis travel (mm)

700

9

U-Axis travel (mm)

±90°

10

V-Axis travel (mm)

±360°

11

W-Axis travel (mm)

±360°

Workpieces Metal Surface CNC Automatic Polishing Machine With 4 Stations 0



Product categories

Workpieces Metal Surface CNC Automatic Polishing Machine With 4 Stations 1

Company Profile

Automatic Robot Grinding Machine Polishing For Surface Polish Treatment Of Brass Faucet / Door HandleAutomatic Robot Grinding Machine Polishing For Surface Polish Treatment Of Brass Faucet / Door Handle

Certifications

Automatic Robot Grinding Machine Polishing For Surface Polish Treatment Of Brass Faucet / Door HandleAutomatic Robot Grinding Machine Polishing For Surface Polish Treatment Of Brass Faucet / Door HandleAutomatic Robot Grinding Machine Polishing For Surface Polish Treatment Of Brass Faucet / Door Handle

FAQ

Q: could you please arrange the installation and commissioning ?
A: Yes , we could and the buyer pay the charge



Q: could you arrange the production education?
A: Yes , we could and the buyer pay the charge



Q:How long the guarantee?
A: one year and charge for repair the whole life.



Q: How about the lead time and delivery time of my order?
A: Large cargo 15-25 working days, depending on the quantity, and delivered according to the agreed time.
