Automatic Position Compensation Robotic Metal Deburring Machine For Brass Faucet

Product Details:
Place of Origin: China(Mainland)
Brand Name: DZ
Certification: CE ISO
Model Number: Robot
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wood
Delivery Time: 2 weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets/per month

Detail Information

Condition: New Warranty: 1 Year
After-sales Service: Rovided: Engineers Available To Service Machinery Overseas Name: Robotic Grinding Cell
Voltage: 380V Power: 11KW
High Light:

Brass Faucet Robotic Metal Deburring Machine

,

380V Automatic Metal Deburring Machine

,

Automatic Position Compensation Robotic Polishing Machine

Product Description

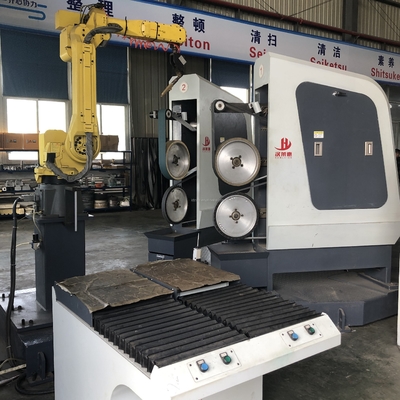

Automatic Position Compensation Robotic Metal Deburring Machine For Brass Faucet



TECHNICAAL PARAMETERS



Code Item 12G 20G 35G-I 35G-II 50G 210G
1 Robot Cell FUNAC FUNAC FUNAC FUNAC FUNAC FUNAC
2 Model M-10iD/12 M-20iA M-20iA/35M M-20iA/35M M-70iC/50E R-2000iC_210F
3 Voltage 380V 380V 380V 380V 380V 380V
4 Power 9KW 9KW 13KW 19KW 20.5KW 20.5KW
5 Grinding Machine Qty. 2 2 2 3 3 3
6 Sand Belt Qty. 4 4 4 6 6 6
7 Sand belt Dimensions 3000mm 3000mm 3600mm/4000mm 3600mm/4000mm 3600mm/4000mm 3600mm/4000mm
8 Feed Table 1 1 1 1 1 1







CHARACTERISTIC

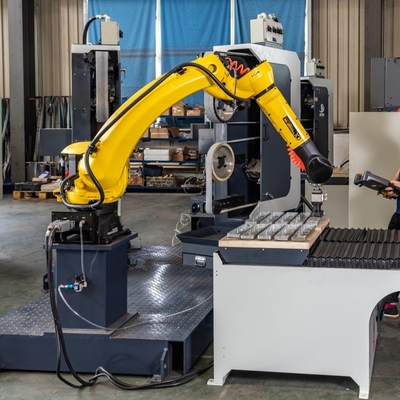

  1. The grinding robot machine is automatically controlled by an industrial robot, can be reprogrammed, and to achieving various kinds of grinding jobs in 3D space;
  2. FUNAC robotic arm

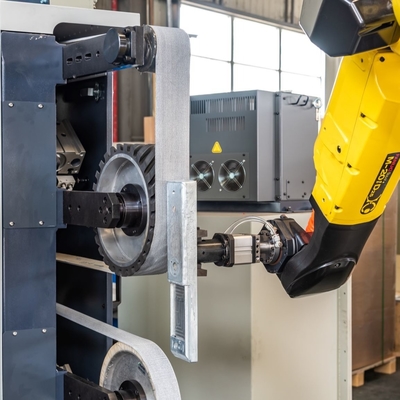

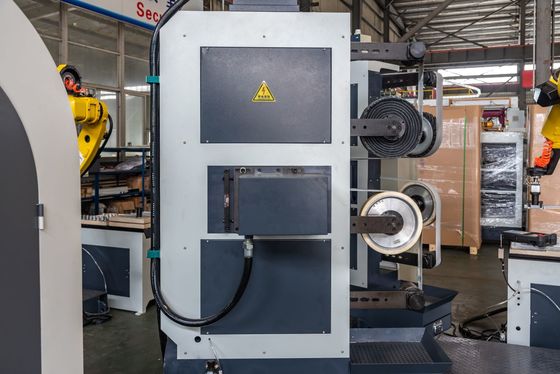

  3. The grinding machine has several grinding touches wheels, and in the process of grinding, the robot can control the rotating speed of the grinding machine, automatically adjust the tension of the sand belt, and choose the current available touch wheels.
  4. The machine has function of automatic position compensation. In the process of grinding, the machine detects the position of the wheels and automatically adjust the position of the wheels to compensate the position deviation of the wheels.
  5. The machine has the warning function of the breakage of sand belt, effectively get rid of the danger and waste of the idle running of the robot when the sand belt breaks.
  6. Offline program software for automatic grinding.
  7. We have professional programmer for grinding technical to ensure fully technical support and help you resolve the difficulty of grinding/polishing task, reducing the production time.
  8. Professional team to design the fixtures and professional fixtures design can increase the grinding/polishing effect dramatically.







Automatic Position Compensation Robotic Metal Deburring Machine For Brass Faucet 0Automatic Position Compensation Robotic Metal Deburring Machine For Brass Faucet 1Automatic Position Compensation Robotic Metal Deburring Machine For Brass Faucet 2Automatic Position Compensation Robotic Metal Deburring Machine For Brass Faucet 3Automatic Position Compensation Robotic Metal Deburring Machine For Brass Faucet 4
