Rotary Automatic Brass Tube CNC Polishing Machine High Efficient No Need Dusting

Product Details:
Place of Origin: China(Mainland)
Brand Name: DZ
Certification: CE ISO
Model Number: NC-64
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: Negotiable
Packaging Details: wood
Delivery Time: 2weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 units/per month

Detail Information

Dimensions (L*W*H): 4400*3400*2900 Machine Power: 35KW
Rated Voltage: 380V Max. Diameter Of Polishing Wheel: 600mm
Min. Diameter Of Polishing Wheel: 400mm X-Axis Travel (mm): 1200
Y-Axis Travel (mm): 1100 Z-Axis Travel (mm: 700
U-Axis Travel (mm): ±90° V-Axis Travel (mm): ±360°
W-Axis Travel (mm): ±360°
High Light:

Automatic Brass Tube CNC Polishing Machine

,

Rotary Automatic CNC Polishing Machine

,

35KW Rotary Automatic Polishing Machine

Product Description

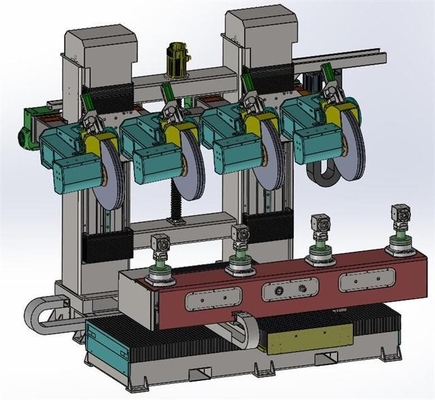

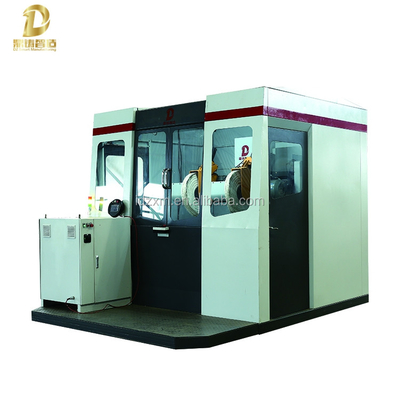

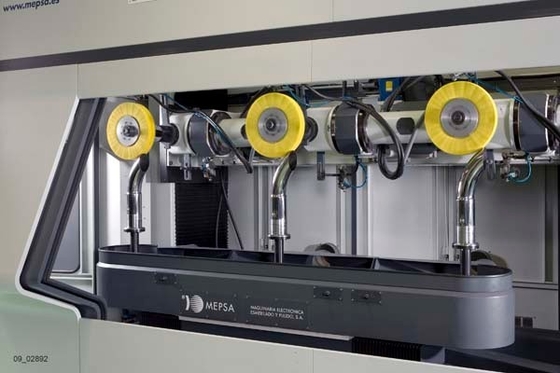

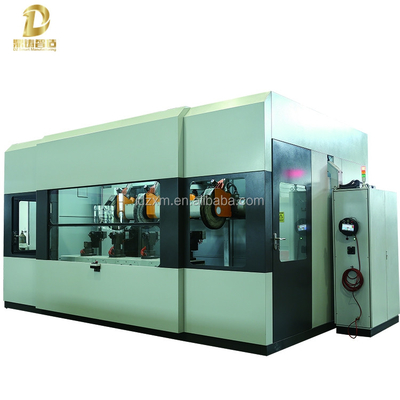

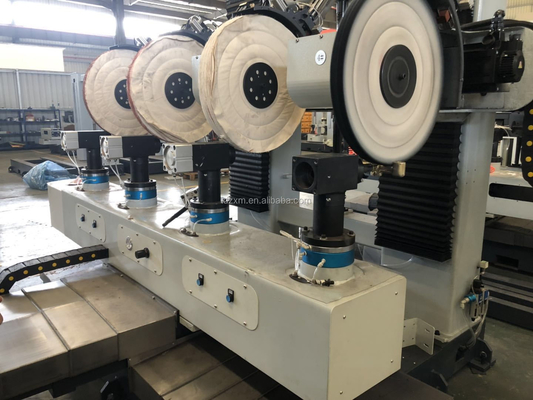

High Efficient Rotary Automatic Brass Tube CNC Polishing Machine No Need Dusting



Precision polishing.


- Uniform polishing quality without deformation of the processed parts.

- High production. Simultaneous polishing of two equal parts in each polishing cycle.

- Flexible production. Change of series in the minimum time. The time invested in the preparation of the machine for changing the type of part to polish is about 10 minutes.

- Quick replacement of the fixtures.

- Quick replacement of the polishing mops.

- Cost-reduction in the amount of fixtures.

- Important reduction in mops and polishing compounds consumption.

- Polishing system avoiding excessive temperature of the parts during the working process.

- Quick and easy programming. Interactive Teach System.

- High profitability and amortisation. One single operator can handle several machines by synchronizing the working cycles.

TECHNICAL PARAMETERS

No Items Specifications
1 Dimensions (L*W*H) 3000*3100*2900mm
2 Machine Power 17KW
3 Rated Voltage 380V
4 Max. Diameter of polishing wheel 600mm
5 Min. Diameter of polishing wheel 400mm
6 X-Axis travel (mm) 1100
7 Y-Axis travel (mm) 900
8 Z-Axis travel (mm) 700
9 U-Axis travel (mm) ±60°
10 V-Axis travel (mm) ±360°
11 W-Axis travel (mm) ±360°
12 Max.speed X axis 20m/min
13 Max.speed Y axis 20m/min
14 Max.speed Z axis 20m/min
15 Max.speed U axis 30°/sec.
16 Max.speed V axis 30°/sec.
17 Max.speed W axis 30°/sec.







Rotary Automatic Brass Tube CNC Polishing Machine High Efficient No Need Dusting 0Rotary Automatic Brass Tube CNC Polishing Machine High Efficient No Need Dusting 1Rotary Automatic Brass Tube CNC Polishing Machine High Efficient No Need Dusting 2Rotary Automatic Brass Tube CNC Polishing Machine High Efficient No Need Dusting 3Rotary Automatic Brass Tube CNC Polishing Machine High Efficient No Need Dusting 4Rotary Automatic Brass Tube CNC Polishing Machine High Efficient No Need Dusting 5Rotary Automatic Brass Tube CNC Polishing Machine High Efficient No Need Dusting 6
