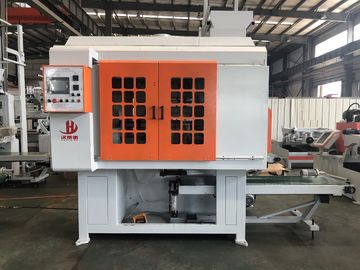

72mm/S Automatic Core Blowing Machine With Hydraulic Movements For Casting
| Brand Name: | DZ |
| Model Number: | HZ-360 |
| MOQ: | 1set |
| Packaging Details: | wood |
| Payment Terms: | L/C, T/T, Western Union |
Detail Information
Place of Origin:
China
Certification:
CE ISO
Condition:
New
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Overseas Service Center Available
Product Name:
Sand Core Shooting Machine
Weight:
2000kg
Voltage:
220v/380v/415v
Warranty:
1 Year
Delivery Time:
20days
Supply Ability:
30sets/per month
Highlight:
72mm/S Automatic Core Blowing Machine
,Hydraulic Automatic Core Blowing Machine
,220v Casting Sand Core Shooting Machine
Product Description
72mm/S Automatic Core Blowing Machine With Hydraulic Movements for Casting
Feature
-
Heavy steel structure
-
Chrome plated rounded protectedguides, with bronze sliding bushingsHydraulic automatic cores unloadingon a rubber conveyor belt by corecore box tilting
-
Electric heating with independenttemperature control for each halfcore box (13,5+13,5 kW)
-
Water cooled blowing headBlowing head plate withmicrometric regulation
-
Vibrator on blowing cylinderElectric power and control panelEjection bench sliding on brassesPLC Siemens
-
Automatic drawer for lower metalcore with thermoregulation
-
Static limit switches
-
Hydraulic valves and cylinders
| II:Main Technical Specifications | |||
| 1 | BASIC EQUIPMENT | Specifications | |
| Max. Sand Core Weight | 9kg | ||
| Max. Cor Box size(L*W*H) | (450*330*220)mm | ||
| Heating Plate(L*W) | (400*300)mm | ||
| Heating Power | 9.6kw | ||
| Clamping stroke of the shooting head | ≤30mm | ||
| Die-opening Stroke | ≤300mm | ||
| Max.Core Pulling Stroke | 150mm | ||
| Conveyor Belt(L*W*H) | (2200*450*100)mm | ||
| Machine Power | 2°~4° | ||
| Conveyor Speed | 72mm/s | ||
| Machine Dimension(L*W*H) | (3500*1480*3400)mm | ||
| Lifting Speed(single cycle) | 35s | ||
| Lifting Capacity(Single cycle) | 5~10kg | ||
| Machine weight | 2000kg | ||
