China CNC Polishing Machine manufacturer

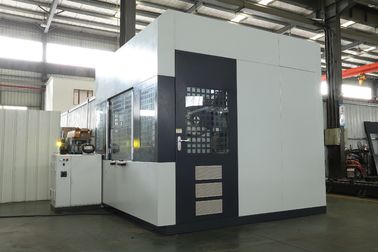

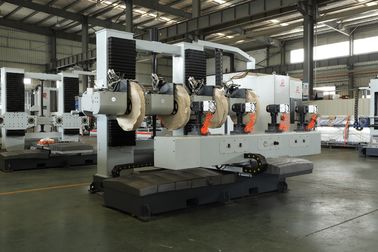

High Efficiency Multiple Stations Automatic Polishing Machine Digital Control

Product Details:
Place of Origin: CHINA
Brand Name: DZ
Certification: CE
Model Number: CNC
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: wood
Delivery Time: 20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30sets/per month

Detail Information

Voltage: 380V/50Hz Condition: New
Weight: 6000kg Dimension(l*w*h): 4400X3400X2900
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation,commissioning And Training Power(w): 125kw
Cnc Or Not: CNC Warranty: 1 Year
Control System: PLC Motor: Servo Motor
Function: Polish Surface,Polishing And Burishing,polishing Machine
High Light:

Multiple Stations Automatic Metal Polishing Machine


Digital Control Metal Surface Polishing Machine


380V Metal Surface Polishing Machine

Product Description

Hot Sale High Efficiency Four-Stations Smart Type Automatic Polishing Machine For Sanitary Ware Fitting



Precision polishing.

- Uniform polishing quality without deformation of the processed parts.

- High production. Simultaneous polishing of two equal parts in each polishing cycle.

- Flexible production. Change of series in the minimum time. The time invested in the preparation of the machine for changing the type of part to polish is about 10 minutes.

- Quick replacement of the fixtures.

- Quick replacement of the polishing mops.

- Cost-reduction in the amount of fixtures.

- Important reduction in mops and polishing compounds consumption.

- Polishing system avoiding excessive temperature of the parts during the working process.

- Quick and easy programming. Interactive Teach System.

- High profitability and amortisation. One single operator can handle several machines by synchronizing the working cycles.


Main technical parameters:

# Item Parameter Remarks
1 Size 4400*3400*2900(L×W×H) Machine Cabinet Size
2 Power 33KW
3 Rated Voltage 380V 50Hz
4 Max. Polishing Mop Diameter 600mm
5 Min. Polishing Mop Diameter 400mm
6 X Axis Travel 1100
7 Y Axis Travel 900
8 Z Axis Travel 700
9 U Axis Travel ±60°
10 V Axis Travel ±360°
11 W Axis Travel ±360°

High Efficiency Multiple Stations Automatic Polishing Machine Digital Control 0High Efficiency Multiple Stations Automatic Polishing Machine Digital Control 1



Q1. Where is your factory located? How can I visit it?
A: Our factory is located in Xiamen city, Fujian province, China.
Q2. Are you produce the polishing machine's specific parameters according to the samples?
A: Yes, we produce the machine you want by your samples or technical drawings. Usually, one machine has different molds and fixtures like a metal polishing machine, die casting machine.
Q3. What is your sample service?
A: We can supply the sample testing that which client wants to produce if we have ready machine in stock, but the customers have to pay the sample shipping cost.
Q4. What is the MOQ of your machine?
A: Normally our MOQ is 1 set.
Q5. Do you test all your machine before delivery?
A: Yes, we have 100% test before delivery.
Q6: How do you make our business a long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
