Brand Name: | DZ |
Model Number: | CNC |
MOQ: | 1 SET |
Price: | Negotiable |
Packaging Details: | wood |
Payment Terms: | L/C, T/T, Western Union |
Surface Polishing System CNC Polishing Machine Buffing Wheel Low Noise
1. Surface polishing system cnc polishing machine for polishing, grinding, satin finishing and deburring of different parts from the sectors of aerospace, automotive, etc.

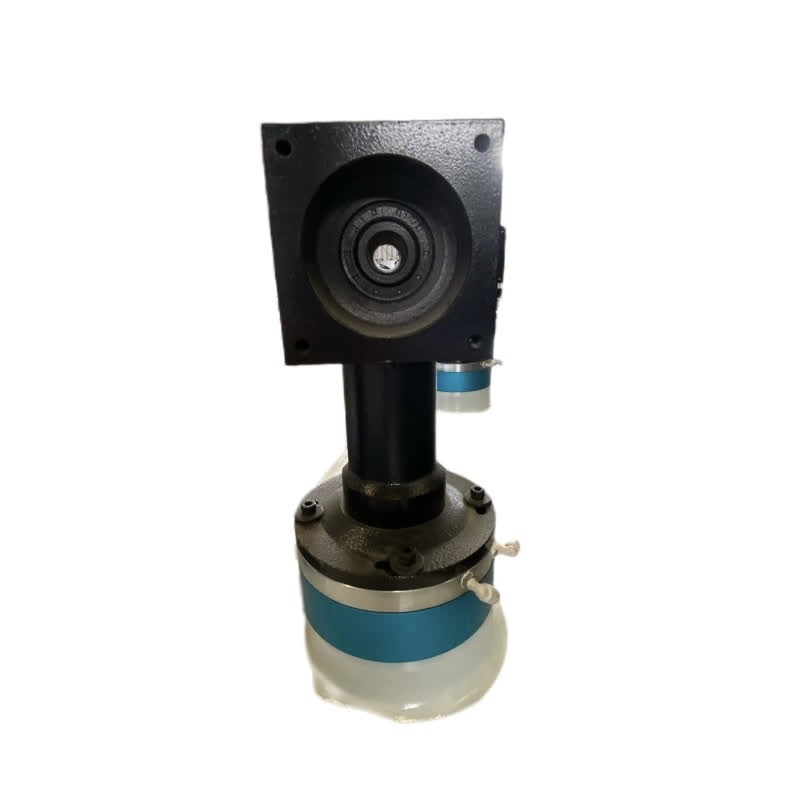

2. Automatic double open fixture, 360 degree freely rotating fixture,polish without any blind side.

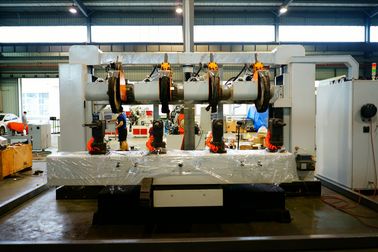

3. Expanding to four polishing wheels and four work pieces can finish the four same processes simultaneously, which is a kind of high output machine type.

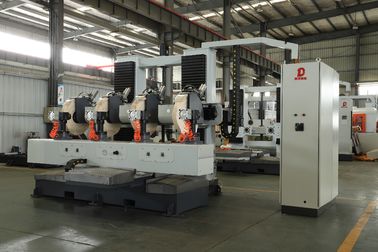

4. Four-Shaft and Four-Work Piece CNC Polishing Machine is suitable for automating the polishing of parts with irregular configurations and complex shapes. The design and performance make it a machine of universal application with presence in multiple sectors, mainly the faucet and bathroom fitting industry.
Main technical parameters:
CHARACTERISTIC
Precision polishing.
-Uniform polishing quality without deformation of the processed parts.
-High production. Simultaneous polishing of two equal parts in each polishing cycle.
-Flexible production. Change of series in the minimum time. The time invested in the preparation of the machine for changing the type of part to polish is about 10 minutes.
-Quick replacement of the fixtures.

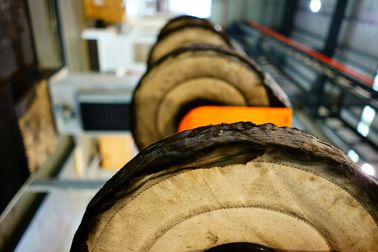

-Quick replacement of the polishing mops.
-Cost-reduction in the amount of fixtures.
-Important reduction in mops and polishing compounds consumption.
-Polishing system avoiding excessive temperature of the parts during the working process.
-Quick and easy programming. Interactive Teach System.
-High profitability and amortisation. One single operator can handle several machines by synchronizing the working cycles.
# | Item | Parameter | Remarks |
1 | Size | 4400*3400*2900(L×W×H) | Machine Cabinet Size |
2 | Power | 33KW | |
3 | Rated Voltage | 380V 50Hz | |
4 | Max. Polishing Mop Diameter | 600mm | |
5 | Min. Polishing Mop Diameter | 400mm | |
6 | X Axis Travel | 1100 | |
7 | Y Axis Travel | 900 | |
8 | Z Axis Travel | 700 | |
9 | U Axis Travel | ±60° | |
10 | V Axis Travel | ±360° | |
11 | W Axis Travel | ±360° |
![]() |
