Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | DZ |
| Certification: | CE |
| Model Number: | CNC |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 SET |
| Price: | Negotiable |
| Packaging Details: | wood |
| Delivery Time: | 20days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30sets/per month |
|
Detail Information |
|||
| Voltage: | 380V/50Hz | Condition: | New |
|---|---|---|---|
| Weight: | 6000kg | Dimension(l*w*h): | 4400X3400X2900 |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation,commissioning And Training | Power(w): | 125kw |
| Cnc Or Not: | CNC | Warranty: | 1 Year |
| Control System: | PLC | Motor: | Servo Motor |
| Function: | Polish Surface,Polishing And Burishing,polishing Machine | ||
| High Light: | Door Lock Surface Polishing Machine,Brass Faucet Surface Polishing Machine,4 Stations Metal Polish Machine |
||

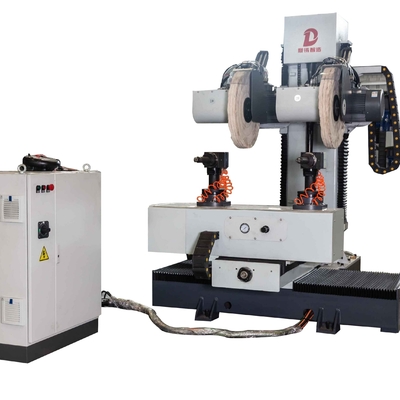

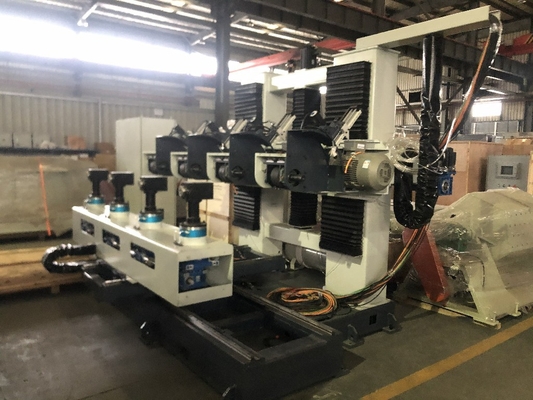

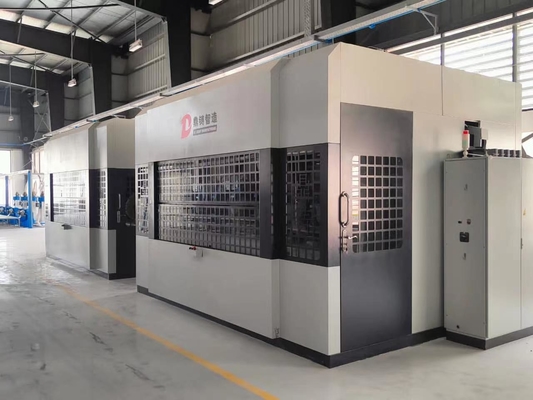

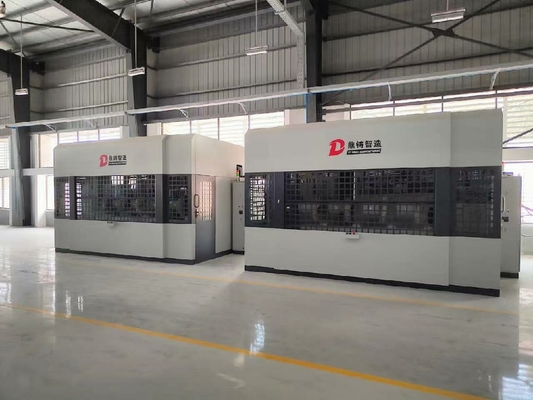

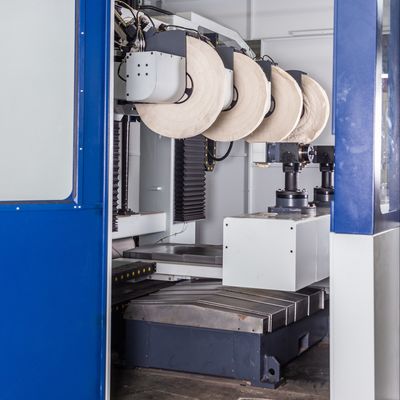

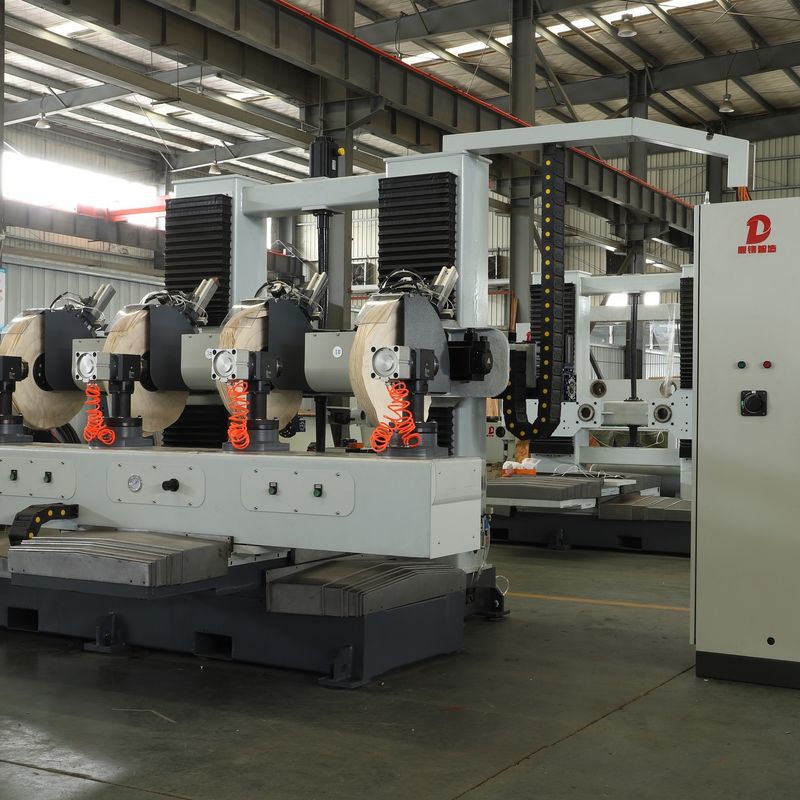

Product Description
A fully automatic polishing machine that can replace 6 polishing workers to help you break through the bottleneck of die casting polishing.
1. Efficiency; It can be produced in 24 hours.
2. Quality: realize polishing standardization.
3. Save labor cost; The related expenses and management of personnel are controllable.
4. Safety and environmental protection, closed polishing production, equipped with dust suction interface,
5. The cost is controllable, the patented solid wax mechanism, and the cost of consumables is low.
6. Polishing versatility, applicable to various shapes of zinc aluminum copper stainless steel materials.
Features of various polishing machines on the market
CHARACTERISTIC
Precision polishing.
-Uniform polishing quality without deformation of the processed parts.
-High production. Four working stations work simultaneously,and with one time programming,the machine can finish the polishing and buffing jobs of four work pieces one time.
-Full auto,waxing system;
-Quick replacement of the fixtures.
-Quick replacement of the polishing mops.
-Cost-reduction in the amount of fixtures.
-Important reduction in mops and polishing compounds consumption.
-Polishing system avoiding excessive temperature of the parts during the working process.
-Quick and easy programming. Interactive Teach System.
-Finish the polishing/buffing jobs in any angle and position;
-High profitability and amortisation. One single operator can handle several machines by synchronizing the working cycles.
|
No
|
project | DingZhu polishing machine | Robotic polishing machine | Special polishing machine | Remarks |
| 1 | quality | high | medium | low | |
| 2 | flexibility | Universal Angle, ensure that not deformation does not leakage |
Universal Angle, ensure that not deformation does not leakage
|
Easy to deformation and leakage
|
|
|
3
|
Wheel flexibility
|
The wheel is large to ensure the line speed and the wheel is flexible
|
The wheel is large to ensure the line speed and the wheel is flexible |
The wheels are small and not very flexible enough
|
|
| 4 | rigidity |
Good steel, the wheels can be pressed tightly and polished
|
Arms are too long, with poor steel performance | Good steel, the wheels can be pressed tightly and polished | |
| 5 | productivity | high | low | higher | |
|
6
|
Add wax
|
Solid wax, uniform, economical, and environmentally friendly | Liquid wax has a high cost, poor effect, and pollutes the equipment and the environment | Liquid wax has a high cost, poor effect, and pollutes the equipment and the environment | |
| 7 | Wheel loss | low | low | high | |
|
8
|
self-compensating | Coordinate and line speed compensation effect is good | Without this function, it affects the quality | Without this function, it affects the quality | |
|
9
|
frock
|
Small quantity, simple structure, low cost | Small quantity, simple structure, low cost | The number is very large, complex structure, high cost | |
| 10 | Programming time | Within 2 hours | 8 Hours | 8 Hours | |
|
11
|
Programming difficulty | Simple | Complicated | Complicated | |
|
12
|
Change the product
|
15 Minutes | 2 Hours | 8 Hours | Previous production procedures exist |
| 13 | safety | high | medium | low |
Q: could you please arrange the installation and commissioning ?
A: Yes , we could and the buyer pay the charge
Q: could you arrange the production education?
A: Yes , we could and the buyer pay the charge
Q:How long the guarantee?
A: one year and charge for repair the whole life.
Q: How about the lead time and delivery time of my order?
A: Large cargo 15-25 working days, depending on the quantity, and delivered according to the agreed time.
