|Place of Origin:||CHINA|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 SET|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||30sets/per month|
|After-sales Service Provided:||Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation,commissioning And Training||Power(w):||125kw|
|Cnc Or Not:||CNC||Warranty:||1 Year|
|Control System:||PLC||Motor:||Servo Motor|
|Function:||Polish Surface,Polishing And Burishing,polishing Machine|

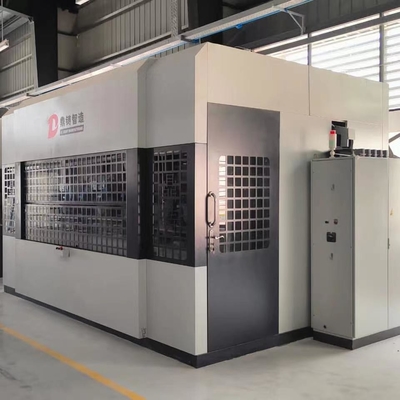

Four Stations Industrial Polishing Machine,
Sanitary Ware Fitting Industrial Polishing Machine,
PLC Copper Surface Automatic Polishing Machine

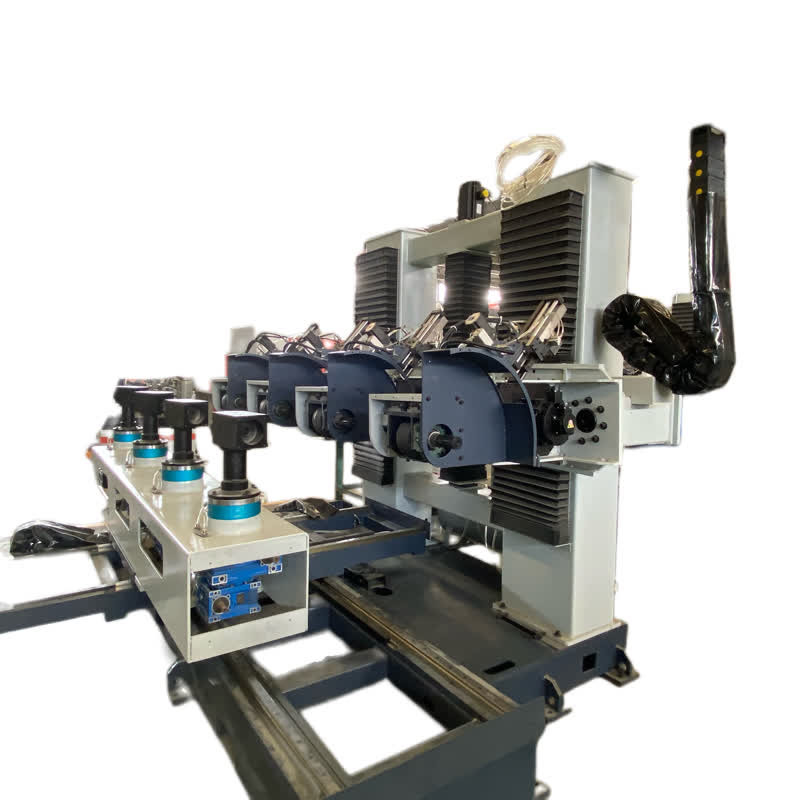

1. The automatic polishing machine is an exclusive polishing system consisting of 4 manipulators with 6 Axis rotary systems; Multiple stations' simultaneous operation ensures high flexibility and high production efficiency.
2. The control system adopts PROMAX motion control technology from Italy, with stable performance and high control accuracy.
3. Programming method: teaching programming, with the portable handed device, contains a manual mode to simulate the workmanship polishing and recording the track; automatically operating model is available with pre-set parameters program.
4. Polishing pressure and wear compensation control performance: When the polishing cloth wheel is worn out, the system can detect that the torque has become smaller and automatically the compensation in all directions.
5. Linear speed compensation: When the outer diameter of the cloth wheel is reduced, the system automatically increases the speed and compensation;
4. Program setting of add polishing wax: free setting of wax spraying time and frequency according to the characteristics of the product. choice of a slid compound or liquid compound.
7. Fully digital control, it can store 50 programs. Programs can be saved and recalled at any time.
8. CN/EN language display on Touch Panel. It is to set all parameters for an easy operation; fault codes display and alarm pages for quick troubles shooting and repair.
Main technical parameters:
|1||Size||4400*3400*2900(L×W×H)||Machine Cabinet Size|
|3||Rated Voltage||380V 50Hz|
|4||Max. Polishing Mop Diameter||600mm|
|5||Min. Polishing Mop Diameter||400mm|
|6||X Axis Travel||1100|
|7||Y Axis Travel||900|
|8||Z Axis Travel||700|
|9||U Axis Travel||±60°|
|10||V Axis Travel||±360°|
|11||W Axis Travel||±360°|
Q1. Where is your factory located? How can I visit it?
A: Our factory is located in Xiamen city, Fujian province, China.
Q2. Are you produce the polishing machine's specific parameters according to the samples?
A: Yes, we produce the machine you want by your samples or technical drawings. Usually, one machine has different molds and fixtures like a metal polishing machine, die casting machine.
Q3. What is your sample service?
A: We can supply the sample testing that which client wants to produce if we have ready machine in stock, but the customers have to pay the sample shipping cost.
Q4. What is the MOQ of your machine?
A: Normally our MOQ is 1 set.
Q5. Do you test all your machine before delivery?
A: Yes, we have 100% test before delivery.
Q6: How do you make our business a long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
