Metal Pneumatic Sand Core Shooter Machine For Mold Making

Product Details:
Place of Origin: China
Brand Name: DZ
Certification: CE ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: wooden case packing
Delivery Time: 20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20sets/per month

Detail Information

Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas,Overseas Service Center Available
Certification: ISO,CE Weight: 2000kg
Color: Customized Voltage: 220V / 380V / 415V
Function: Making Sand Core Warranty: 1 Year
Sorting Accuracy: ≥99.99%
High Light:

Pneumatic Sand Core Shooter Machine


Mold Making Sand Core Shooter Machine


Automatic Sand Core Shooting Machine

Product Description

China Manufacture Metal Electronic Control Sand Core Shooter Machine For Mold Making


1. human-machine interface and imported high quality electronic control and pneumatic components/hydraulic device to ensure accurate and reliable control and easy operation.
2. there are three modes: manual, single action and automatic.
3. the shooting port is 70 degrees to the sand, away from the high temperature area, so that the perforation is easy to clean manually .
4. The machine is equipped with integral moving mechanism of the base, which can make the base move along the X and Y axes, so that the perforation of the opposite mold into the sand hole more convenient and accurate.
5. The movable die is equipped with the core pulling rack to meet the special requirements of the mold.

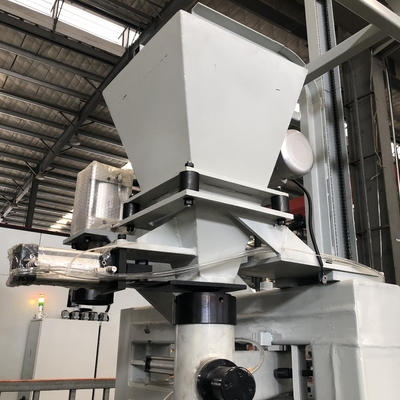

6. The angle of the quicksand in the sand storage bucket reaches 70 degrees and is equipped with a vibrating motor. It is suitable for the use of collapsible core sand with poor fluidity in the copper casting and aluminum industry.
7. With mold adjustment space, it is convenient to assemble different molds and reduce the requirements for the die size.



# Item Specification
1 Max. Weight of Sand Core  8kg
2 Max. Size of Core Box ( L x W x H)  (450*330*220)mm
3 Heating Plate ( L x W)  (400*300)mm
4 Heating Power 9.6kw
5 Downward Stroke of Ejection Head  ≤30mm
6 Stroke of Mold Opening  ≤300mm
7 Max. Stroke of Core Remove  150mm
8 Conveyor ( L x W x H)  (2200*450*100)mm
9 Total Power  13.2kw
10 Rising Angle of Conveyor  2°~4°
11 Speed of Transportation  72mm/s
12 Machine Size ( L x W x H)  (3500*1480*3400)mm
13 Speed of Lift (Single Time)  35s
14 Weight of Lift ( Single Time)  10kg
15 Total Weight 2000kg

Hydraulic pressure

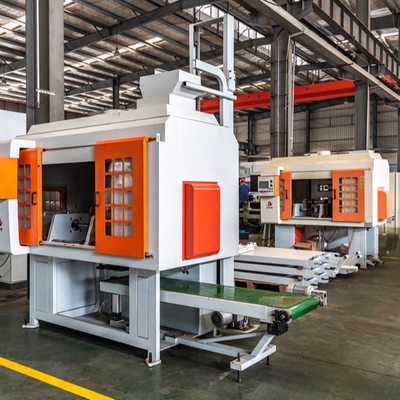

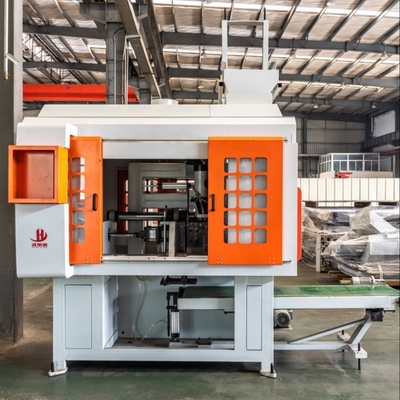

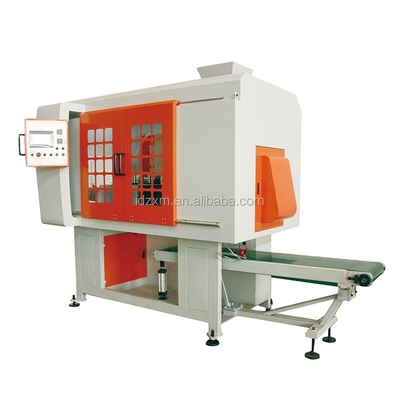

Metal Pneumatic Sand Core Shooter Machine For Mold Making 0Metal Pneumatic Sand Core Shooter Machine For Mold Making 1

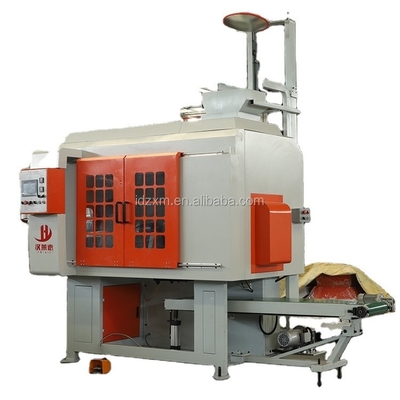

Metal Pneumatic Sand Core Shooter Machine For Mold Making 2


Q1. Where is your factory located? How can I visit it?

A: Our factory is located in Xiamen city, Fujian province, China.
Q2. Are you produce the machine’s specific parameters according to the samples?
A: Yes, we produce the sand core shooting machine you want by your samples or technical drawings. Usually, one machine has different molds and fixtures like a metal polishing machine, die casting machine.
Q3. What is your sample service?
A: We can supply the sample testing that which client wants to produce if we have a ready machine in stock, but the customers have to pay the sample shipping cost.

Q4. What is the MOQ of your machine?
A: Normally our MOQ is 1 set.
Q5. Do you test all your machine before delivery?
A: Yes, we have 100% test before delivery.
Q6: How do you make our business a long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
