High Flexibility Metal Surface Grinding Robot Sanitation Fittings Stainless Steel Door Handle Polishing Machine
| Brand Name: | DZ |
| Model Number: | HLD-50E |
| MOQ: | 1 |
| Price: | Negotiable |
| Packaging Details: | wood |
| Payment Terms: | L/C,T/T,Western Union |
Detail Information
Place of Origin:
China
Certification:
CE
Weight:
4000KG
Voltage:
380V/50Hz
Condition:
100%New
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Maintenance And Repair Service,Field Installation
Use:
Machining, Deburring, Grinding, Polishing
Type:
Angle Polisher
Warranty:
1 Year
Name:
Grinding Robotic
Function:
Machining, Deburring, Grinding, Polishing
Delivery Time:
30 days
Supply Ability:
30sets / month
Highlight:
Grinding CNC Polishing Machine
,Metal High Flexibility CNC Polishing Machine
,Robotic Surface CNC Grinding Machine
Product Description
High Flexibility Metal Surface Grinding Robot Sanitation Fittings Stainless Steel Door Handle Polishing Machine

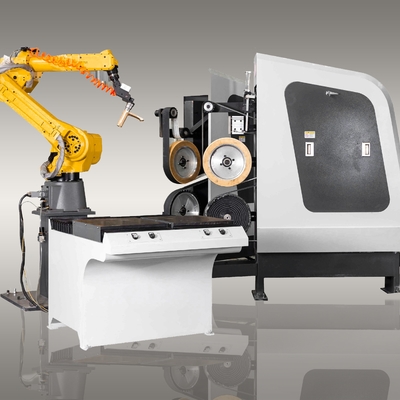

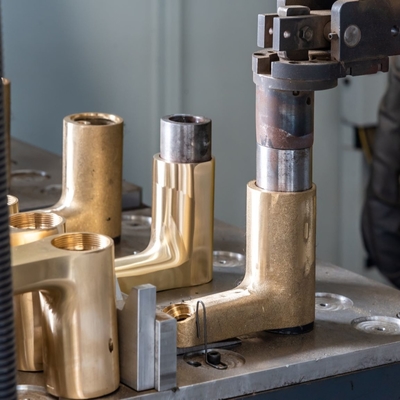

Robotic grinding cell designed for processing brass faucets, zamak levers, shower heads, and various sanitary ware components with high precision and efficiency.
Key Features
- Compact design with minimal space requirements
- Customizable layout compatible with various robot brands
- Multiple applications: machining, deburring, grinding, polishing, satin finishing
- Customized HMI for easy adjustment and operation
- High adaptability for multiple part geometries
- Calibration system ensuring process repeatability
- Capable of processing complex geometries
- Up to 100% surface grinding coverage
Technical Characteristics
- FANUC robotic M-20iA/35M integration
- Modular programming with self-learning system
- Demonstrator programming with portable handheld device
- Manual mode for simulating grinding workmanship and recording tracks
- Automatic operation with pre-set parameter programs
- Full digital control with program save/recall capability

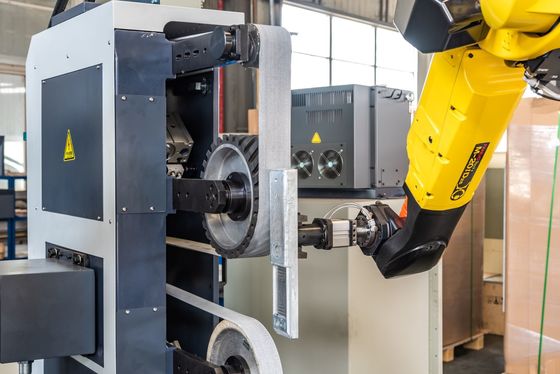

- Rotary sand belt machine with multi-grade sandpaper processing
- High precision and high efficiency operation
Technical Specifications
| Parameter | Specification |
|---|---|
| Working Area | 1800 × 2500 mm |
| Feed Height | 200 mm |
| Transmission | X/Y rack and pinion, Z ball screw |
| Table Structure | T-slot with clamp |
| Spindle Power | 4.5 KW × 2 |
| Spindle Speed | 24,000 rpm |
| Travelling Speed | 25 m/min |
| Working Speed | 20 m/min |
| Working Delicacy | 0.005 mm |
| Repositioning Accuracy | 0.05 mm |
| Driving Motor | Stepper |
| Control System | DSP/Ncstudio Control System |
| Command Code | G Code, *.u00, *.mmg, *.plt |
| Power (without spindle) | 1500 W |
| Voltage | AC380/50HZ |
| Running Environment | Temperature: 0°C ~ 45°C |
| Software | Artcam/Type3, other CAD/CAM |

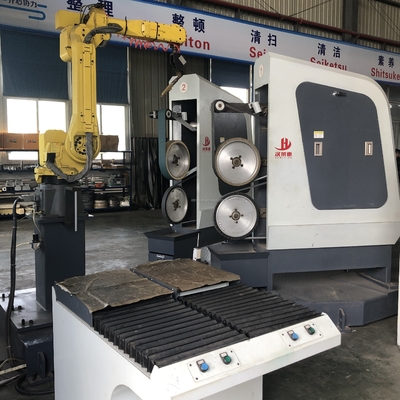

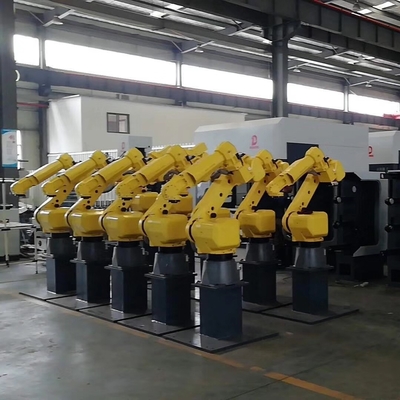

Product Images
Frequently Asked Questions
Q1. Where is your factory located? How can I visit it?
Our factory is located in Xiamen city, Fujian province, China. You can fly to Jinjiang or Xiamen airport, and we will arrange pickup service.
Q2. Do you produce polishing machines with specific parameters according to samples?
Yes, we customize machines based on your samples or technical drawings. Our machines typically include different molds and fixtures for various applications.
Q3. What is your sample service?
We provide sample testing services for products clients want to produce, provided we have the required machine in stock. Customers are responsible for sample shipping costs.
Q4. What is your MOQ for machines?
Our minimum order quantity is normally 1 set.
Q5. Do you test all machines before delivery?
Yes, we perform 100% testing on all machines before delivery to ensure quality and performance.
Q6. How do you maintain long-term business relationships?
We maintain good quality and competitive pricing to ensure customer benefits. We value every customer relationship and approach business with sincerity and friendship.
