Fully Automatic Sand Core Shooting Machine For Aluminum Industry

Product Details:
Place of Origin: China
Brand Name: DZ
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: wooden case packing
Delivery Time: 20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20sets/per month

Detail Information

Certification: ISO,CE Condition: New
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Overseas Service Center Available Weight: 2000kg
Color: Customized Voltage: 220V / 380V / 415V
Function: Making Sand Core Warranty: 1 Year
Sorting Accuracy: ≥99.99%
High Light:

Aluminum Industry Sand Core Shooting Machine


Fully Automatic Core Shooting Machine


ISO Sand Core Automatic Shooting Machine

Product Description

Fully Automatic Electronic Control Sand Core Shooter Machine Automatic Core Shooting Machine


1. human-machine interface and imported high quality electronic control and pneumatic components/hydraulic device to ensure accurate and reliable control and easy operation.
2. there are three modes: manual, single action and automatic.
3. the shooting port is 70 degrees to the sand, away from the high temperature area, so that the perforation is easy to clean manually .
4. The machine is equipped with integral moving mechanism of the base, which can make the base move along the X and Y axes, so that the perforation of the opposite mold into the sand hole more convenient and accurate.
5. The movable die is equipped with the core pulling rack to meet the special requirements of the mold.
6. The angle of the quicksand in the sand storage bucket reaches 70 degrees and is equipped with a vibrating motor. It is suitable for the use of collapsible core sand with poor fluidity in the copper casting and aluminum industry.
7. With mold adjustment space, it is convenient to assemble different molds and reduce the requirements for the die size.



# Item Specification
1 Max. Weight of Sand Core  8kg
2 Max. Size of Core Box ( L x W x H)  (450*330*220)mm
3 Heating Plate ( L x W)  (400*300)mm
4 Heating Power 9.6kw
5 Downward Stroke of Ejection Head  ≤30mm
6 Stroke of Mold Opening  ≤300mm
7 Max. Stroke of Core Remove  150mm
8 Conveyor ( L x W x H)  (2200*450*100)mm
9 Total Power  13.2kw
10 Rising Angle of Conveyor  2°~4°
11 Speed of Transportation  72mm/s
12 Machine Size ( L x W x H)  (3500*1480*3400)mm
13 Speed of Lift (Single Time)  35s
14 Weight of Lift ( Single Time)  10kg
15 Total Weight 2000kg

Hydraulic pressure

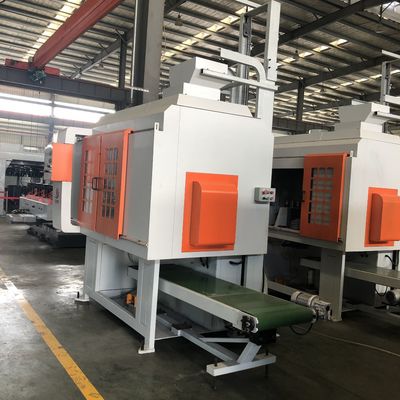

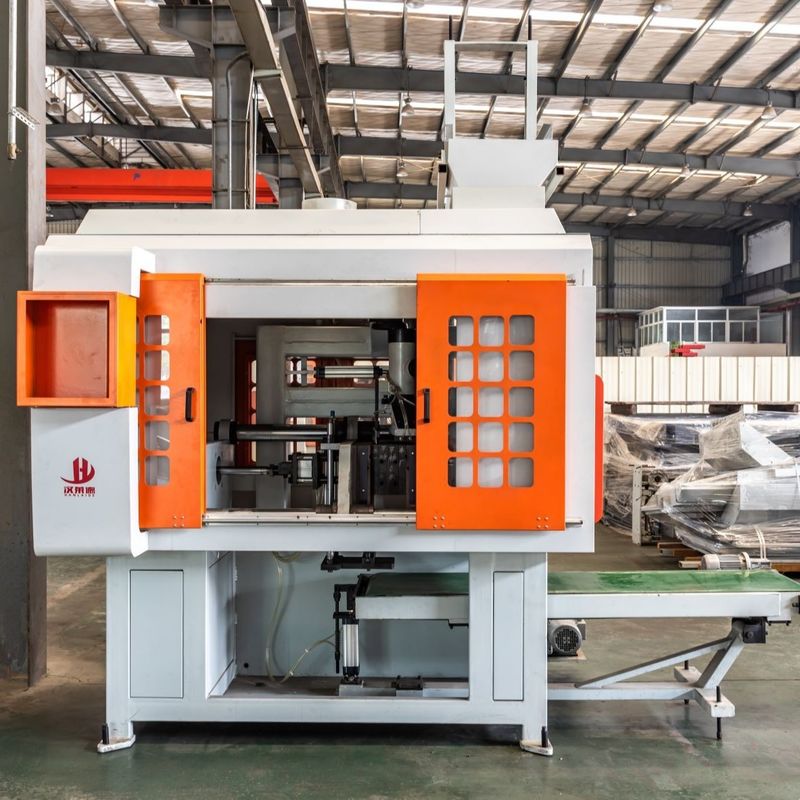

Fully Automatic Sand Core Shooting Machine For Aluminum Industry 0Fully Automatic Sand Core Shooting Machine For Aluminum Industry 1Fully Automatic Sand Core Shooting Machine For Aluminum Industry 2Fully Automatic Sand Core Shooting Machine For Aluminum Industry 3
