Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | DZ |
| Certification: | CE |
| Model Number: | CNC |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 SET |
| Price: | Negotiable |
| Packaging Details: | wood |
| Delivery Time: | 20days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30sets/per month |
|
Detail Information |
|||
| Voltage: | 380V/50Hz | Condition: | New |
|---|---|---|---|
| Weight: | 6000kg | Dimension(l*w*h): | 4400X3400X2900 |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation,commissioning And Training | Power(w): | 125kw |
| Cnc Or Not: | CNC | Warranty: | 1 Year |
| Control System: | PLC | Motor: | Servo Motor |
| Function: | Polish Surface,Polishing And Burishing,polishing Machine | ||
| High Light: | High Flexibility Grinding Buffing Machine,Four Stations Grinding And Buffing Machine,Automotive Parts Grinding Buffing Machine |
||
Product Description

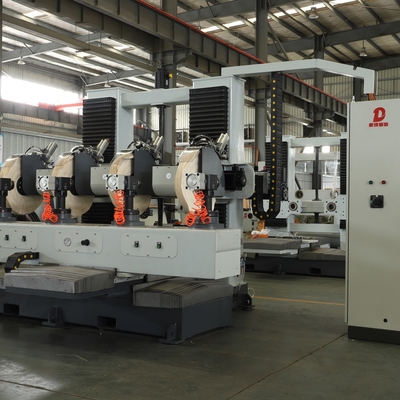

Surface Polishing System CNC Polishing Machine Buffing Wheel Low Noise
1. Surface polishing system cnc polishing machine for polishing, grinding, satin finishing and deburring of different parts from the sectors of aerospace, automotive, etc.
2. Automatic double open fixture, 360 degree freely rotating fixture,polish without any blind side.
3. Expanding to four polishing wheels and four work pieces can finish the four same processes simultaneously, which is a kind of high output machine type.
4. Four-Shaft and Four-Work Piece CNC Polishing Machine is suitable for automating the polishing of parts with irregular configurations and complex shapes. The design and performance make it a machine of universal application with presence in multiple sectors, mainly the faucet and bathroom fitting industry.
Main technical parameters:
| # | Item | Parameter | Remarks |
| 1 | Size | 4400*3400*2900(L×W×H) | Machine Cabinet Size |
| 2 | Power | 33KW | |
| 3 | Rated Voltage | 380V 50Hz | |
| 4 | Max. Polishing Mop Diameter | 600mm | |
| 5 | Min. Polishing Mop Diameter | 400mm | |
| 6 | X Axis Travel | 1100 | |
| 7 | Y Axis Travel | 900 | |
| 8 | Z Axis Travel | 700 | |
| 9 | U Axis Travel | ±60° | |
| 10 | V Axis Travel | ±360° | |
| 11 | W Axis Travel | ±360° |
