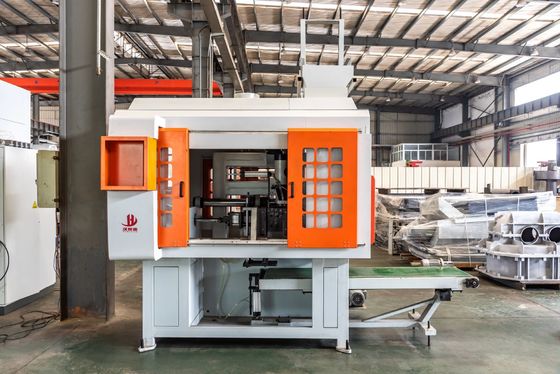

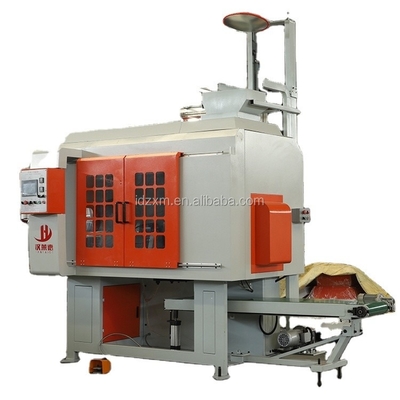

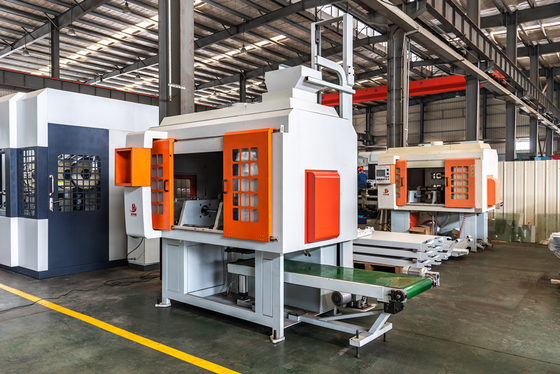

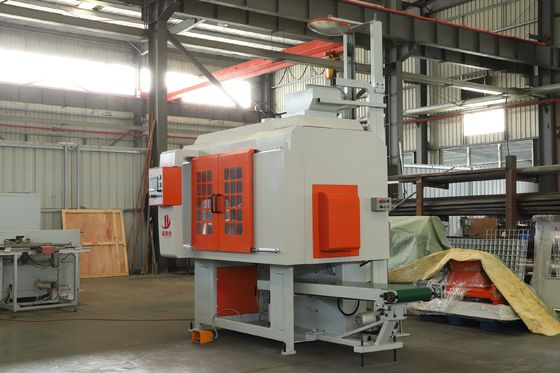

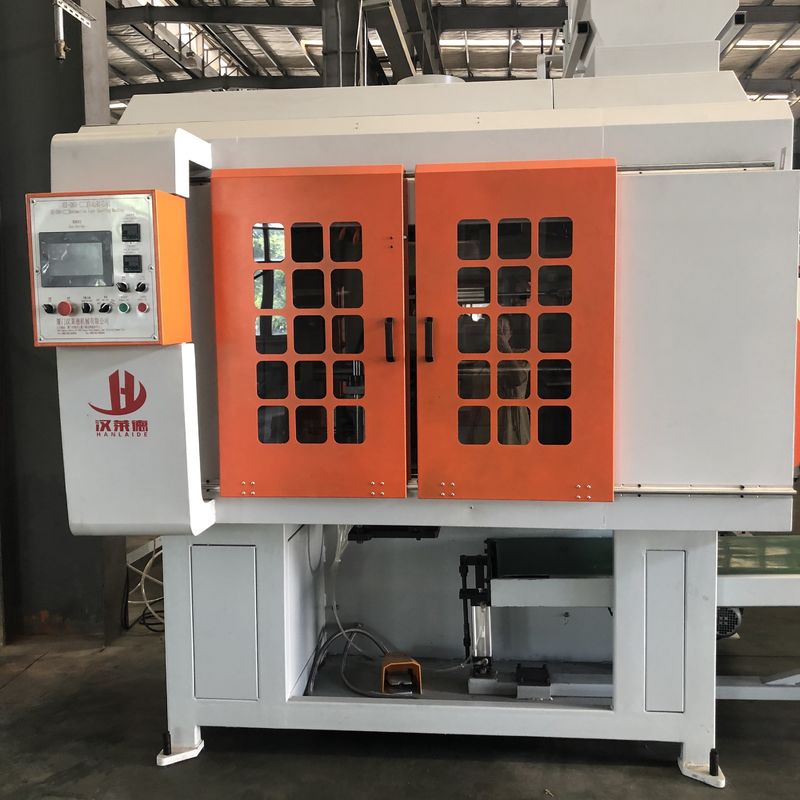

Electronic Control Sand Core Shooter Machine Automatic Core Shooting Machine

Brand Name:	DZ
MOQ:	1set
Packaging Details:	wooden case packing
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

Certification:

CE ISO

Condition:

New

After-sales Service Provided:

Engineers Available To Service Machinery Overseas,Overseas Service Center Available

Certification:

ISO,CE

Weight:

2000kg

Color:

Customized

Voltage:

220V / 380V / 415V

Function:

Making Sand Core

Warranty:

1 Year

Sorting Accuracy:

≥99.99%

Minimum Order Quantity:

1set

Packaging Details:

wooden case packing

Delivery Time:

20days

Payment Terms:

L/C, T/T, Western Union

Supply Ability:

20sets/per month

Highlight:

70 Degrees Sand Core Shooter Machine

Customized Automatic Core Shooting Machine

CE Certification Sand Core Shooter

Product Description

Automatic Core Shooters With Automatic Sand Feeder

Feature

1. human-machine interface and imported high quality electronic control and pneumatic components/hydraulic device to ensure accurate and reliable control and easy operation.
2. there are three modes: manual, single action and automatic.
3. the shooting port is 70 degrees to the sand, away from the high temperature area, so that the perforation is easy to clean manually .
4. The machine is equipped with integral moving mechanism of the base, which can make the base move along the X and Y axes, so that the perforation of the opposite mold into the sand hole more convenient and accurate.
5. The movable die is equipped with the core pulling rack to meet the special requirements of the mold.
6. The angle of the quicksand in the sand storage bucket reaches 70 degrees and is equipped with a vibrating motor. It is suitable for the use of collapsible core sand with poor fluidity in the copper casting and aluminum industry.
7. With mold adjustment space, it is convenient to assemble different molds and reduce the requirements for the die size.

#	Item	Specification
1	Max. Weight of Sand Core	8kg
2	Max. Size of Core Box ( L x W x H)	(450330220)mm
3	Heating Plate ( L x W)	(400*300)mm
4	Heating Power	9.6kw
5	Downward Stroke of Ejection Head	≤30mm
6	Stroke of Mold Opening	≤300mm
7	Max. Stroke of Core Remove	150mm
8	Conveyor ( L x W x H)	(2200450100)mm
9	Total Power	13.2kw
10	Rising Angle of Conveyor	2°~4°
11	Speed of Transportation	72mm/s
12	Machine Size ( L x W x H)	(350014803400)mm
13	Speed of Lift (Single Time)	35s
14	Weight of Lift ( Single Time)	10kg
15	Total Weight	2000kg
16	Hydraulic pressure	50Kg/cm²
