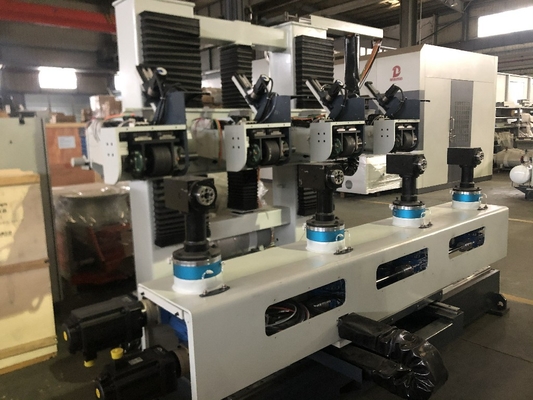

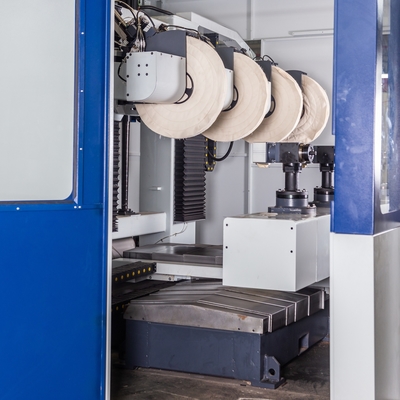

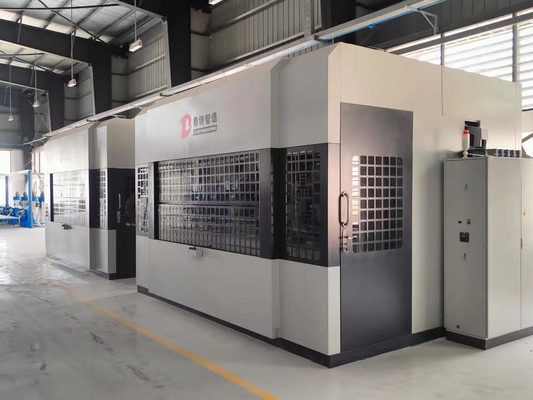

4 Stations Auto Surface Grinding Polishing Machine for Brass Sanitary Ware Parts

Product Details:
Place of Origin: CHINA
Brand Name: DZ
Certification: CE
Model Number: CNC
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: wood
Delivery Time: 20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30sets/per month

Detail Information

Voltage: 380V/50Hz Condition: New
Weight: 6000kg Dimension(l*w*h): 4400X3400X2900
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation,commissioning And Training Power(w): 125kw
Cnc Or Not: CNC Warranty: 1 Year
Control System: PLC Motor: Servo Motor
Function: Polish Surface,Polishing And Burishing,polishing Machine
High Light:

Sanitary Wares Grinding Polishing Machine

,

4 Stations Grinding Polishing Machine

,

Brass Parts Grinding And Polishing Machine

Product Description



Surface Polishing System CNC Polishing Machine Buffing Wheel Low Noise



Advanages:

1. Surface polishing system cnc polishing machine for polishing, grinding, satin finishing and deburring of different parts from the sectors of aerospace, automotive, etc.

2. Automatic double open fixture, 360 degree freely rotating fixture,polish without any blind side.

3. Expanding to four polishing wheels and four work pieces can finish the four same processes simultaneously, which is a kind of high output machine type.

4. Four-Shaft and Four-Work Piece CNC Polishing Machine is suitable for automating the polishing of parts with irregular configurations and complex shapes. The design and performance make it a machine of universal application with presence in multiple sectors, mainly the faucet and bathroom fitting industry.

Main technical parameters:

# Item Parameter Remarks
1 Size 4400*3400*2900(L×W×H) Machine Cabinet Size
2 Power 33KW
3 Rated Voltage 380V 50Hz
4 Max. Polishing Mop Diameter 600mm
5 Min. Polishing Mop Diameter 400mm
6 X Axis Travel 1100
7 Y Axis Travel 900
8 Z Axis Travel 700
9 U Axis Travel ±60°
10 V Axis Travel ±360°
11 W Axis Travel ±360°

4 Stations Auto Surface Grinding Polishing Machine for Brass Sanitary Ware Parts 04 Stations Auto Surface Grinding Polishing Machine for Brass Sanitary Ware Parts 1
