Product Details:
|
|
| Place of Origin: | China(Mainland) |
|---|---|
| Brand Name: | DZ |
| Certification: | CE ISO |
| Model Number: | NC-62 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1Set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Delivery Time: | 30work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100set/sets per month |
|
Detail Information |
|||
| Dimensions (L*W*H): | 3000*3100*2900mm | Machine Power: | 16.5KW |
|---|---|---|---|
| Rated Voltage: | 380V | Max. Diameter Of Polishing Wheel: | 600mm |
| Min. Diameter Of Polishing Wheel: | 400mm | X-Axis Travel (mm): | 1200 |
| Y-Axis Travel (mm): | 1100 | Z-Axis Travel (mm): | 700 |
| U-Axis Travel (mm): | ±90° | V-Axis Travel (mm): | ±360° |
| W-Axis Travel (mm): | ±360° | Name: | Robotic Polishing Machine |
| High Light: | Bath Mixer Robot Grinding Machine,Bath Handles Polishing Brightening Machine,380V Grinding Polishing Brightening Machine |
||
Product Description
I.Layout
|
No
|
project | DingZhu polishing machine | Robotic polishing machine | Special polishing machine | Remarks |
| 1 | quality | high | medium | low | |
| 2 | flexibility | Universal Angle, ensure that not deformation does not leakage |
Universal Angle, ensure that not deformation does not leakage
|
Easy to deformation and leakage
|
|
|
3
|
Wheel flexibility
|
The wheel is large to ensure the line speed and the wheel is flexible
|
The wheel is large to ensure the line speed and the wheel is flexible |
The wheels are small and not very flexible enough
|
|
| 4 | rigidity |
Good steel, the wheels can be pressed tightly and polished
|
Arms are too long, with poor steel performance | Good steel, the wheels can be pressed tightly and polished | |
| 5 | productivity | high | low | higher | |
|
6
|
Add wax
|
Solid wax, uniform, economical, and environmentally friendly | Liquid wax has a high cost, poor effect, and pollutes the equipment and the environment | Liquid wax has a high cost, poor effect, and pollutes the equipment and the environment | |
| 7 | Wheel loss | low | low | high | |
|
8
|
self-compensating | Coordinate and line speed compensation effect is good | Without this function, it affects the quality | Without this function, it affects the quality | |
|
9
|
frock
|
Small quantity, simple structure, low cost | Small quantity, simple structure, low cost | The number is very large, complex structure, high cost | |
| 10 | Programming time | Within 2 hours | 8 Hours | 8 Hours |
II.CHARACTERISTIC:
2.1.The grinding robot machine is automatically controlled by a industrial robot,can be and to
reporgrammed,achieving various kinds of grinding jobs in 3D space;
2.2.FUNAC robotic arm

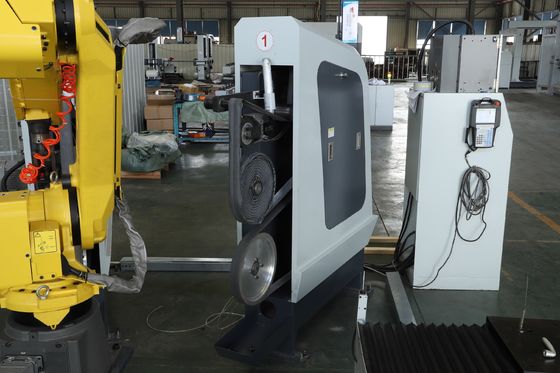

2.3.The grinding machine has several grinding touch wheels,and in the process of grinding,the robot
can control the rotating speed of the grinding machine,automatically adjust the tension of the sand
belt,and choose the current available touch wheels.
2.4.The machine has function of automatic position compensation.In the process of grinding,the
machine detect the position of the wheels and automatically adjust the position of the wheels to
compensate the position deviation of the wheels.
2.5.The machine has the warning function of the brokage of sand belt,Effectively get rid of the danger
and waste of the idle running of the robot when the sand belt breaks.
2.6.Offline program software for automatic grinding.
2.7.We have professional programmer for grinding technical,To ensure fully technical support.And help
you resolve the difficulty of grinding/polishing task,Reducing the production time.
2.8.Professional team to design the fixtures and more professional fixtures design can increase the
grinding/polishing effect dramatically.

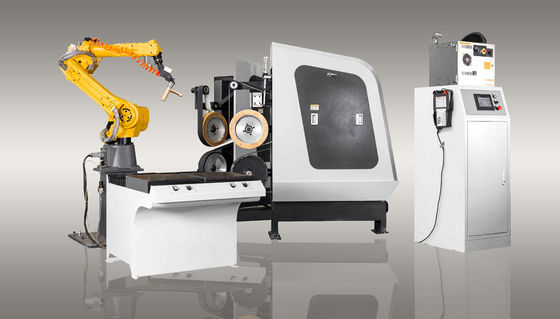

III.STANDARD CONFIGURATION
A.FANUC Intelligent robot(1set)
B.Robot Control Cabinet
C.Electric control System
D.Sand Belt Polishing Mchine (2sets)
E.Double Station Feed Table (1set)
E.Discharge Tray(Two sets for each product,customized according to the sample)
F.Fully enclosed machine conver; Adopting soundproof and fireproof material to eliminate dust
pollution
