| Brand Name: | DZ |
| Model Number: | HZ-360 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Payment Terms: | L/C, T/T, Western Union |
Foundry Automatic Sand Core Shooting Machine Reliable Control For Plumbing Hardware

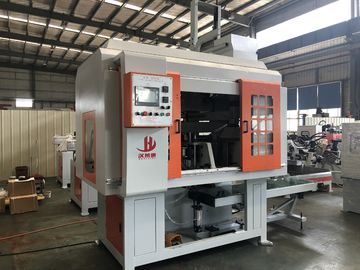

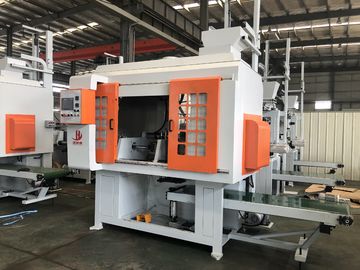

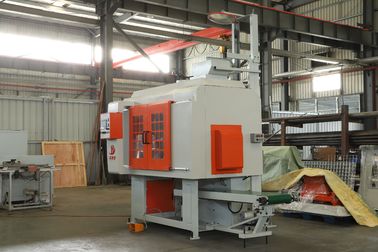

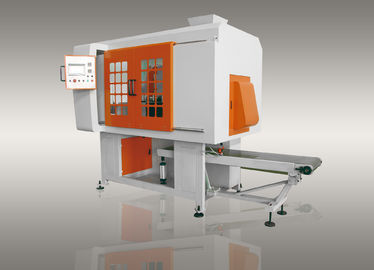

HZ 360-HS core shooting machine is a kind of automatic core shooting machine with the functions of vertical parting, full automatic, down-turning die, conveyor belt to convey sand core and automatic mixed sand lifting. It is suitable for small and medium-sized work pieces in valve, faucet, hardware, hydraulic and pneumatic industries. It also applied to the hot core sand and coated sand of furan resin series hot box sand and urea-formaldehyde resin series. It is especially suitable for copper and aluminum casting industry, which can meet the core-making requirements of the core-shooting process with three-component resin, complex core shape and low structural strength.
|
Technical Parameters |
||
|
Code |
Item |
Specification |
|
1 |
Max. Weight of Sand Core |
8kg |
|
2 |
Max. Size of Core Box ( L x W x H) |
(450*330*220)mm |
|
3 |
Heating Plate ( L x W) |
(400*300)mm |
|
4 |
Heating Power |
9.6kw |
|
5 |
Downward Stroke of Ejection Head |
≤30mm |
|
6 |
Stroke of Mold Opening |
≤300mm |
|
7 |
Max. Stroke of Core Remove |
150mm |
|
8 |
Conveyor ( L x W x H) |
(2200*450*100)mm |
|
9 |
Total Power |
11kw |
|
10 |
Rising Angle of Conveyor |
2°~4° |
|
11 |
Speed of Transportation |
72mm/s |
|
12 |
Machine Size ( L x W x H) |
(3500*1480*3400)mm |
|
13 |
Speed of Lift (Single Time) |
35s |
|
14 |
Weight of Lift ( Single Time) |
5~10kg |
|
15 |
Total Weight |
2000kg |
|
|
