Pneumatic Sand Core Shooter Machine 13.2KW For Brass Faucet

Product Details:
Place of Origin: China
Brand Name: DZ
Certification: CE ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: wooden case packing
Delivery Time: 20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20sets/per month

Detail Information

Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas,Overseas Service Center Available
Certification: ISO,CE Weight: 2000kg
Color: Customized Voltage: 220V / 380V / 415V
Function: Making Sand Core Warranty: 1 Year
Sorting Accuracy: ≥99.99%
High Light:

Brass Faucet Core Shooting Machine

,

13.2KW Pneumatic Sand Core Shooter

,

Brass Faucet Sand Core Shooter

Product Description

Automatic Core Shooters With Automatic Sand Feeder

Feature

1. human-machine interface and imported high quality electronic control and pneumatic components/hydraulic device to ensure accurate and reliable control and easy operation.
2. there are three modes: manual, single action and automatic.
3. the shooting port is 70 degrees to the sand, away from the high temperature area, so that the perforation is easy to clean manually .
4. The machine is equipped with integral moving mechanism of the base, which can make the base move along the X and Y axes, so that the perforation of the opposite mold into the sand hole more convenient and accurate.
5. The movable die is equipped with the core pulling rack to meet the special requirements of the mold.
6. The angle of the quicksand in the sand storage bucket reaches 70 degrees and is equipped with a vibrating motor. It is suitable for the use of collapsible core sand with poor fluidity in the copper casting and aluminum industry.
7. With mold adjustment space, it is convenient to assemble different molds and reduce the requirements for the die size.





# Item Specification
1 Max. Weight of Sand Core  8kg
2 Max. Size of Core Box ( L x W x H)  (450*330*220)mm
3 Heating Plate ( L x W)  (400*300)mm
4 Heating Power 9.6kw
5 Downward Stroke of Ejection Head  ≤30mm
6 Stroke of Mold Opening  ≤300mm
7 Max. Stroke of Core Remove  150mm
8 Conveyor ( L x W x H)  (2200*450*100)mm
9 Total Power  13.2kw
10 Rising Angle of Conveyor  2°~4°
11 Speed of Transportation  72mm/s
12 Machine Size ( L x W x H)  (3500*1480*3400)mm
13 Speed of Lift (Single Time)  35s
14 Weight of Lift ( Single Time)  10kg
15 Total Weight 2000kg
16

Hydraulic pressure

50Kg/cm²

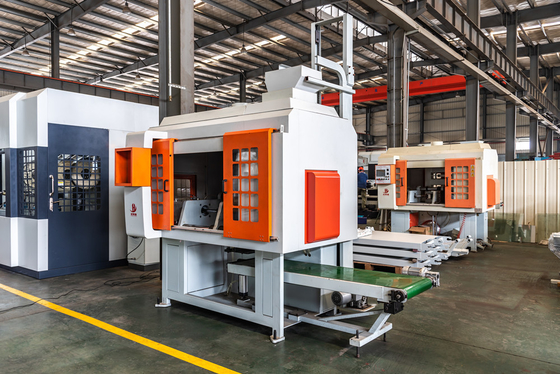

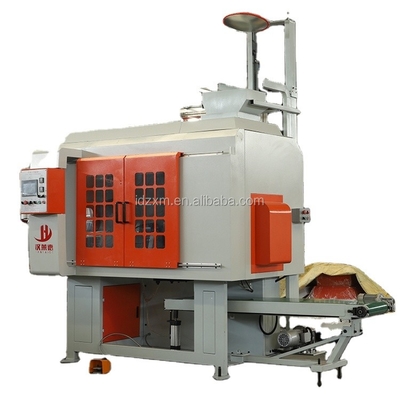

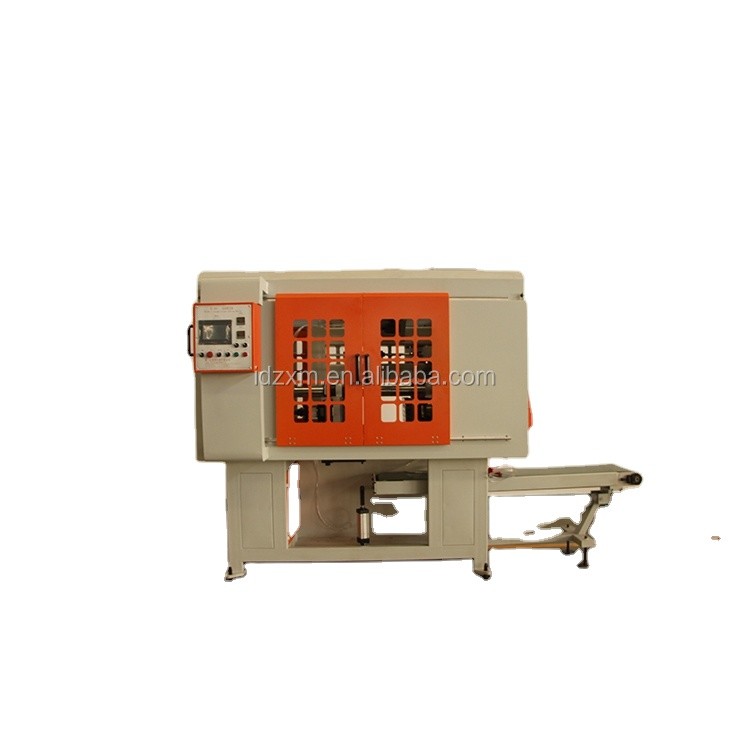

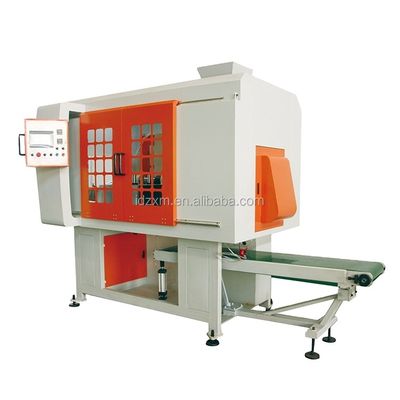

Pneumatic Sand Core Shooter Machine 13.2KW For Brass Faucet 0Pneumatic Sand Core Shooter Machine 13.2KW For Brass Faucet 1Pneumatic Sand Core Shooter Machine 13.2KW For Brass Faucet 2Pneumatic Sand Core Shooter Machine 13.2KW For Brass Faucet 3
