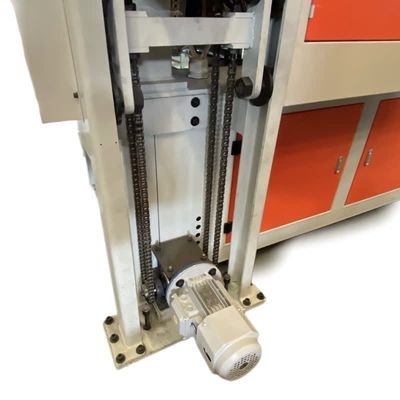

70 Degree Human Machine Interface Sand Core Machine

Product Details:
Place of Origin: China
Brand Name: DZ
Certification: CE ISO
Model Number: HZ-360
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: wood
Delivery Time: 20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30sets/per month

Detail Information

Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas,Overseas Service Center Available
Product Name: Sand Core Shooting Machine Weight: 2000kg
Voltage: 220v/380v/415v Warranty: 1 Year
High Light:

Human Machine Interface Sand Core Machine

,

70 Degree Sand Core Machine

,

70 Degree Shell Core Machine

Product Description

Wholesale Automatic Sand Core Shooting Machine Shell Molding Machine



China Manufacturer Sale High Precision Sand Core Machine

Automatic Sand Core Shooting Machine With Accurate Control And Easy Operation



Feature

  • Human-machine interface and imported high quality electronic control and pneumatic components/hydraulic device to ensure accurate and reliable control and easy operation.
  • There are three modes: manual, single action and automatic.
  • The shooting port is 70 degrees to the sand, away from the high temperature area, so that the perforation is easy to clean manually.
  • The machine is equipped with integral moving mechanism of the base, which can make the base move along the X and Y axes, so that the perforation of the opposite mold into the sand hole more convenient and accurate.
  • The movable die is equipped with the core pulling rack to meet the special requirements of the mold.
  • The angle of the quicksand in the sand storage bucket reaches 70 degrees and is equipped with a vibrating motor. It is suitable for the use of collapsible core sand with poor fluidity in the copper casting and aluminum industry.
  • With mold adjustment space, it is convenient to assemble different molds and reduce the requirements for the die size.





II:Main Technical Specifications
1 BASIC EQUIPMENT Specifications
  Max. Sand Core Weight 9kg
  Max. Cor Box size(L*W*H) (450*330*220)mm
  Heating Plate(L*W) (400*300)mm
  Heating Power 9.6kw
  Clamping stroke of the shooting head ≤30mm
  Die-opening Stroke ≤300mm
  Max.Core Pulling Stroke 150mm
  Conveyor Belt(L*W*H) (2200*450*100)mm
  Machine Power 2°~4°
  Conveyor Speed 72mm/s
  Machine Dimension(L*W*H) (3500*1480*3400)mm
  Lifting Speed(single cycle) 35s
  Lifting Capacity(Single cycle) 5~10kg
  Machine weight 2000kg
