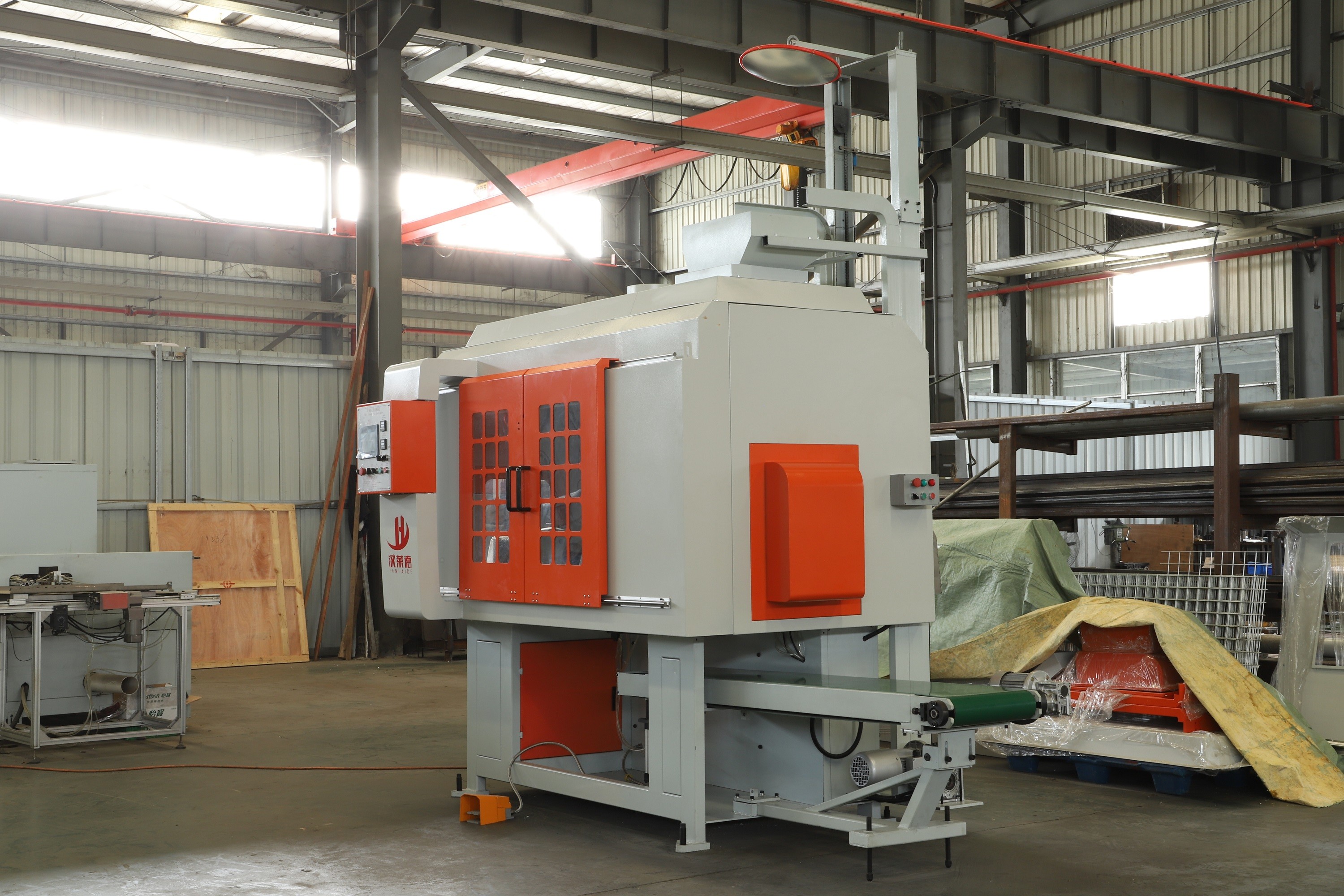

High Precision 72mm/s Sand Core Shooting Machine Electronic Controlled
| Brand Name: | DZ |
| Model Number: | HZ-360 |
| MOQ: | 1set |
| Packaging Details: | wood |
| Payment Terms: | L/C, T/T, Western Union |
Detail Information
Place of Origin:
China
Certification:
CE ISO
Condition:
New
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Overseas Service Center Available
Product Name:
Sand Core Shooting Machine
Weight:
2000kg
Voltage:
220v/380v/415v
Warranty:
1 Year
Delivery Time:
20days
Supply Ability:
30sets/per month
Highlight:
Sand Core Making Machine Electronic Controlled
,72mm/s Sand Core Making Machine
Product Description
China Manufacturer Sale High Precision Sand Core Machine
Automatic Sand Core Shooting Machine With Accurate Control And Easy Operation
Feature
- Human-machine interface and imported high quality electronic control and pneumatic components/hydraulic device to ensure accurate and reliable control and easy operation.
- There are three modes: manual, single action and automatic.
- The shooting port is 70 degrees to the sand, away from the high temperature area, so that the perforation is easy to clean manually.
- The machine is equipped with integral moving mechanism of the base, which can make the base move along the X and Y axes, so that the perforation of the opposite mold into the sand hole more convenient and accurate.
- The movable die is equipped with the core pulling rack to meet the special requirements of the mold.
- The angle of the quicksand in the sand storage bucket reaches 70 degrees and is equipped with a vibrating motor. It is suitable for the use of collapsible core sand with poor fluidity in the copper casting and aluminum industry.
- With mold adjustment space, it is convenient to assemble different molds and reduce the requirements for the die size.
| II:Main Technical Specifications | |||
| 1 | BASIC EQUIPMENT | Specifications | |
| Max. Sand Core Weight | 9kg | ||
| Max. Cor Box size(L*W*H) | (450*330*220)mm | ||
| Heating Plate(L*W) | (400*300)mm | ||
| Heating Power | 9.6kw | ||
| Clamping stroke of the shooting head | ≤30mm | ||
| Die-opening Stroke | ≤300mm | ||
| Max.Core Pulling Stroke | 150mm | ||
| Conveyor Belt(L*W*H) | (2200*450*100)mm | ||
| Machine Power | 2°~4° | ||
| Conveyor Speed | 72mm/s | ||
| Machine Dimension(L*W*H) | (3500*1480*3400)mm | ||
| Lifting Speed(single cycle) | 35s | ||
| Lifting Capacity(Single cycle) | 5~10kg | ||
| Machine weight | 2000kg | ||
