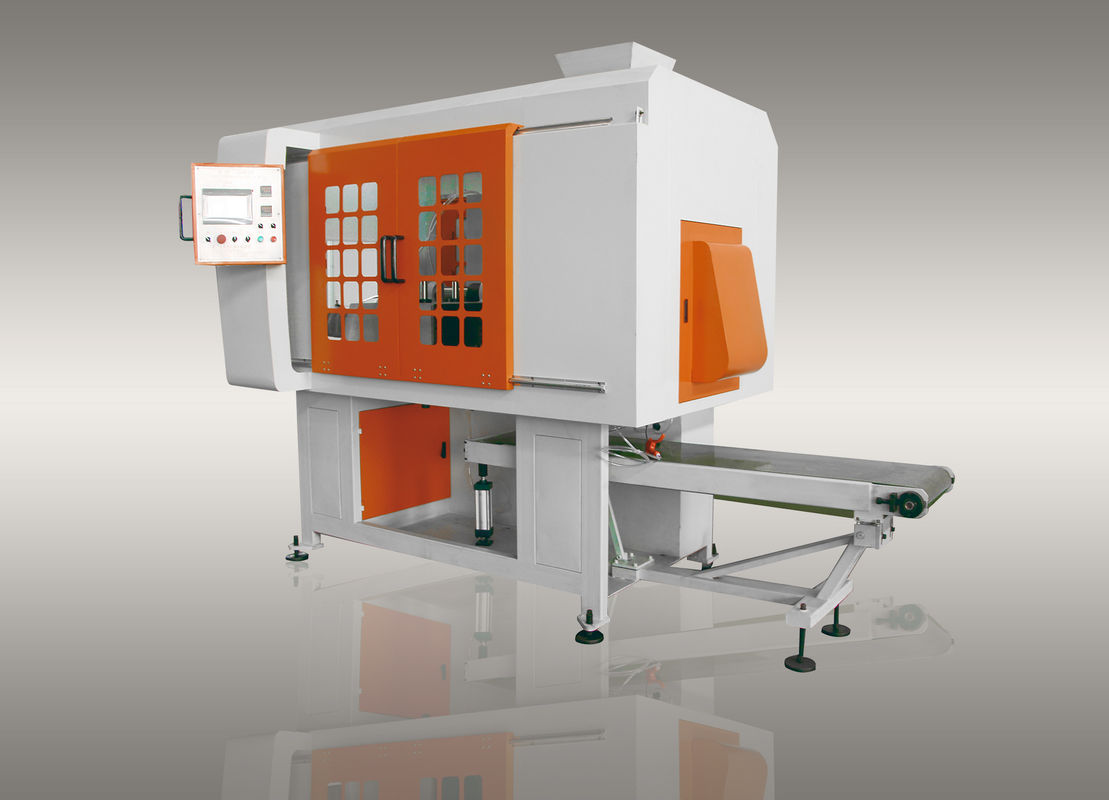

Brass Faucet Water Meter Sand Core Shooting Machine Electronic Control

Product Details:
Place of Origin: China
Brand Name: DZ
Certification: CE ISO
Model Number: HZ-360
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: wood
Delivery Time: 20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30sets/per month

Detail Information

Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas,Overseas Service Center Available
Product Name: Sand Core Shooting Machine Weight: 2000kg
Voltage: 220v/380v/415v Warranty: 1 Year
Highlight:

Faucet Sand Core Shooting Machine

,

72mm/s Sand Core Shooting Machine

,

Electronic Control Sand Core Shooting Machine

Product Description

Sand Casting Brass Faucet Water Meter Casting Sand Core Shooting Machine Core Blower

Automatic Core Shooters With Automatic Sand Feeder



Feature

  • Human-machine interface and imported high quality electronic control and pneumatic components/hydraulic device to ensure accurate and reliable control and easy operation.
  • There are three modes: manual, single action and automatic.
  • The shooting port is 70 degrees to the sand, away from the high temperature area, so that the perforation is easy to clean manually.
  • The machine is equipped with integral moving mechanism of the base, which can make the base move along the X and Y axes, so that the perforation of the opposite mold into the sand hole more convenient and accurate.
  • The movable die is equipped with the core pulling rack to meet the special requirements of the mold.
  • The angle of the quicksand in the sand storage bucket reaches 70 degrees and is equipped with a vibrating motor. It is suitable for the use of collapsible core sand with poor fluidity in the copper casting and aluminum industry.
  • With mold adjustment space, it is convenient to assemble different molds and reduce the requirements for the die size.




II:Main Technical Specifications
1BASIC EQUIPMENTSpecifications
 Max. Sand Core Weight9kg
 Max. Cor Box size(L*W*H)(450*330*220)mm
 Heating Plate(L*W)(400*300)mm
 Heating Power9.6kw
 Clamping stroke of the shooting head≤30mm
 Die-opening Stroke≤300mm
 Max.Core Pulling Stroke150mm
 Conveyor Belt(L*W*H)(2200*450*100)mm
 Machine Power2°~4°
 Conveyor Speed72mm/s
 Machine Dimension(L*W*H)(3500*1480*3400)mm
 Lifting Speed(single cycle)35s
 Lifting Capacity(Single cycle)5~10kg
 Machine weight2000kg


Brass Faucet Water Meter Sand Core Shooting Machine Electronic Control 0Brass Faucet Water Meter Sand Core Shooting Machine Electronic Control 1Brass Faucet Water Meter Sand Core Shooting Machine Electronic Control 2Brass Faucet Water Meter Sand Core Shooting Machine Electronic Control 3Brass Faucet Water Meter Sand Core Shooting Machine Electronic Control 4
