Automatic Cycle Sand Core Shooting Machine Electronic PLC Control

Product Details:
Place of Origin: China
Brand Name: DZ
Certification: CE ISO
Model Number: HZ-360
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: wood
Delivery Time: 20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30sets/per month

Detail Information

Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas,Overseas Service Center Available
Product Name: Sand Core Shooting Machine Weight: 2000kg
Voltage: 220v/380v/415v Warranty: 1 Year
High Light:

PLC Control Sand Core Shooting Machine


Sand Core Shooting Machine Electronic Control


Automatic Cycle Sand Core Shooting Machine

Product Description

Automatic Sand Core Shooting Machine With Accurate Control And Easy Operation

Automatic Core Shooters With Automatic Sand Feeder

This machine is used for the production of small/medium size cores with the hot box system. The machine has been studied and built for a blowing capacity of 2.5 litres.
The machine is supplied with accident-prevention doors with safety switchesand is equipped with an overhead fume-suction hood. The various production cycle phases (automatic or manual cycle) may be set by the operator by using the timer or mechanical adjustment.The machine process is controlled by a PLC control unit.
The core boxes are heated by electric elements, the temperature is controlled by two independent thermocouples with their relative regulator.
The machine furthermore may be supplied with an automatic sand feeding system.



  • Human-machine interface and imported high quality electronic control and pneumatic components/hydraulic device to ensure accurate and reliable control and easy operation.
  • There are three modes: manual, single action and automatic.
  • The shooting port is 70 degrees to the sand, away from the high temperature area, so that the perforation is easy to clean manually.
  • The machine is equipped with integral moving mechanism of the base, which can make the base move along the X and Y axes, so that the perforation of the opposite mold into the sand hole more convenient and accurate.
  • The movable die is equipped with the core pulling rack to meet the special requirements of the mold.
  • The angle of the quicksand in the sand storage bucket reaches 70 degrees and is equipped with a vibrating motor. It is suitable for the use of collapsible core sand with poor fluidity in the copper casting and aluminum industry.
  • With mold adjustment space, it is convenient to assemble different molds and reduce the requirements for the die size.



II:Main Technical Specifications
1 BASIC EQUIPMENT Specifications
  Max. Sand Core Weight 9kg
  Max. Cor Box size(L*W*H) (450*330*220)mm
  Heating Plate(L*W) (400*300)mm
  Heating Power 9.6kw
  Clamping stroke of the shooting head ≤30mm
  Die-opening Stroke ≤300mm
  Max.Core Pulling Stroke 150mm
  Conveyor Belt(L*W*H) (2200*450*100)mm
  Machine Power 2°~4°
  Conveyor Speed 72mm/s
  Machine Dimension(L*W*H) (3500*1480*3400)mm
  Lifting Speed(single cycle) 35s
  Lifting Capacity(Single cycle) 5~10kg
  Machine weight 2000kg

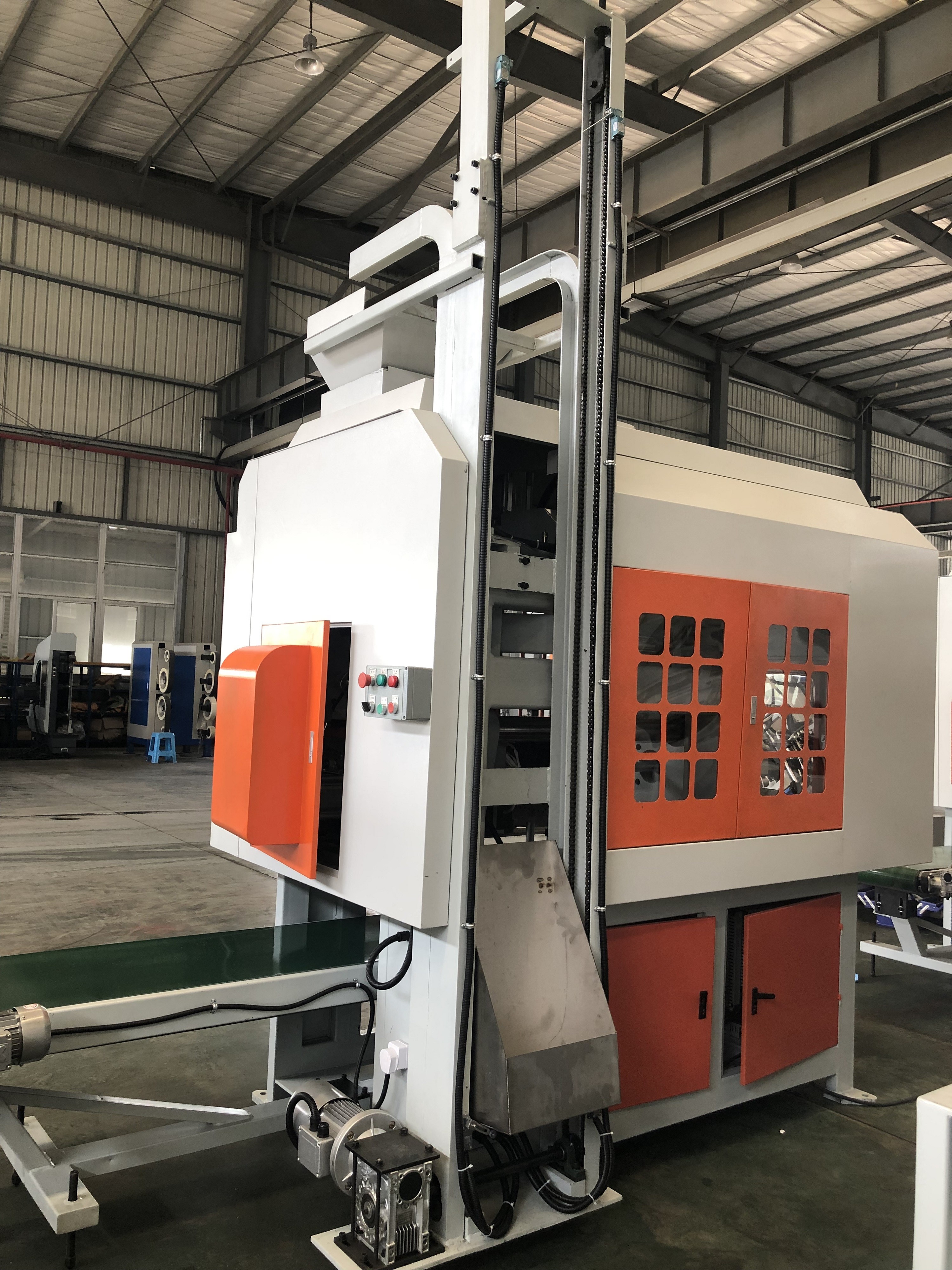

Automatic Cycle Sand Core Shooting Machine Electronic PLC Control 0Automatic Cycle Sand Core Shooting Machine Electronic PLC Control 1

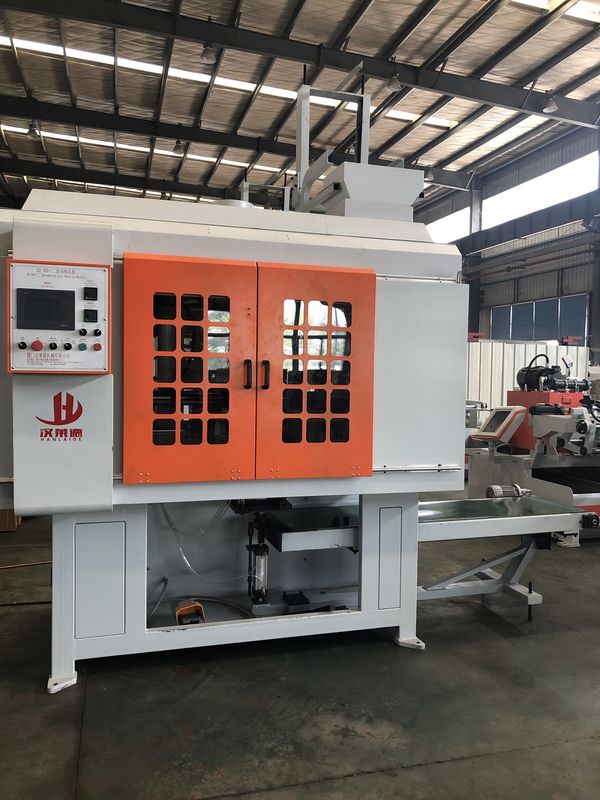

Automatic Cycle Sand Core Shooting Machine Electronic PLC Control 2
