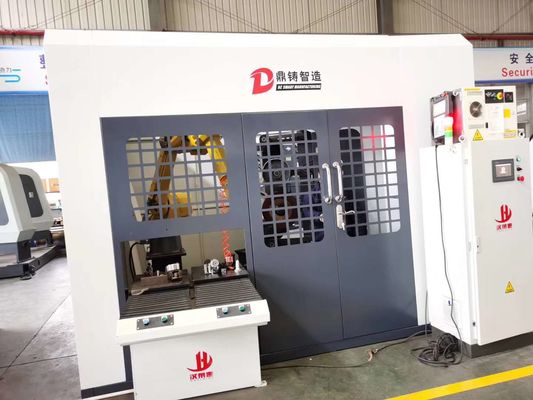

380V Brass Casting Workpiece Robot Grinding Machine
380V Brass Casting Workpiece Robot Grinding Machine 380V Brass Casting Workpiece Robot Grinding Machine

380V Brass Casting Workpiece Robot Grinding Machine

Product Details:
Place of Origin: China
Brand Name: DZ
Certification: CE ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: wooden case packing
Delivery Time: 20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20sets/per month
Contact Now

Detail Information
Voltage: 380V/50Hz Condition: 100%New
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Maintenance And Repair Service,Field Installation Use: Grinding And Polishing
Type: Metal Polishing Machine,Angle Polisher Application: Brass,Steel, Stainless Steel,Aluminum Parts
Warranty: 1 Year Name: Fully Automatic Metal Polishing Machine
High Light:

Brass Casting Workpiece Robot Grinding Machine

,

380V Robot Grinding Machine

,

10.5kw robotic buffing machine

Product Description

Brass Casting Workpiece Peeling Grinding Machine Such As Faucet Sanitary Fittings

  1. The grinding robot machine is automatically controlled by a industrial robot,can be reporgrammed,and to achieving various kinds of grinding jobs in 3D space;
  2. FUNAC robotic arm
  3. The grinding machine has several grinding touch wheels,and in the process of grinding,the robot can control the rotating speed of the grinding machine,automatically adjust the tension of the sand belt,and choose the current available touch wheels.
  4. The machine has function of automatic position compensation.In the process of grinding,the machine detect the position of the wheels and automatically adjust the position of the wheels to compensate the position deviation of the wheels.
  5. The machine has the warning function of the brokage of sand belt,Effectively get rid of the danger and waste of the idle running of the robot when the sand belt breaks.
  6. Offline program software for automatic grinding.
  7. We have professional programmer for grinding technical,To ensure fully technical support.And help you resolve the difficulty of grinding/polishing task,Reducing the production time.
  8. Professional team to design the fixtures and more professional fixtures design can increase the grinding/polishing effect dramatically.

Code Item 20GA 20GB-II 20GB-III 35G-II 35G-III 50G-II 50G-III 　
1 Robot Cell FUNAC FUNAC FUNAC FUNAC FUNAC FUNAC FUNAC 　
2 Model 20iA/20 20iA/20 20iA/20 20iA/35 20iA/35 70iA/50 70iA/50 　
3 Voltage 380V 380V 380V 380V 380V 380V 380V 　
4 Power 10.5KW 10.5KW 15KW 10.5KW 15KW 1６KW 20.5KW 　
5 Sand Belt Machine Qty. 1 2 3 2 3 2 3 　
6 Sand Belt Qty. 4 4 6 4 6 4 6 　
7 Sand belt Dimensions 3000mm 3000mm 3000mm 4000mm 4000mm 4000mm 4000mm 　
8 Feed Table 1 1 1 1 1 1 1

　



380V Brass Casting Workpiece Robot Grinding Machine 0

380V Brass Casting Workpiece Robot Grinding Machine 1
