Faucets Industrial Full Automatic Robot Grinding Machine With 2 Robot Cell

Good quality Automatic Polishing Machine for sales
Good quality Automatic Polishing Machine for sales
I'm Online Chat Now

Faucets Industrial Full Automatic Robot Grinding Machine With 2 Robot Cell

China Faucets Industrial Full Automatic Robot Grinding Machine With 2 Robot Cell supplier
Faucets Industrial Full Automatic Robot Grinding Machine With 2 Robot Cell supplier Faucets Industrial Full Automatic Robot Grinding Machine With 2 Robot Cell supplier

Large Image :  Faucets Industrial Full Automatic Robot Grinding Machine With 2 Robot Cell

Product Details:

Place of Origin: CHINA
Brand Name: DZ
Certification: CE
Model Number: HGM-A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation
Delivery Time: 20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30sets/per momth
Contact Now
Detailed Product Description
Voltage: 380V/50HZ Automatic Grade: Automatic
Condition: New Weight: 6000kg
Dimensions(l*w*h): 4000x4 After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Maintenance And Repair Service,Field Installation
Warranty: 1 Year

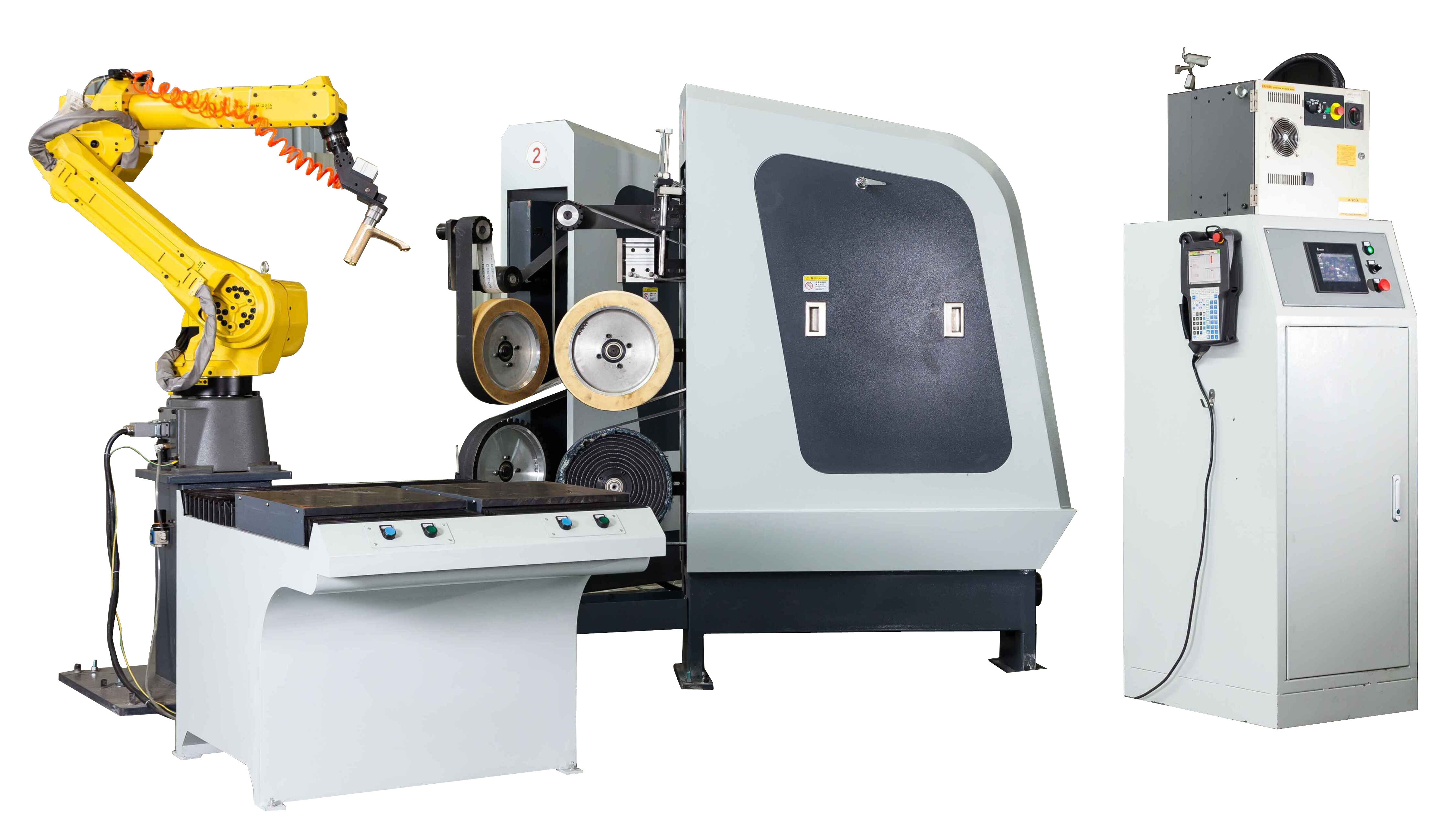

Faucets Industrial Full Automatic Robot Grinding Machine With 2 Robot CellEquipment Introduction



1. The grinding system contains: 2 industrial robot cells; 4 grinding units; 2 loading stations and Control system.
2. The robot is FANUC, M-20iA model with grinding moduel program system.
3. Teach device pogramming system, with manually model to simulate the workmanship polishing and record the track; automatically operating model is available with pre-settled parameters program
4. Full digital control, polishing program parameters can be saved and adjusted at any time.
5. CN/EN language display on Touch Panel. to set all parameters for an easy operation;fault codes display and alarm pages for quick troubles shooting and repair.




Technical Parameters:



NO. DESCRIPTION HGM-A HGM-B
1 Robotic Cell FANUC- M-20iA FANUC-M-20iA
2 Power(KW) 10.5 10.5
3 Voltage (V) 380 380
4 Grinding Belt Motor (KW) 2*3.75KW 2*3.75KW
5 Grinding Belt Size (MM) 3000 3000
6 Grinding Belt Qty. ( pieces) 4 4
7 Loading Station 2 2
8 Footprint (MM) 3400*2900 3800*2700

Industrial Robotic Cell Auto-Grinding Machine, 2-stations Automatic Robot Grinding System, Faucets Grinding Plant


Applications:

The automatic polishing machines are born to replace the heavy-labor workmanship and improve quality stability, reduce production cost and for high yield benefits. Our machines have been offered to worldwidely in various industries:
1. faucets and sanitary fittings,

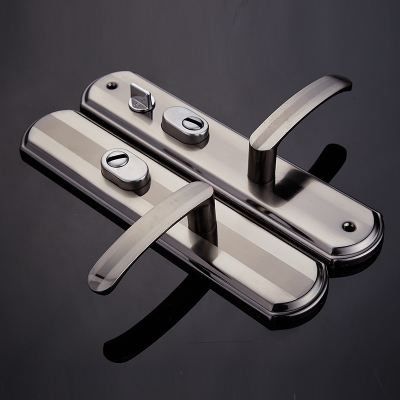

2. Locks and door knobs, plates and door handles,
3.kitchen ware and flatware, table ware, stainless steel sinks, dishes, Knives and cutlery,
4. stainless steel round tubes , squre bars, rectangular tube etc;
5. aluminum profiles;
6. automotive industry for wheels,
7. metal furniture parts;
8. valves and tools;
9. watch and jewelry;
10. medical implants;
11. musical instruments... more applicaitons availability are welcomed to consult us.

Faucets Industrial Full Automatic Robot Grinding Machine With 2 Robot Cell
