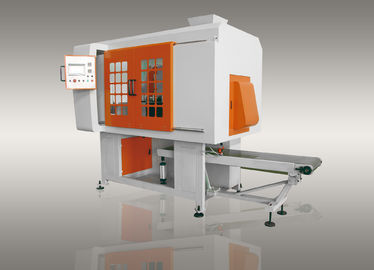

Foundry Automatic Sand Core Shooting Machine Reliable Control For Plumbing Hardware

China Foundry Automatic Sand Core Shooting Machine Reliable Control For Plumbing Hardware supplier

Large Image :  Foundry Automatic Sand Core Shooting Machine Reliable Control For Plumbing Hardware

Product Details:

Place of Origin: China(Mainland)
Brand Name: DZ
Certification: CE ISO
Model Number: HZ-360

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wood
Delivery Time: 2 weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets/per month
Contact Now
Detailed Product Description
Condition: New Name: Sand Core Making Machine
Conveyor: 2200*400*100MM After-sales Service Provided: Overseas Third-party Support Available
Feature: Sand Core Shooting Making Machine Technology: Resin Sand Technology

Foundry Automatic Sand Core Shooting Machine Reliable Control For Plumbing Hardware





HZ 360-HS core shooting machine is a kind of automatic core shooting machine with the functions of vertical parting, full automatic, down-turning die, conveyor belt to convey sand core and automatic mixed sand lifting. It is suitable for small and medium-sized work pieces in valve, faucet, hardware, hydraulic and pneumatic industries. It also applied to the hot core sand and coated sand of furan resin series hot box sand and urea-formaldehyde resin series. It is especially suitable for copper and aluminum casting industry, which can meet the core-making requirements of the core-shooting process with three-component resin, complex core shape and low structural strength.



Technical Parameters

Code

Item

Specification

1

Max. Weight of Sand Core

8kg

2

Max. Size of Core Box ( L x W x H)

(450*330*220)mm

3

Heating Plate ( L x W)

(400*300)mm

4

Heating Power

9.6kw

5

Downward Stroke of Ejection Head

≤30mm

6

Stroke of Mold Opening

≤300mm

7

Max. Stroke of Core Remove

150mm

8

Conveyor ( L x W x H)

(2200*450*100)mm

9

Total Power

11kw

10

Rising Angle of Conveyor

2°~4°

11

Speed of Transportation

72mm/s

12

Machine Size ( L x W x H)

(3500*1480*3400)mm

13

Speed of Lift (Single Time)

35s

14

Weight of Lift ( Single Time)

5~10kg

15

Total Weight

2000kg

Foundry Automatic Sand Core Shooting Machine Reliable Control For Plumbing Hardware
