| Brand Name: | DZ |
| Model Number: | LPDC |
| MOQ: | 1 set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Payment Terms: | L/C, T/T, Western Union |

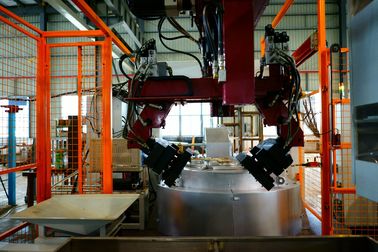

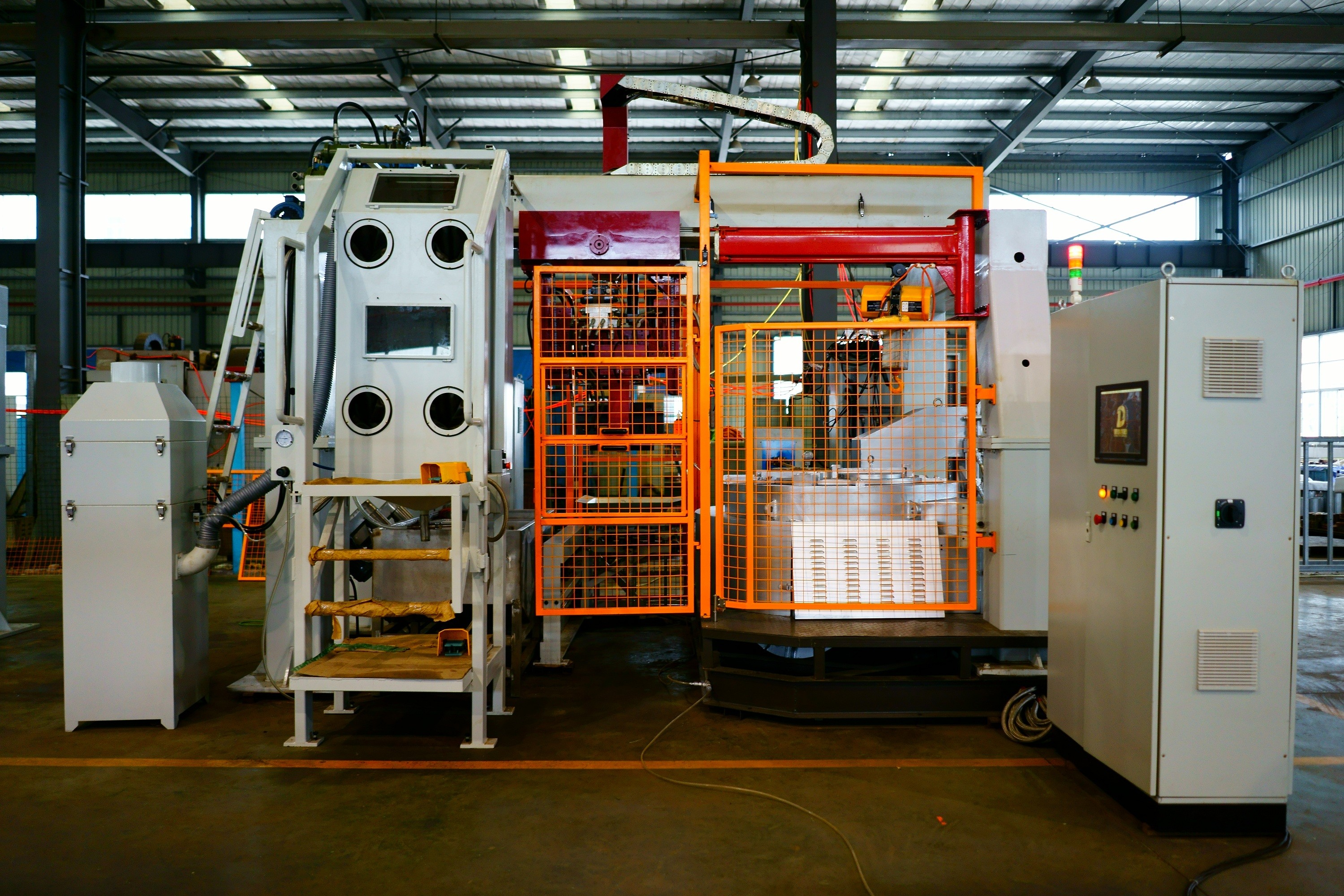

Full Automatic Low Pressure Die Casting Machine 500 Ton For Zinc Alloy
Technical Parameters
|
1-Manipulator Low Pressure Die Casting Machine Technical Parameters |
||
|
Code |
Item |
Specifications |
|
1 |
Dimensions ( L*W*H) |
5000*4600* 3400 |
|
2 |
Machine Power |
125KW |
|
3 |
Rated Voltage |
380V |
|
4 |
Manipulator Quantity |
1 |
|
5 |
Maximum Weight of Die |
180KG |
|
6 |
Maximum Dimension of Die |
500*400*250 |
|
7 |
Furnace Power |
3*35KW |
|
8 |
Furnace Melting Capacity |
350Kg |
|
9 |
Furnace Quantity |
1 |
|
10 |
Die Cleaning Box Quantity |
1 |
|
11 |
Feeder Quantity |
1 |
|
12 |
Blackwash Tank Quantity |
1 |
|
13 |
Hoist Quantity |
1 |
|
14 |
Lift Tube Quantity |
3 |
|
15 |
Pneumatic Pressure |
6KG |
|
16 |
Water Pressure |
3KG |
|
17 |
Maximum Furnace Temperature |
1250℃ |
|
18 |
Cooling Water Temperature |
20±2℃ |
|
19 |
Maximum Speed of Manipulator |
20m/ Min. |
|
20 |
Maximum Die Clamping Stroke |
370mm |
|
21 |
Die Bath Angle |
0-90º |
|
22 |
Ejector Pin Pressure |
540KG |
|
23 |
Ejector Pin Stroke |
40mm |
|
24 |
Pouring Pressure |
50-1200bar |
|
25 |
Maximum Lift Weight of Hoist |
500kg |
|
|
||
|
|
|
|
|
1 |
Dimension ( L*W*H) |
7000*7000*3680 |
|
2 |
Machine Power |
180KW |
|
3 |
Rated Voltage |
380V |
|
4 |
Manipulator Quantity |
2 |
|
5 |
Maximum Weight of Die |
180KG |
|
6 |
Maximum Dimension of Die |
500*400*250 |
|
7 |
Furnace Power |
2*80KW |
|
8 |
Furnace Melting Capacity |
520Kg |
|
9 |
Furnace Quantity |
1 |
|
10 |
Die Cleaning Box Quantity |
1 |
|
11 |
Feeder Quantity |
1 |
|
12 |
Blackwash Tank Quantity |
1 |
|
13 |
Hoist Quantity |
1 |
|
14 |
Lift Tube Quantity |
2 |
|
15 |
Pneumatic Pressure |
6KG |
|
16 |
Water Pressure |
3KG |
|
17 |
Maximum Furnace Temperature |
1250℃ |
|
18 |
Cooling Water Temperature |
20±2℃ |
|
19 |
Maximum Speed of Manipulator |
9R/Min. |
|
20 |
Maximum Die Clamping Stroke |
370mm |
|
21 |
Die Bath Angle |
0-90º |
|
22 |
Ejector Pin Pressure |
540KG |
|
23 |
Ejector Pin Stroke |
40mm |
|
24 |
Pouring Pressure |
50-1200bar |
|
25 |
Maximum Lift Weight of Hoist |
500kg |
Click the link to view video:
|
|
