CNC system automatic robot grinding polishing machine for faucet

Product Description

Quick Details

Condition: New                                                        Vertical Travel(mm): 90mm

Horizonal Travel(mm): 2500mm                              Place of Origin: Fujian, China (Mainland)

Brand Name: Changjiang                                        Weight: 130kg

Dimension(L*W*H): 1900*700*1800mm                  Power(W): AC220V 10V50/60HZ

Certification: CE ISO                                                Warranty: 1 Year

After-sales Service Provided: Field installation, commissioning and training, Engineers available to service machinery overseas

Usage: Processing sanitary ware                            load ability: 12kg

Max loading: 80Kgs                                                 Accuracy: ±0.08mm

Type: robot manipulator                                          Quick Details

Horizonal Travel(mm):2500mm                               Place of Origin: Fujian, China (Mainland)

Weight: 130kg                                                         Dimension(L*W*H): 1900*700*1800mm

Power(W): AC220V 10V50/60HZ

Usage: Processing sanitary ware                           load ability: 12kg

Max loading: 80Kgs                                                Accuracy: ±0.08mm

Type: robot manipulator

Product Application

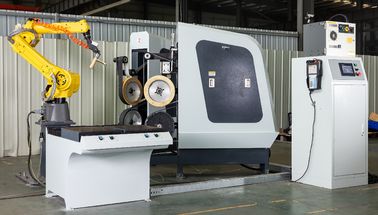

Automatic grinding and polishing for metal parts by robot system, efficient and flexiable.

Main Features

1). Robot body: fully-automatic control, repeatable edition, able to complete all kinds of polishing in three-dimensional space, and brands are optional.

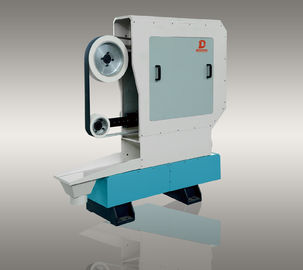

2). Abrasive band grinding machine: equipped with multiple usable grinding contact wheels. When grinding, the robot can control rotating speed and automatically adjust tension of abrasive band, and automatically choose currently available contact wheel.( Users can decide quantity of abrasive band grinding machine, according to their own needs.)

3). Double-station automatic feeding table: double-station elements arrangement, alternate operation, the two stations can set same or different products at the same time, the robot can recognize different programs and operate accordingly.

4). Positioner: adopt pneumatic drive, posses functions of air pressure, cable rotation, and also the pioneering displacement detection, which can avoid the positioner from working when the placement is incorrect. Or the machine or PU wheel might get damaged.

5). Whole machine control system: automatic linear speed compensation, abrasive band rectification, grinding pressure compensation, remote fault diagnosis and repair.

Click the link to view video:

https://www.youtube.com/watch?v=kv3QiZceUxI&list=UUMEJdKjNOuRhrF8Kyh8fX_A&index=7
