Carbon Steel Material Sand Core Making Machine With Horizontal Parted Type

Product Details:
Place of Origin: China(Mainland)
Brand Name: DZ
Certification: CE ISO
Model Number: HZ-360
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: wood
Delivery Time: 2weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets/per month

Detail Information

Usage: Metal Material Shooting CNC Machining Or Not: CNC
Condition: New Warranty: 1 Year
Technology: Resin Sand Technology Material: Carbon Steel
Highlight:

sand core making machine

,

cold box core shooter machine

Product Description

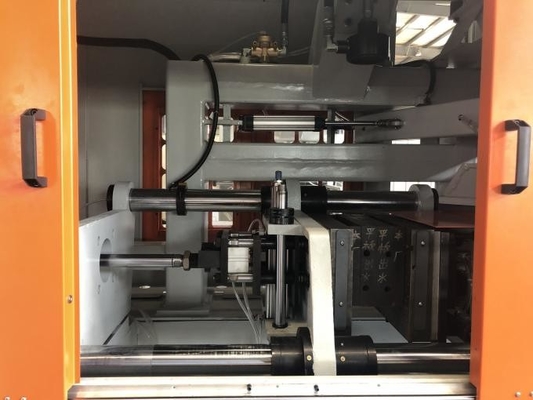

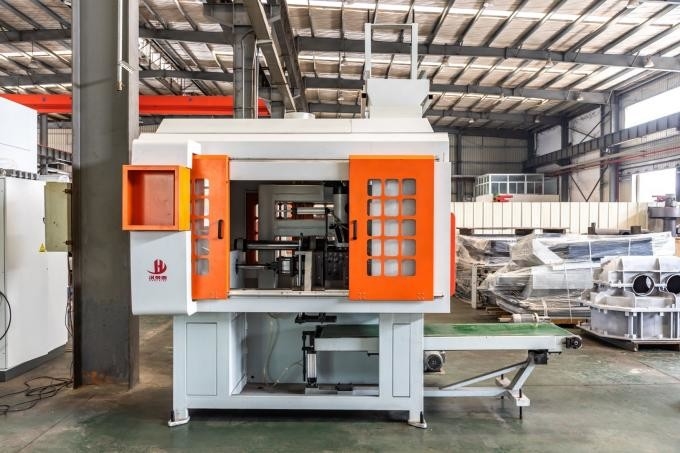

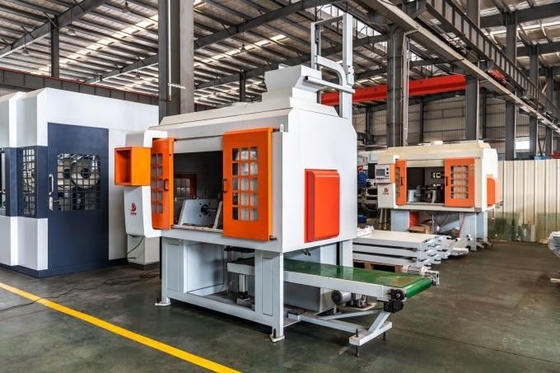

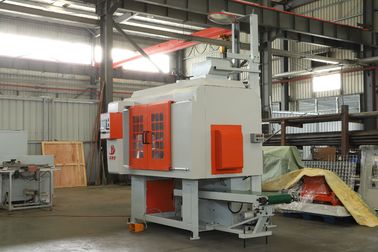

Carbon Steel Material Sand Core Making Machine With Horizontal Parted Type

Sand Core Shooting Machines Main Features

1. Horizontal parted type,fetching core manually.

2. Three kinds of function manual,single-circle automatic, automatic circulation.

3. It can shooting sand simultaneously in two sides, big moulding board, electric heating, high efficiency.

4. Die adjustment margin is set to make it easy to use different dies and lower the requirements of die exterior physical dimension.

5. The shooting head rotates for 50° to receive sand, it is easy to clean the shooting hole manually.

6. The sand core shooting machine can be plainly moved as a whole



Technical Parameters



1. Max. Weight of Sand Core:8KG

2. Max. Size of Core Box ( L x W x H):(450*330*220)mm

3. Heating Plate ( L x W):(400*300)mm

4. Heating Power :9.6kw

5. Downward Stroke of Ejection Head:≤30mm

6. Stroke of Mold Opening:≤300mm

7. Max. Stroke of Core Remove:150mm

8. Conveyor ( L x W x H):(2200*450*100)mm

9. Total Power :11kw

10. Rising Angle of Conveyor :2°~4°

11. Speed of Transportation :72mm/s

12. Machine Size ( L x W x H):(3500*1480*3400)mm

13. Speed of Lift (Single Time):35s

14. Weight of Lift ( Single Time):5~10kg

15. Total Weight :2000kg

Carbon Steel Material Sand Core Making Machine With Horizontal Parted Type 0
