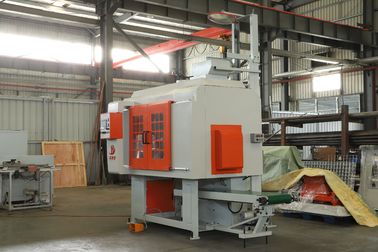

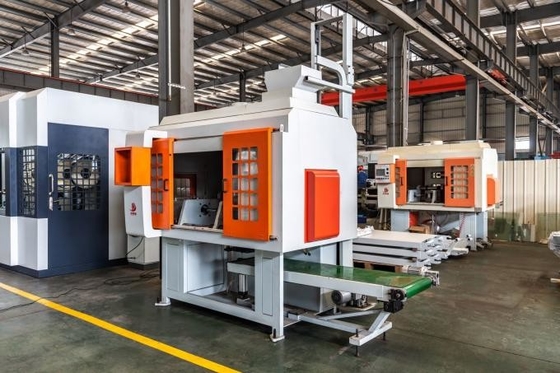

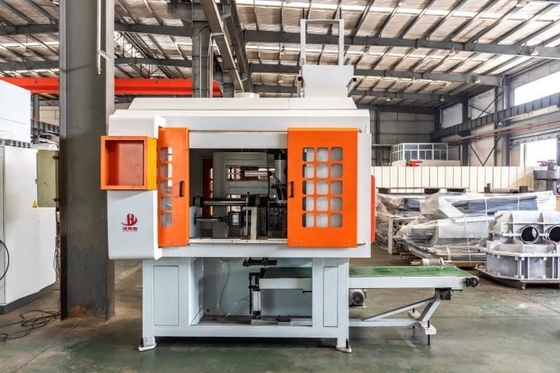

Automatic Sand Core Shooting Machine , Shell Molding Machine

China Automatic Sand Core Shooting Machine , Shell Molding Machine supplier
Automatic Sand Core Shooting Machine , Shell Molding Machine supplier Automatic Sand Core Shooting Machine , Shell Molding Machine supplier

Large Image :  Automatic Sand Core Shooting Machine , Shell Molding Machine

Product Details:

Place of Origin: China(Mainland)
Brand Name: DZ
Certification: CE ISO
Model Number: HZ-360

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: wood
Delivery Time: 2weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets/per month
Contact Now
Detailed Product Description
Condition: New After-sales Service: Overseas Third-party Support Available
Feature: Precision Casting Heating Power: 9.6kw
Usage: Metal Material Shooting Type: Automatic Sand Core Shooting Machine

The main characteristics of core perforating machine
1. Horizontal parting and manual coring.
2. Three functions: manual, single circle automatic and automatic circulation.
3. Double-sided simultaneous sanding, large molding plate, electric heating, high efficiency.
4. Adjust the allowance of molds to facilitate the use of different molds and reduce the requirements of physical size of the mold appearance.
5. Shot in the head rotation 50 ° receive sand, it is easy to clean shot hole manually.
6. The core perforator can be simply moved as a whole.

Machine Parameters

Greatest Weight of sand cores

6kg

the biggest size of core boxes

400*280*200mm

itinerary of plunger under pressure

≤30mm

the longest itinerary of core-pull guide bar

150mm

net weight of the whole machine

1543kg

heating power

9.6kw

size of appearance of machine

3500*1480*2350mm

transmission speed

72mm/s

increased angle of nylon conveying band

2° - 4°

size of heating plate ( L x W )

350 * 200 mm

nylon conveying band ( L x W x H )

2200 * 400 * 100 mm

Automatic Sand Core Shooting Machine , Shell Molding Machine
