| Brand Name: | DZ |
| Model Number: | Robot |
| MOQ: | 1 set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Payment Terms: | L/C, T/T, Western Union |

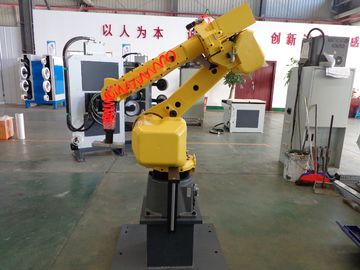

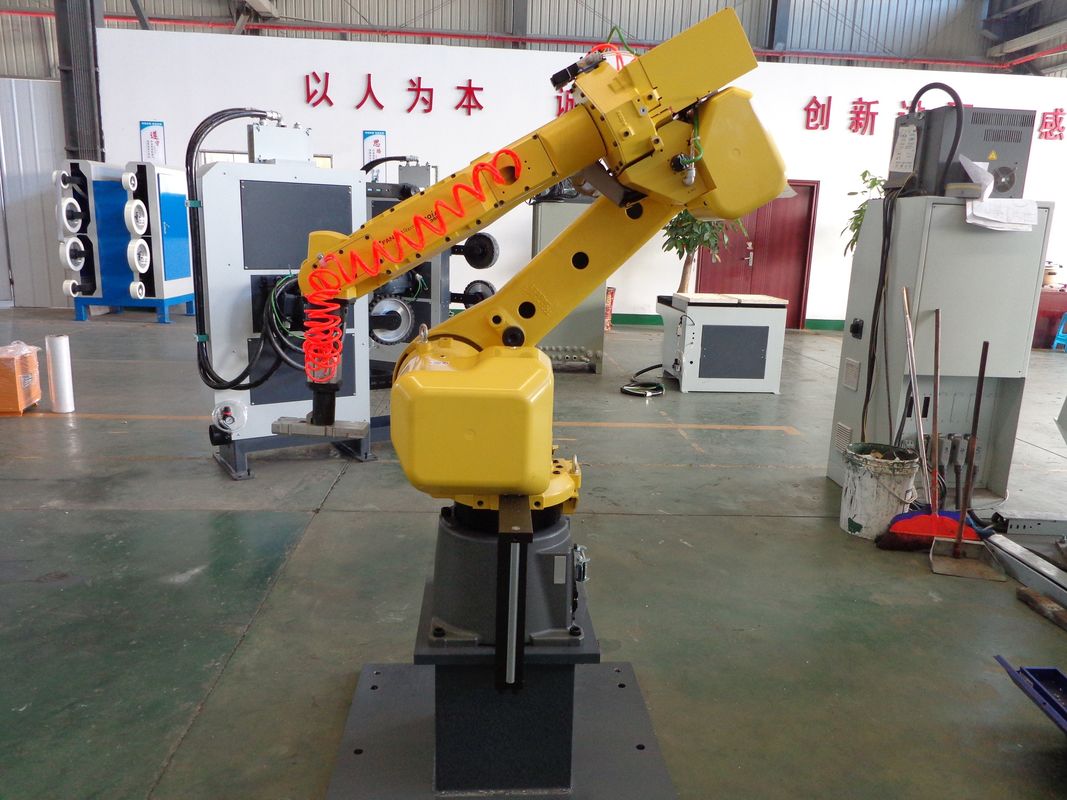

Carbon Steel Automatic Grinding Machine , Robot Operation CNC Buffing Machine
Robot operation faucet sanitary ware ,auto parts metal ,lockset and doorknob,thread processing grinding and polishing machine.
1.1 Built-in professional polishing program module 1.2 Programming mode: the program of the demonstrator is programmed. Manual mode is adopted to simulate manual polishing and record track, which can be automatically run according to this path. 1.3 Full digital control, the program can be saved and invoked at any time.
1.4 The functions and parameters are set by the Chinese display touch control panel, which is easy to operate and has the function of fault code display for troubleshooting and maintenance.

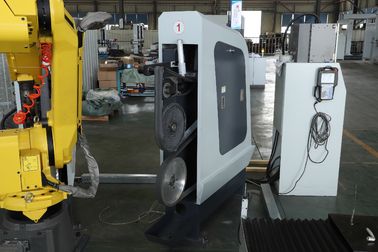

I.vSand belt machine
1.vVariety of sand belt hanging method to meet the requirements of different products grinding process;
2.vThe function of middle plane grinding ensures the primary grinding of plane products;
3.vSand belt with function to reduce the difficulty of programming;
4v.Sand belt anti-stick sand function to ensure the life of the sand belt;
5.vWith sand belt wear compensation function
II. Two station automatic feeding table
High precision positioning, the panel has flexible floating function.10 to 20 pieces of products can be placed in each station. After processing, it will exit automatically and prompt the operator to replace the products.
III: TECHNICAL PARAMETERS
| 20GA Specifications | 20GBSpecifications | 35GSpecifications | 50GSpecifications | |
| Robot Cell | FUNAC | FUNAC | FUNAC | FUNAC |
| Robot Model | 20iA/20 | 20iA/20 | 20iA/35 | 20iA/50 |
| Rated Voltage | 380V | 380V | 380V | 380V |
| Machine Power | 7.6KW | 10.5KW | 11KW | 16KW |
| Sand Belt Machine Quantity | 1 | 2 | 2 | 2 |
| Sand Belt Quantity | 4 | 4 | 4 | 4 |
| Sand Belt Dimensions | 3000mm×4 | 3000mm×4 | 4000mm×4 | 4000mm×4 |
| Feed Table | 1 | 1 | 1 | 1 |
Click the link to view video:
https://www.youtube.com/watch?v=kv3QiZceUxI&list=UUMEJdKjNOuRhrF8Kyh8fX_A&index=7
|
|
