| Brand Name: | DZ |
| Model Number: | NC-64 |
| MOQ: | 1Unit |
| Price: | Negotiable |
| Packaging Details: | wood |
| Payment Terms: | L/C, T/T, Western Union |

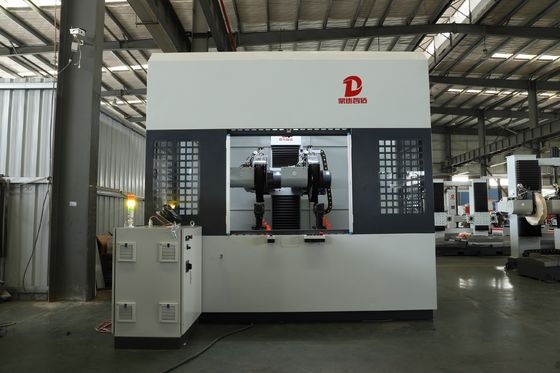

1. The main electrical control system adopts 6-axes DZ servo CNC system control (main control screen capture positioning, coordinate digital setting, speed digital setting, software over travel protection, program function modularization, simple idiot style programming, etc.)
In mechanical structure, servo motor is used to drive the worm reducer gear to control the motion of the polishing unit head and workpiece (U, V, W axial direction) and the servo motor drives the slide table (X, Y, Z axial).

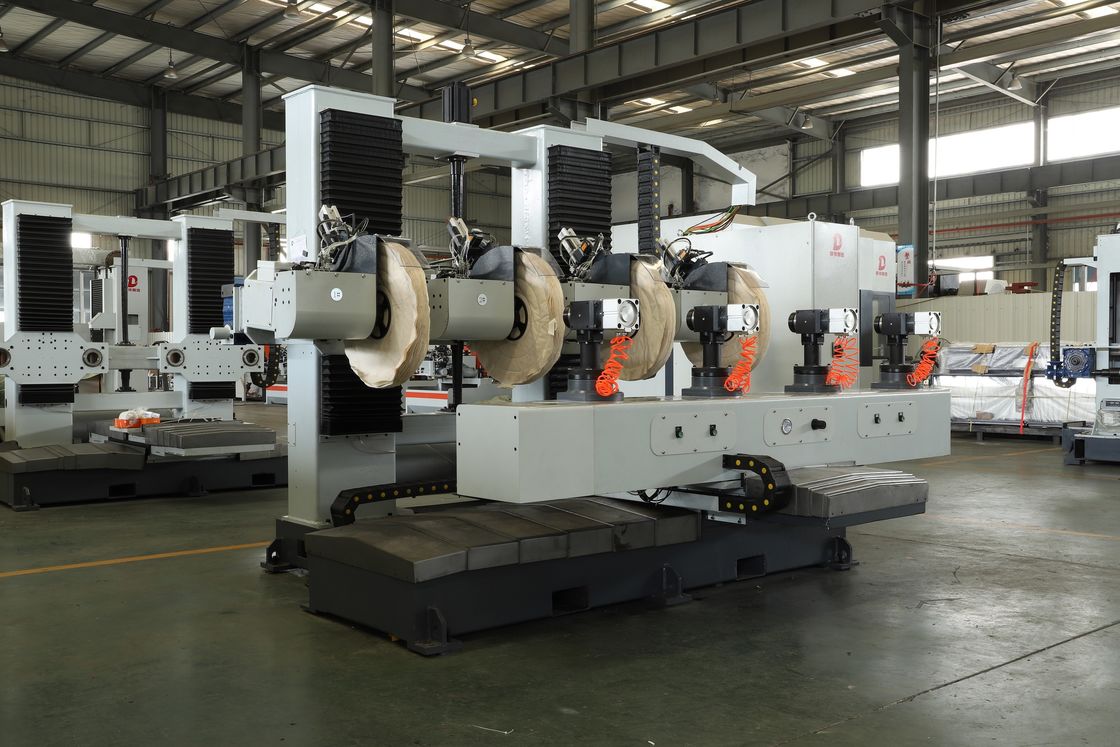

2. The machine has 4 polishing unit heads, which can polish 4 work pieces in one cycle time; Production output up to 4PCS / 30 ~ 50 seconds (depending on the product and process);
4. It is suitable for complex shape handle products, pipe products and other regular shape products.
5. Automatic compensation of cloth wheel loss.
Cloth wheel is a lossy material, which gradually wears out in the polishing process, so that the polishing effect cannot be achieved without re-adjusting the machine. Aiming at the technical problems in this industry, our company has developed a dynamic pressure compensation system to achieve the process consistency in quantitative production.
6. Easy operation, powerful function
6.1 According to the characteristics of the handle, the polishing station and fixture are combined to solve the problem of dead Angle of polishing.
6.2 Minimized manual operation, convenient operation;
6.3 Frequency conversion regulation, environmental protection and energy saving
| # | Item | Parameter | Remarks |
| 1 | Size | 4400*3400*2900(L×W×H) | Machine Cabinet Size |
| 2 | Power | 33KW | |
| 3 | Rated Voltage | 380V 50Hz | |
| 4 | Max. Polishing Mop Diameter | 600mm | |
| 5 | Min. Polishing Mop Diameter | 400mm | |
| 6 | X Axis Travel | 1100 | |
| 7 | Y Axis Travel | 900 | |
| 8 | Z Axis Travel | 700 | |
| 9 | U Axis Travel | ±60° | |
| 10 | V Axis Travel | ±360° | |
| 11 | W Axis Travel | ±360° |
|
|
